AL20L-ZHHNSW (1982)

Toyota Tercel

Production May 1982 - Aug 1984
Engine 2A
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8205-8408)5DS

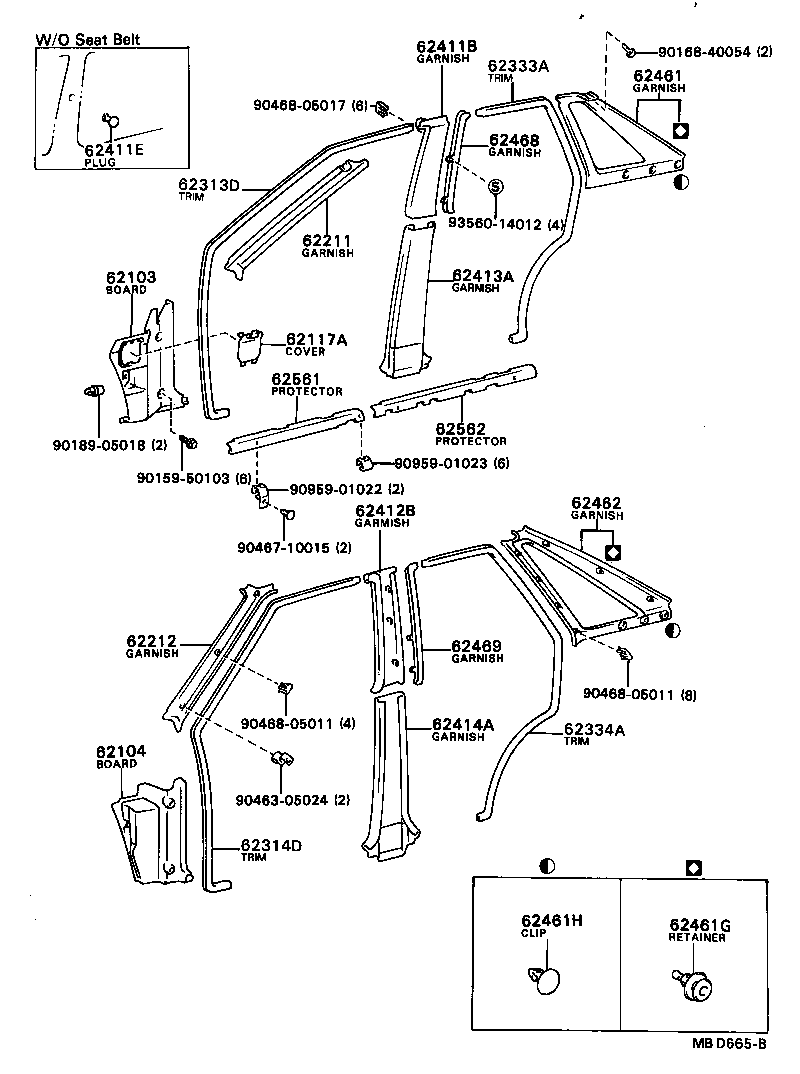

Click highlighted areas on diagram

diagram 62103 62104 62117A 62211 62212 62313D 62314D 62333A 62334A 62411B 62411E 62412B 62413A 62414A 62461 62461G 62461H 62462 62468 62469 62561 62562 9015950103 9016840054 9018905018 9046305024 9046710015 9046805011 9046805011 9046805017 9095901022 9095901023 9356014012
Part # Description Qty Price
62103 - BOARD SUB-ASSY, COWL SIDE TRIM, RH
62101-1605003

AL2#..LHD

GRAY,GRAY,TRIM1#

 1
62101-1605002

AL20,21..LHD

DARK WINE,RED/MAROON,TRIM3#

 1
62101-1605006

AL2#..LHD

BROWN,BROWN,TRIM4#

 1
62104 - BOARD SUB-ASSY, COWL SIDE TRIM, LH
62102-1605002

AL20,21..LHD

DARK WINE,RED/MAROON,TRIM3#

 1
62102-1605006

AL2#..LHD

BROWN,BROWN,TRIM4#

 1
62102-1605003

AL2#..LHD

GRAY,GRAY,TRIM1#

 1
62117A - COVER, COWL SIDE TRIM SERVICE HOLE
55545-1608006

AL2#..LHD..EUR

BROWN,BROWN,TRIM4#

 1
55545-1608002

AL20,21..LHD..EUR

DARK WINE,RED/MAROON,TRIM3#

 1
55545-1608003

AL2#..LHD..EUR

GRAY,GRAY,TRIM1#

 1
62211 - GARNISH, FRONT PILLAR, RH
62211-16020

AL2#

IVORY

 1
62212 - GARNISH, FRONT PILLAR, LH
62212-16020

AL2#

IVORY

 1
62313D - TRIM, FRONT DOOR OPENING, RH
62313-1604002

AL20,21..5DS

DARK WINE,DARK WINE,TRIM3#

 1
62313-1604006

AL25;AL20,21..5DS

BROWN,BROWN,TRIM4#

 1
62313-1604003

AL25;AL20,21..5DS

GRAY,GRAY,TRIM1#

 1
62314D - TRIM, FRONT DOOR OPENING, LH
62313-1604006

AL25;AL20,21..5DS

BROWN,BROWN,TRIM4#

 1
62313-1604003

AL25;AL20,21..5DS

GRAY,GRAY,TRIM1#

 1
62313-1604002

AL20,21..5DS

DARK WINE,DARK WINE,TRIM3#

 1
62333A - TRIM, REAR DOOR OPENING, RH
62333-1602003

AL20,21..5DS

GRAY,GRAY,TRIM1#

 1
62333-1602006

AL20,21..5DS

BROWN,BROWN,TRIM4#

 1
62333-1602002

AL20,21..5DS

DARK WINE,DARK WINE,TRIM3#

 1
62334A - TRIM, REAR DOOR OPENING, LH
62333-1602003

AL20,21..5DS

GRAY,GRAY,TRIM1#

 1
62333-1602006

AL20,21..5DS

BROWN,BROWN,TRIM4#

 1
62333-1602002

AL20,21..5DS

DARK WINE,DARK WINE,TRIM3#

 1
62411B - GARNISH, CENTER PILLAR, UPPER RH
62411-1608003

AL25;AL20,21..5DS

GRAY,GRAY,TRIM1#

 1
62411-1608002

AL20,21..5DS

DARK WINE,DARK WINE,TRIM3#

 1
62411-1608006

AL25;AL20,21..5DS

BROWN,BROWN,TRIM4#

 1
62412B - GARNISH, CENTER PILLAR, UPPER LH
62412-1608002

AL20,21..5DS

DARK WINE,DARK WINE,TRIM3#

 1
62412-1608006

AL25;AL20,21..5DS

BROWN,BROWN,TRIM4#

 1
62412-1608003

AL25;AL20,21..5DS

GRAY,GRAY,TRIM1#

 1
62413A - GARNISH, CENTER PILLAR, LOWER RH
62413-1601002

AL20,21..5DS

DARK WINE,DARK WINE,TRIM3#

 1
62413-1601006

AL25;AL20,21..5DS

BROWN,BROWN,TRIM4#

 1
62413-1601003

AL25;AL20,21..5DS

GRAY,GRAY,TRIM1#

 1
62414A - GARNISH, CENTER PILLAR, LOWER LH
62414-1601006

AL25;AL20,21..5DS

BROWN,BROWN,TRIM4#

 1
62414-1601002

AL20,21..5DS

DARK WINE,DARK WINE,TRIM3#

 1
62414-1601003

AL25;AL20,21..5DS

GRAY,GRAY,TRIM1#

 1
62461 - GARNISH, ROOF SIDE TRIM, RH
62471-16100

AL20,21..5DS..EUR

W/RR *ELR,IVORY

 1
62471-16090

AL20..5DS

IVORY

 1
62461G - RETAINER, DOOR TRIM
67771-12020

AL25;AL20,21..5DS

 6
62462 - GARNISH, ROOF SIDE TRIM, LH
62472-16090

AL20..5DS

IVORY

 1
62472-16100

AL20,21..5DS..EUR

W/RR *ELR,IVORY

 1
62468 - GARNISH, CENTER PILLAR, REAR RH
62468-1602002

AL20,21..5DS

DARK WINE,DARK WINE,TRIM3#

 1
62468-1602003

AL25;AL20,21..5DS

GRAY,GRAY,TRIM1#

 1
62468-1602006

AL25;AL20,21..5DS

BROWN,BROWN,TRIM4#

 1
62469 - GARNISH, CENTER PILLAR, REAR LH
62469-1602002

AL20,21..5DS

DARK WINE,DARK WINE,TRIM3#

 1
62469-1602003

AL25;AL20,21..5DS

GRAY,GRAY,TRIM1#

 1
62469-1602006

AL25;AL20,21..5DS

BROWN,BROWN,TRIM4#

 1
62561 - PROTECTOR, ROCKER PANEL, INNER FRONT
62562-16010

AL2#

LH

 1
62561-16010

AL2#

RH

 1
62562 - PROTECTOR, ROCKER PANEL, INNER REAR
62563-16010

AL2#

RH

 1
62564-16010

AL2#

LH

 1
Common parts
90159-50103
90168-40054
90189-05018
90463-05024
90467-10015
90468-05011
90468-05017
90959-01022
90959-01023
93560-14012
