AL20L-ZHHNSW (1982)

Toyota Tercel

Production May 1982 - Aug 1984
Engine 2A
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8205- )2A,3A

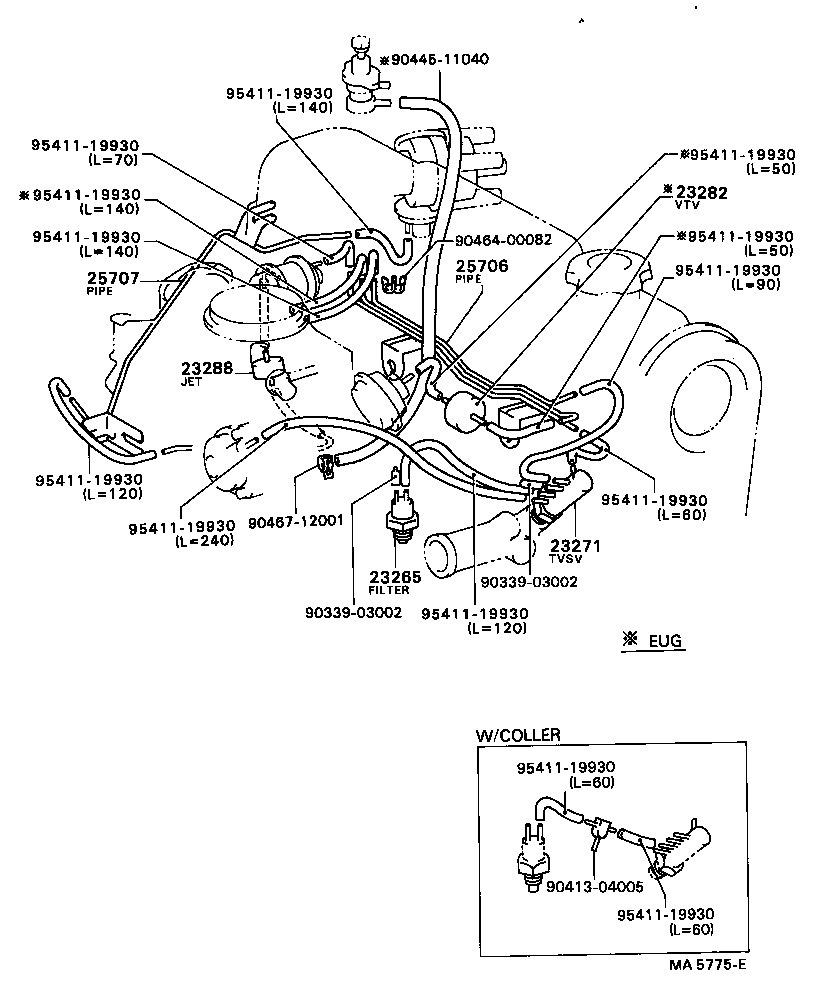

Click highlighted areas on diagram

diagram 23265 23271 23282 23288 25706 25707 9033903002 9033903002 9041304005 9044511040 9046400082 9046712001 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930
Part # Description Qty Price
23265 - FILTER, GAS, NO.1
90917-11023

2A,3A#..AL2#..ARL,EUR

 1
23271 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.1
90925-02076

2A,3A#..AL2#

 1
23282 - VALVE, VACUUM TRANSMITTING, NO.2
90925-01014

2A,3A..AL20,25..EUG

 1
23288 - JET, NO.1
90925-04003

2A,3A#..AL2#

 1
25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1
25706-14020

2A,3A..AL20,25

 1
25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2
25707-14010

2A,3A..AL20,25;3AC..AL25..ARL

 1
Common parts
90339-03002
90413-04005
90445-11040
90464-00082
90467-12001
95411-19930

(8205- )

Click highlighted areas on diagram

diagram 9541110030 9541110130 9541110160 9541119995
Part # Description Qty Price
Common parts
95411-10030
95411-10130
95411-10160
95411-19995
