AL20L-ZHHDSW (1982)
Toyota Tercel

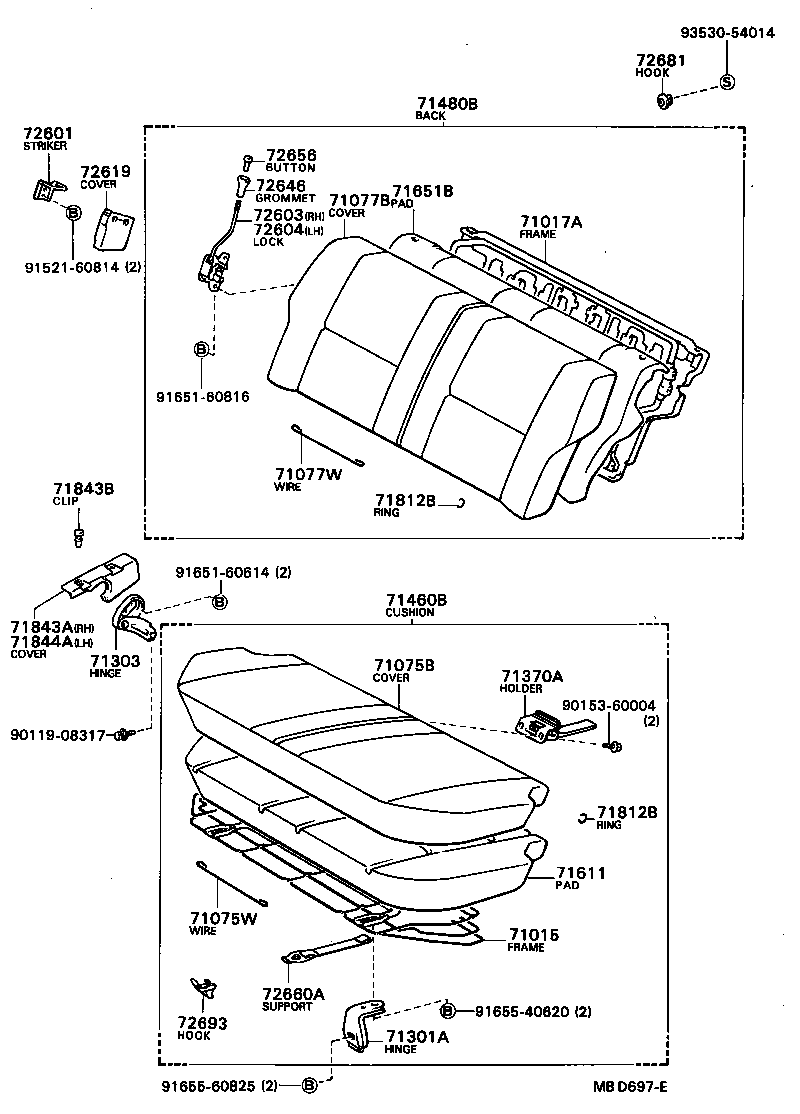

(8205-8408)AL20,21..DLX,STD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71015 - FRAME SUB-ASSY, REAR SEAT CUSHION | ||||
| 71015-16030 |
AL20,21..DLX,GL W/*FRS |
1 | ||
| 71015-12250 |
AL20,21..(DLX,STD)..EUR W/*FCRS |
1 | ||
| 71017A - FRAME SUB-ASSY, REAR SEAT BACK | ||||
| 71017-16080 |
AL20,21..DLX,STD |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71065-1602002 |
AL20,21..(DLX,STD)..EUR W/*FCRS,FB-D,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71065-1602006 |
AL20,21..(DLX,STD)..EUR W/*FCRS,FB-D,BROWN,BROWN,TRIM4# |
1 | ||
| 71075-1673006 |
AL20,21..DLX W/*FRS,FB-D,BROWN,BROWN,TRIM4# |
1 | ||
| 71075-1674002 |
AL20,21..(DLX,GL)..EUR W/*FRS,FB-B,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71075-1674003 |
AL20,21..(DLX,GL)..EUR W/*FRS,FB-B,GRAY,GRAY,TRIM1# |
1 | ||
| 71075-1673002 |
AL20,21..DLX W/*FRS,FB-D,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71075-1673003 |
AL20,21..DLX W/*FRS,FB-D,GRAY,GRAY,TRIM1# |
1 | ||
| 71075-1674006 |
AL20,21..(DLX,GL)..EUR W/*FRS,FB-B,BROWN,BROWN,TRIM4# |
1 | ||
| 71065-1602106 |
AL20,21..(DLX,STD)..EUR W/*FCRS,FB-D,BROWN,BROWN,TRIM4# |
1 | ||
| 71065-1602103 |
AL20,21..(DLX,STD)..EUR W/*FCRS,FB-D,GRAY,GRAY,TRIM1# |
1 | ||
| 71065-1602102 |
AL20,21..(DLX,STD)..EUR W/*FCRS,FB-D,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71065-1602003 |
AL20,21..(DLX,STD)..EUR W/*FCRS,FB-D,GRAY,GRAY,TRIM1# |
1 | ||
| 71075-1673103 |
AL20,21..DLX W/*FRS,FB-D,GRAY,GRAY,TRIM1# |
1 | ||
| 71075-1674106 |
AL20,21..(DLX,GL)..EUR W/*FRS,FB-B,BROWN,BROWN,TRIM4# |
1 | ||
| 71075-1673102 |
AL20,21..DLX W/*FRS,FB-D,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71065-1602203 |
AL20,21..(DLX,STD)..EUR W/*FCRS,FB-D,GRAY,GRAY,TRIM1# |
1 | ||
| 71075-1674102 |
AL20,21..(DLX,GL)..EUR W/*FRS,FB-B,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71065-1602206 |
AL20,21..(DLX,STD)..EUR W/*FCRS,FB-D,BROWN,BROWN,TRIM4# |
1 | ||
| 71065-1602202 |
AL20,21..(DLX,STD)..EUR W/*FCRS,FB-D,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71075-1673106 |
AL20,21..DLX W/*FRS,FB-D,BROWN,BROWN,TRIM4# |
1 | ||
| 71075-1674103 |
AL20,21..(DLX,GL)..EUR W/*FRS,FB-B,GRAY,GRAY,TRIM1# |
1 | ||
| 71075-1673202 |
AL20,21..DLX W/*FRS,FB-D,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71075-1673203 |
AL20,21..DLX W/*FRS,FB-D,GRAY,GRAY,TRIM1# |
1 | ||
| 71075-1673206 |
AL20,21..DLX W/*FRS,FB-D,BROWN,BROWN,TRIM4# |
1 | ||
| 71075W - WIRE, REAR SEAT CUSHION COVER | ||||
| 90580-20015 |
AL20,21 L=900 |
3 | ||
| 71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE) | ||||
| 71077-1665002 |
AL20,21..(DLX,STD)..EUR FB-D,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71077-1665006 |
AL20,21..(DLX,STD)..EUR FB-D,BROWN,BROWN,TRIM4# |
1 | ||
| 71077-1665202 |
AL20,21..(DLX,STD)..EUR FB-D,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71077-1665102 |
AL20,21..(DLX,STD)..EUR FB-D,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71077-1665103 |
AL20,21..(DLX,STD)..EUR FB-D,GRAY,GRAY,TRIM1# |
1 | ||
| 71077-1665106 |
AL20,21..(DLX,STD)..EUR FB-D,BROWN,BROWN,TRIM4# |
1 | ||
| 71077-1665003 |
AL20,21..(DLX,STD)..EUR FB-D,GRAY,GRAY,TRIM1# |
1 | ||
| 71077-1665203 |
AL20,21..(DLX,STD)..EUR FB-D,GRAY,GRAY,TRIM1# |
1 | ||
| 71077-1665206 |
AL20,21..(DLX,STD)..EUR FB-D,BROWN,BROWN,TRIM4# |
1 | ||
| 71077W - WIRE, REAR SEAT BACK COVER | ||||
| 90580-26013 |
AL20..DLX,GL L=600 |
1 | ||
| 90580-20127 |
AL20..DLX,GL L=430 |
2 | ||
| 90580-20109 |
AL20..DLX,GL L=330 |
1 | ||
| 90580-20165 |
AL20..(DLX,STD)..EUG L=470 |
2 | ||
| 90580-20165 |
AL20,21..DLX,GL L=470 |
2 | ||
| 90580-20107 |
AL20..(DLX,STD)..EUG L=1180 |
1 | ||
| 90580-20032 |
AL20,25..(DLX,GL)..(EUR,GEN) L=320 |
2 | ||
| 90580-20176 |
AL20,21..(DLX,STD)..EUR L=830 |
1 | ||
| 90580-26012 |
AL20..DLX,GL L=570 |
1 | ||
| 90580-20171 |
AL20,21..DLX,GL L=480 |
2 | ||
| 90580-26014 |
AL20,21..(DLX,STD)..EUR L=1180 |
1 | ||
| 90580-20171 |
AL20..(DLX,STD)..EUG L=480 |
2 | ||
| 90580-20021 |
AL20..DLX,GL L=440 |
2 | ||
| 90580-20032 |
AL20..DLX,GL L=320 |
2 | ||
| 71301A - HINGE SUB-ASSY, REAR SEAT CUSHION | ||||
| 71301-1601006 |
AL20,21..DLX,GL BROWN,BROWN,TRIM4# |
2 | ||
| 71301-1601003 |
AL20,21..DLX,GL GRAY,GRAY,TRIM1# |
2 | ||
| 71301-1601002 |
AL20,21..DLX,GL DARK WINE,RED/MAROON,TRIM3# |
2 | ||
| 71303 - HINGE SUB-ASSY, REAR SEAT BACK | ||||
| 71303-16010 |
AL20,21 |
2 | ||
| 71370A - HOLDER ASSY, REAR SEAT CUSHION | ||||
| 71370-1601002 |
AL20,21..DLX,GL DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71370-1601006 |
AL20,21..DLX,GL BROWN,BROWN,TRIM4# |
1 | ||
| 71370-1601003 |
AL20,21..DLX,GL GRAY,GRAY,TRIM1# |
1 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71460-1672002 |
AL20,21..DLX W/*FRS,FB-D,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71460-1687002 |
AL20,21..(DLX,GL)..EUR W/*FRS,FB-B,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71460-1687003 |
AL20,21..(DLX,GL)..EUR W/*FRS,FB-B,GRAY,GRAY,TRIM1# |
1 | ||
| 71460-1672006 |
AL20,21..DLX W/*FRS,FB-D,BROWN,BROWN,TRIM4# |
1 | ||
| 71560-1602006 |
AL20,21..(DLX,STD)..EUR W/*FCRS,FB-D,BROWN,BROWN,TRIM4# |
1 | ||
| 71460-1672003 |
AL20,21..DLX W/*FRS,FB-D,GRAY,GRAY,TRIM1# |
1 | ||
| 71460-1687006 |
AL20,21..(DLX,GL)..EUR W/*FRS,FB-B,BROWN,BROWN,TRIM4# |
1 | ||
| 71560-1602003 |
AL20,21..(DLX,STD)..EUR W/*FCRS,FB-D,GRAY,GRAY,TRIM1# |
1 | ||
| 71460-1672102 |
AL20,21..DLX W/*FRS,FB-D,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71460-1672106 |
AL20,21..DLX W/*FRS,FB-D,BROWN,BROWN,TRIM4# |
1 | ||
| 71560-1602002 |
AL20,21..(DLX,STD)..EUR W/*FCRS,FB-D,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71560-1602102 |
AL20,21..(DLX,STD)..EUR W/*FCRS,FB-D,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71560-1602103 |
AL20,21..(DLX,STD)..EUR W/*FCRS,FB-D,GRAY,GRAY,TRIM1# |
1 | ||
| 71460-1672103 |
AL20,21..DLX W/*FRS,FB-D,GRAY,GRAY,TRIM1# |
1 | ||
| 71560-1602106 |
AL20,21..(DLX,STD)..EUR W/*FCRS,FB-D,BROWN,BROWN,TRIM4# |
1 | ||
| 71460-1672202 |
AL20,21..DLX W/*FRS,FB-D,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71460-1687102 |
AL20,21..(DLX,GL)..EUR W/*FRS,FB-B,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71460-1687106 |
AL20,21..(DLX,GL)..EUR W/*FRS,FB-B,BROWN,BROWN,TRIM4# |
1 | ||
| 71460-1672203 |
AL20,21..DLX W/*FRS,FB-D,GRAY,GRAY,TRIM1# |
1 | ||
| 71560-1607006 |
AL20..LHD..DLX..EUG *FS,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71560-1607003 |
AL20..LHD..DLX..EUG *FS,FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71460-1687103 |
AL20,21..(DLX,GL)..EUR W/*FRS,FB-B,GRAY,GRAY,TRIM1# |
1 | ||
| 71560-1607002 |
AL20..LHD..DLX..EUG *FS,FB,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71460-1672206 |
AL20,21..DLX W/*FRS,FB-D,BROWN,BROWN,TRIM4# |
1 | ||
| 71560-1602203 |
AL20,21..(DLX,STD)..EUR W/*FCRS,FB-D,GRAY,GRAY,TRIM1# |
1 | ||
| 71560-1602202 |
AL20,21..(DLX,STD)..EUR W/*FCRS,FB-D,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71560-1602206 |
AL20,21..(DLX,STD)..EUR W/*FCRS,FB-D,BROWN,BROWN,TRIM4# |
1 | ||
| 71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71480-1658003 |
AL20,21..(DLX,STD)..EUR FB-D,GRAY,GRAY,TRIM1# |
1 | ||
| 71480-1658006 |
AL20,21..(DLX,STD)..EUR FB-D,BROWN,BROWN,TRIM4# |
1 | ||
| 71480-1658102 |
AL20,21..(DLX,STD)..EUR FB-D,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71480-1658002 |
AL20,21..(DLX,STD)..EUR FB-D,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71480-1658106 |
AL20,21..(DLX,STD)..EUR FB-D,BROWN,BROWN,TRIM4# |
1 | ||
| 71480-1658103 |
AL20,21..(DLX,STD)..EUR FB-D,GRAY,GRAY,TRIM1# |
1 | ||
| 71480-1658206 |
AL20,21..(DLX,STD)..EUR FB-D,BROWN,BROWN,TRIM4# |
1 | ||
| 71480-1658202 |
AL20,21..(DLX,STD)..EUR FB-D,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71480-1658203 |
AL20,21..(DLX,STD)..EUR FB-D,GRAY,GRAY,TRIM1# |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71611-16100 |
AL20..LHD..(DLX,STD)..EUG *FS |
1 | ||
| 71611-16050 |
AL20,21 |
1 | ||
| 71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE) | ||||
| 71651-16090 |
AL20,21..DLX,STD |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
AL2# |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
AL2# |
1 | ||
| 71843A - COVER, REAR SEAT RECLINING, NO.2 RH | ||||
| 71843-1602003 |
AL20,21 GRAY,GRAY,TRIM1# |
1 | ||
| 71843-1602006 |
AL20,21 BROWN,BROWN,TRIM4# |
1 | ||
| 71843-1602002 |
AL20,21 DARK WINE,DARK WINE,TRIM3# |
1 | ||
| 71843B - CLIP, REAR SEAT RECLINING COVER | ||||
| 90467-0914402 |
AL20,21 DARK WINE,RED/MAROON,TRIM3# |
4 | ||
| 90467-0914403 |
AL20,21 GRAY,GRAY,TRIM1# |
4 | ||
| 90467-0914406 |
AL20,21 BROWN,BROWN,TRIM4# |
4 | ||
| 71844A - COVER, REAR SEAT RECLINING, NO.2 LH | ||||
| 71844-1602003 |
AL20,21 GRAY,GRAY,TRIM1# |
1 | ||
| 71844-1602002 |
AL20,21 DARK WINE,DARK WINE,TRIM3# |
1 | ||
| 71844-1602006 |
AL20,21 BROWN,BROWN,TRIM4# |
1 | ||
| 72601 - STRIKER SUB-ASSY, REAR SEAT LOCK | ||||
| 72601-16040 |
AL20,21 |
2 | ||
| 72603 - LOCK SUB-ASSY, REAR SEAT BACK, RH | ||||
| 72630-16060 |
AL20,21 |
1 | ||
| 72604 - LOCK SUB-ASSY, REAR SEAT BACK, LH | ||||
| 72640-16040 |
AL20,21 |
1 | ||
| 72619 - COVER, REAR SEAT BACK LOCK STRIKER | ||||
| 72616-1601003 |
AL20,21 LH,GRAY,GRAY,TRIM1# |
1 | ||
| 72615-1602002 |
AL20,21 RH,DARK WINE,DARK WINE,TRIM3# |
1 | ||
| 72616-1601002 |
AL20,21 LH,DARK WINE,DARK WINE,TRIM3# |
1 | ||
| 72615-1602006 |
AL20,21 RH,BROWN,BROWN,TRIM4# |
1 | ||
| 72615-1602003 |
AL20,21 RH,GRAY,GRAY,TRIM1# |
1 | ||
| 72616-1601006 |
AL20,21 LH,BROWN,BROWN,TRIM4# |
1 | ||
| 72646 - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72655-2002003 |
AL2# GRAY,GRAY,TRIM1# |
2 | ||
| 72655-2002002 |
AL20,21 DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 72655-2002036 |
AL2# BROWN,BROWN,TRIM4# |
2 | ||
| 72656 - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72656-2001002 |
AL20,21 DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 72656-2001036 |
AL2# BROWN,BROWN,TRIM4# |
2 | ||
| 72656-2001003 |
AL2# GRAY,GRAY,TRIM1# |
2 | ||
| 72660A - SUPPORT ASSY, REAR SEAT CUSHION | ||||
| 72660-1601002 |
AL20,21..DLX,GL DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 72660-1601003 |
AL20,21..DLX,GL GRAY,GRAY,TRIM1# |
1 | ||
| 72660-1601006 |
AL20,21..DLX,GL BROWN,BROWN,TRIM4# |
1 | ||
| 72681 - HOOK, REAR SEAT BACK LOCK, LOWER | ||||
| 72681-1601003 |
AL20,21 GRAY,GRAY,TRIM1# |
1 | ||
| 72681-1601006 |
AL20,21 BROWN,BROWN,TRIM4# |
1 | ||
| 72681-1601002 |
AL20,21 DARK WINE,DARK WINE,TRIM3# |
1 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-16010 |
AL20,21..(DLX,STD)..EUR |
2 | ||
| Common parts | ||||
| 90119-08317 | ||||
| 90153-60004 | ||||
| 91521-60814 | ||||
| 91651-60614 | ||||
| 91651-60816 | ||||
| 91655-40620 | ||||
| 91655-60825 | ||||
| 93530-54014 | ||||

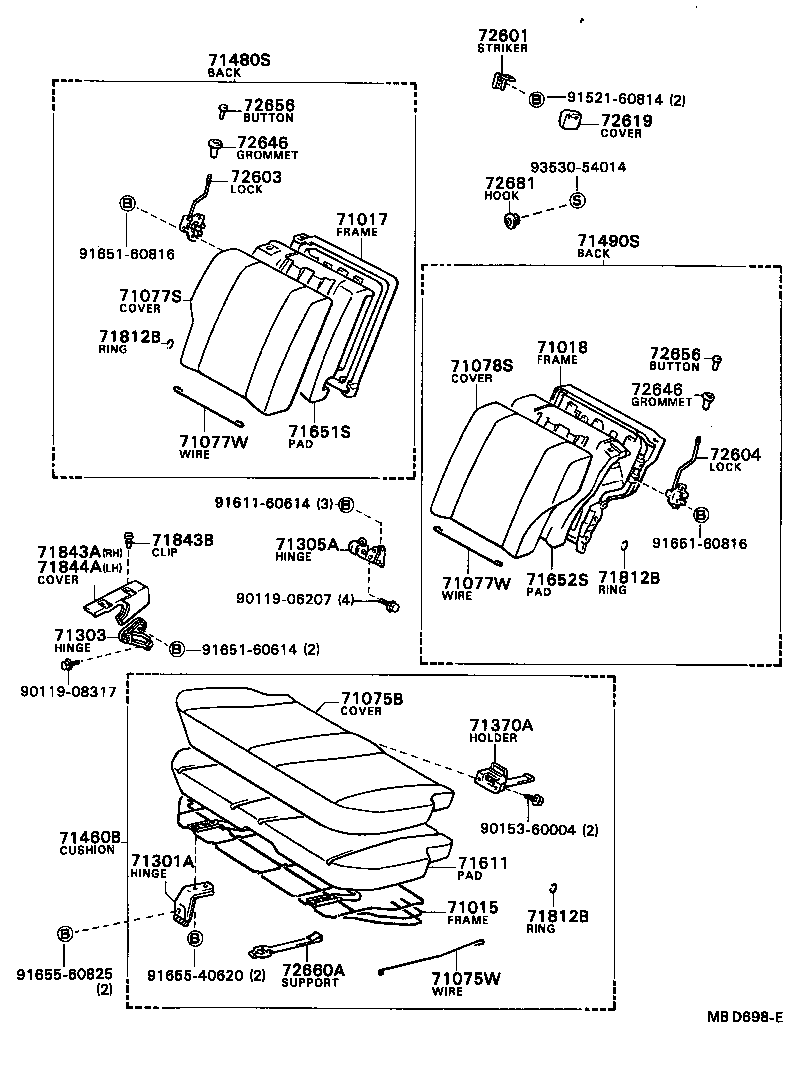

(8205-8408)AL20,21..DLX,GL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71015 - FRAME SUB-ASSY, REAR SEAT CUSHION | ||||
| 71015-16030 |
AL20,21..DLX,GL W/*FRS |
1 | ||
| 71015-12250 |
AL20,21..(DLX,STD)..EUR W/*FCRS |
1 | ||
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-16030 |
AL20,21..DLX,GL |
1 | ||
| 71017-12250 |
AL20,21..DLX,GL |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-12040 |
AL20,21..DLX,GL |
1 | ||
| 71018-16030 |
AL20,21..DLX,GL |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71065-1602002 |
AL20,21..(DLX,STD)..EUR W/*FCRS,FB-D,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71065-1602006 |
AL20,21..(DLX,STD)..EUR W/*FCRS,FB-D,BROWN,BROWN,TRIM4# |
1 | ||
| 71075-1673006 |
AL20,21..DLX W/*FRS,FB-D,BROWN,BROWN,TRIM4# |
1 | ||
| 71075-1674002 |
AL20,21..(DLX,GL)..EUR W/*FRS,FB-B,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71075-1674003 |
AL20,21..(DLX,GL)..EUR W/*FRS,FB-B,GRAY,GRAY,TRIM1# |
1 | ||
| 71075-1673002 |
AL20,21..DLX W/*FRS,FB-D,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71075-1673003 |
AL20,21..DLX W/*FRS,FB-D,GRAY,GRAY,TRIM1# |
1 | ||
| 71075-1674006 |
AL20,21..(DLX,GL)..EUR W/*FRS,FB-B,BROWN,BROWN,TRIM4# |
1 | ||
| 71065-1602106 |
AL20,21..(DLX,STD)..EUR W/*FCRS,FB-D,BROWN,BROWN,TRIM4# |
1 | ||
| 71065-1602103 |
AL20,21..(DLX,STD)..EUR W/*FCRS,FB-D,GRAY,GRAY,TRIM1# |
1 | ||
| 71065-1602102 |
AL20,21..(DLX,STD)..EUR W/*FCRS,FB-D,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71065-1602003 |
AL20,21..(DLX,STD)..EUR W/*FCRS,FB-D,GRAY,GRAY,TRIM1# |
1 | ||
| 71075-1673103 |
AL20,21..DLX W/*FRS,FB-D,GRAY,GRAY,TRIM1# |
1 | ||
| 71075-1674106 |
AL20,21..(DLX,GL)..EUR W/*FRS,FB-B,BROWN,BROWN,TRIM4# |
1 | ||
| 71075-1673102 |
AL20,21..DLX W/*FRS,FB-D,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71065-1602203 |
AL20,21..(DLX,STD)..EUR W/*FCRS,FB-D,GRAY,GRAY,TRIM1# |
1 | ||
| 71075-1674102 |
AL20,21..(DLX,GL)..EUR W/*FRS,FB-B,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71065-1602206 |
AL20,21..(DLX,STD)..EUR W/*FCRS,FB-D,BROWN,BROWN,TRIM4# |
1 | ||
| 71065-1602202 |
AL20,21..(DLX,STD)..EUR W/*FCRS,FB-D,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71075-1673106 |
AL20,21..DLX W/*FRS,FB-D,BROWN,BROWN,TRIM4# |
1 | ||
| 71075-1674103 |
AL20,21..(DLX,GL)..EUR W/*FRS,FB-B,GRAY,GRAY,TRIM1# |
1 | ||
| 71075-1673202 |
AL20,21..DLX W/*FRS,FB-D,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71075-1673203 |
AL20,21..DLX W/*FRS,FB-D,GRAY,GRAY,TRIM1# |
1 | ||
| 71075-1673206 |
AL20,21..DLX W/*FRS,FB-D,BROWN,BROWN,TRIM4# |
1 | ||
| 71075W - WIRE, REAR SEAT CUSHION COVER | ||||
| 90580-20015 |
AL20,21 L=900 |
3 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-1663002 |
AL20,21..DLX FB-D,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71077-1663003 |
AL20,21..DLX FB-D,GRAY,GRAY,TRIM1# |
1 | ||
| 71077-1664002 |
AL20,21..(DLX,GL)..EUR FB-B,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71077-1663102 |
AL20,21..DLX FB-D,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71077-1663006 |
AL20,21..DLX FB-D,BROWN,BROWN,TRIM4# |
1 | ||
| 71077-1664003 |
AL20,21..(DLX,GL)..EUR FB-B,GRAY,GRAY,TRIM1# |
1 | ||
| 71077-1664006 |
AL20,21..(DLX,GL)..EUR FB-B,BROWN,BROWN,TRIM4# |
1 | ||
| 71077-1663106 |
AL20,21..DLX FB-D,BROWN,BROWN,TRIM4# |
1 | ||
| 71077-1664106 |
AL20,21..(DLX,GL)..EUR FB-B,BROWN,BROWN,TRIM4# |
1 | ||
| 71077-1663206 |
AL20,21..DLX FB-D,BROWN,BROWN,TRIM4# |
1 | ||
| 71077-1663103 |
AL20,21..DLX FB-D,GRAY,GRAY,TRIM1# |
1 | ||
| 71077-1663203 |
AL20,21..DLX FB-D,GRAY,GRAY,TRIM1# |
1 | ||
| 71077-1664102 |
AL20,21..(DLX,GL)..EUR FB-B,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71077-1664103 |
AL20,21..(DLX,GL)..EUR FB-B,GRAY,GRAY,TRIM1# |
1 | ||
| 71077-1663202 |
AL20,21..DLX FB-D,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71077W - WIRE, REAR SEAT BACK COVER | ||||
| 90580-26013 |
AL20..DLX,GL L=600 |
1 | ||
| 90580-20127 |
AL20..DLX,GL L=430 |
2 | ||
| 90580-20109 |
AL20..DLX,GL L=330 |
1 | ||
| 90580-20165 |
AL20..(DLX,STD)..EUG L=470 |
2 | ||
| 90580-20165 |
AL20,21..DLX,GL L=470 |
2 | ||
| 90580-20107 |
AL20..(DLX,STD)..EUG L=1180 |
1 | ||
| 90580-20032 |
AL20,25..(DLX,GL)..(EUR,GEN) L=320 |
2 | ||
| 90580-20176 |
AL20,21..(DLX,STD)..EUR L=830 |
1 | ||
| 90580-26012 |
AL20..DLX,GL L=570 |
1 | ||
| 90580-20171 |
AL20,21..DLX,GL L=480 |
2 | ||
| 90580-26014 |
AL20,21..(DLX,STD)..EUR L=1180 |
1 | ||
| 90580-20171 |
AL20..(DLX,STD)..EUG L=480 |
2 | ||
| 90580-20021 |
AL20..DLX,GL L=440 |
2 | ||
| 90580-20032 |
AL20..DLX,GL L=320 |
2 | ||
| 71077W - WIRE, REAR SEAT BACK COVER | ||||
| 90580-26013 |
AL20..DLX,GL L=600 |
1 | ||
| 90580-20127 |
AL20..DLX,GL L=430 |
2 | ||
| 90580-20109 |
AL20..DLX,GL L=330 |
1 | ||
| 90580-20165 |
AL20..(DLX,STD)..EUG L=470 |
2 | ||
| 90580-20165 |
AL20,21..DLX,GL L=470 |
2 | ||
| 90580-20107 |
AL20..(DLX,STD)..EUG L=1180 |
1 | ||
| 90580-20032 |
AL20,25..(DLX,GL)..(EUR,GEN) L=320 |
2 | ||
| 90580-20176 |
AL20,21..(DLX,STD)..EUR L=830 |
1 | ||
| 90580-26012 |
AL20..DLX,GL L=570 |
1 | ||
| 90580-20171 |
AL20,21..DLX,GL L=480 |
2 | ||
| 90580-26014 |
AL20,21..(DLX,STD)..EUR L=1180 |
1 | ||
| 90580-20171 |
AL20..(DLX,STD)..EUG L=480 |
2 | ||
| 90580-20021 |
AL20..DLX,GL L=440 |
2 | ||
| 90580-20032 |
AL20..DLX,GL L=320 |
2 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-1645002 |
AL20,21..DLX FB-D,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71078-1645003 |
AL20,21..DLX FB-D,GRAY,GRAY,TRIM1# |
1 | ||
| 71078-1646002 |
AL20,21..(DLX,GL)..EUR FB-B,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71078-1646006 |
AL20,21..(DLX,GL)..EUR FB-B,BROWN,BROWN,TRIM4# |
1 | ||
| 71078-1646003 |
AL20,21..(DLX,GL)..EUR FB-B,GRAY,GRAY,TRIM1# |
1 | ||
| 71078-1645102 |
AL20,21..DLX FB-D,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71078-1645106 |
AL20,21..DLX FB-D,BROWN,BROWN,TRIM4# |
1 | ||
| 71078-1646102 |
AL20,21..(DLX,GL)..EUR FB-B,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71078-1645202 |
AL20,21..DLX FB-D,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71078-1645103 |
AL20,21..DLX FB-D,GRAY,GRAY,TRIM1# |
1 | ||
| 71078-1645006 |
AL20,21..DLX FB-D,BROWN,BROWN,TRIM4# |
1 | ||
| 71078-1646103 |
AL20,21..(DLX,GL)..EUR FB-B,GRAY,GRAY,TRIM1# |
1 | ||
| 71078-1646106 |
AL20,21..(DLX,GL)..EUR FB-B,BROWN,BROWN,TRIM4# |
1 | ||
| 71078-1645206 |
AL20,21..DLX FB-D,BROWN,BROWN,TRIM4# |
1 | ||
| 71078-1645203 |
AL20,21..DLX FB-D,GRAY,GRAY,TRIM1# |
1 | ||
| 71301A - HINGE SUB-ASSY, REAR SEAT CUSHION | ||||
| 71301-1601006 |
AL20,21..DLX,GL BROWN,BROWN,TRIM4# |
2 | ||
| 71301-1601003 |
AL20,21..DLX,GL GRAY,GRAY,TRIM1# |
2 | ||
| 71301-1601002 |
AL20,21..DLX,GL DARK WINE,RED/MAROON,TRIM3# |
2 | ||
| 71303 - HINGE SUB-ASSY, REAR SEAT BACK | ||||
| 71303-16010 |
AL20,21 |
2 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-16020 |
AL20,21..DLX,GL |
1 | ||
| 71370A - HOLDER ASSY, REAR SEAT CUSHION | ||||
| 71370-1601002 |
AL20,21..DLX,GL DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71370-1601006 |
AL20,21..DLX,GL BROWN,BROWN,TRIM4# |
1 | ||
| 71370-1601003 |
AL20,21..DLX,GL GRAY,GRAY,TRIM1# |
1 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71460-1672002 |
AL20,21..DLX W/*FRS,FB-D,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71460-1687002 |
AL20,21..(DLX,GL)..EUR W/*FRS,FB-B,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71460-1687003 |
AL20,21..(DLX,GL)..EUR W/*FRS,FB-B,GRAY,GRAY,TRIM1# |
1 | ||
| 71460-1672006 |
AL20,21..DLX W/*FRS,FB-D,BROWN,BROWN,TRIM4# |
1 | ||
| 71560-1602006 |
AL20,21..(DLX,STD)..EUR W/*FCRS,FB-D,BROWN,BROWN,TRIM4# |
1 | ||
| 71460-1672003 |
AL20,21..DLX W/*FRS,FB-D,GRAY,GRAY,TRIM1# |
1 | ||
| 71460-1687006 |
AL20,21..(DLX,GL)..EUR W/*FRS,FB-B,BROWN,BROWN,TRIM4# |
1 | ||
| 71560-1602003 |
AL20,21..(DLX,STD)..EUR W/*FCRS,FB-D,GRAY,GRAY,TRIM1# |
1 | ||
| 71460-1672102 |
AL20,21..DLX W/*FRS,FB-D,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71460-1672106 |
AL20,21..DLX W/*FRS,FB-D,BROWN,BROWN,TRIM4# |
1 | ||
| 71560-1602002 |
AL20,21..(DLX,STD)..EUR W/*FCRS,FB-D,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71560-1602102 |
AL20,21..(DLX,STD)..EUR W/*FCRS,FB-D,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71560-1602103 |
AL20,21..(DLX,STD)..EUR W/*FCRS,FB-D,GRAY,GRAY,TRIM1# |
1 | ||
| 71460-1672103 |
AL20,21..DLX W/*FRS,FB-D,GRAY,GRAY,TRIM1# |
1 | ||
| 71560-1602106 |
AL20,21..(DLX,STD)..EUR W/*FCRS,FB-D,BROWN,BROWN,TRIM4# |
1 | ||
| 71460-1672202 |
AL20,21..DLX W/*FRS,FB-D,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71460-1687102 |
AL20,21..(DLX,GL)..EUR W/*FRS,FB-B,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71460-1687106 |
AL20,21..(DLX,GL)..EUR W/*FRS,FB-B,BROWN,BROWN,TRIM4# |
1 | ||
| 71460-1672203 |
AL20,21..DLX W/*FRS,FB-D,GRAY,GRAY,TRIM1# |
1 | ||
| 71560-1607006 |
AL20..LHD..DLX..EUG *FS,FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71560-1607003 |
AL20..LHD..DLX..EUG *FS,FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71460-1687103 |
AL20,21..(DLX,GL)..EUR W/*FRS,FB-B,GRAY,GRAY,TRIM1# |
1 | ||
| 71560-1607002 |
AL20..LHD..DLX..EUG *FS,FB,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71460-1672206 |
AL20,21..DLX W/*FRS,FB-D,BROWN,BROWN,TRIM4# |
1 | ||
| 71560-1602203 |
AL20,21..(DLX,STD)..EUR W/*FCRS,FB-D,GRAY,GRAY,TRIM1# |
1 | ||
| 71560-1602202 |
AL20,21..(DLX,STD)..EUR W/*FCRS,FB-D,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71560-1602206 |
AL20,21..(DLX,STD)..EUR W/*FCRS,FB-D,BROWN,BROWN,TRIM4# |
1 | ||
| 71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE) | ||||
| 71480-1655006 |
AL20,21..DLX FB-D,BROWN,BROWN,TRIM4# |
1 | ||
| 71480-1674006 |
AL20,21..(DLX,GL)..EUR FB-B,BROWN,BROWN,TRIM4# |
1 | ||
| 71480-1655002 |
AL20,21..DLX FB-D,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71480-1674003 |
AL20,21..(DLX,GL)..EUR FB-B,GRAY,GRAY,TRIM1# |
1 | ||
| 71480-1674002 |
AL20,21..(DLX,GL)..EUR FB-B,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71480-1655003 |
AL20,21..DLX FB-D,GRAY,GRAY,TRIM1# |
1 | ||
| 71480-1674103 |
AL20,21..(DLX,GL)..EUR FB-B,GRAY,GRAY,TRIM1# |
1 | ||
| 71480-1655106 |
AL20,21..DLX FB-D,BROWN,BROWN,TRIM4# |
1 | ||
| 71480-1655103 |
AL20,21..DLX FB-D,GRAY,GRAY,TRIM1# |
1 | ||
| 71480-1655202 |
AL20,21..DLX FB-D,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71480-1655206 |
AL20,21..DLX FB-D,BROWN,BROWN,TRIM4# |
1 | ||
| 71480-1655102 |
AL20,21..DLX FB-D,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71480-1655203 |
AL20,21..DLX FB-D,GRAY,GRAY,TRIM1# |
1 | ||
| 71480-1674106 |
AL20,21..(DLX,GL)..EUR FB-B,BROWN,BROWN,TRIM4# |
1 | ||
| 71480-1674102 |
AL20,21..(DLX,GL)..EUR FB-B,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71490-1641003 |
AL20,21..DLX FB-D,GRAY,GRAY,TRIM1# |
1 | ||
| 71490-1641002 |
AL20,21..DLX FB-D,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71490-1641006 |
AL20,21..DLX FB-D,BROWN,BROWN,TRIM4# |
1 | ||
| 71490-1655002 |
AL20,21..(DLX,GL)..EUR FB-B,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71490-1655006 |
AL20,21..(DLX,GL)..EUR FB-B,BROWN,BROWN,TRIM4# |
1 | ||
| 71490-1641102 |
AL20,21..DLX FB-D,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71490-1655003 |
AL20,21..(DLX,GL)..EUR FB-B,GRAY,GRAY,TRIM1# |
1 | ||
| 71490-1641103 |
AL20,21..DLX FB-D,GRAY,GRAY,TRIM1# |
1 | ||
| 71490-1655102 |
AL20,21..(DLX,GL)..EUR FB-B,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71490-1655103 |
AL20,21..(DLX,GL)..EUR FB-B,GRAY,GRAY,TRIM1# |
1 | ||
| 71490-1641203 |
AL20,21..DLX FB-D,GRAY,GRAY,TRIM1# |
1 | ||
| 71490-1641106 |
AL20,21..DLX FB-D,BROWN,BROWN,TRIM4# |
1 | ||
| 71490-1655106 |
AL20,21..(DLX,GL)..EUR FB-B,BROWN,BROWN,TRIM4# |
1 | ||
| 71490-1641202 |
AL20,21..DLX FB-D,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71490-1641206 |
AL20,21..DLX FB-D,BROWN,BROWN,TRIM4# |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71611-16100 |
AL20..LHD..(DLX,STD)..EUG *FS |
1 | ||
| 71611-16050 |
AL20,21 |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-16080 |
AL20,21..DLX,GL |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-16040 |
AL20,21..DLX,GL |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
AL2# |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
AL2# |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
AL2# |
1 | ||
| 71843A - COVER, REAR SEAT RECLINING, NO.2 RH | ||||
| 71843-1602003 |
AL20,21 GRAY,GRAY,TRIM1# |
1 | ||
| 71843-1602006 |
AL20,21 BROWN,BROWN,TRIM4# |
1 | ||
| 71843-1602002 |
AL20,21 DARK WINE,DARK WINE,TRIM3# |
1 | ||
| 71843B - CLIP, REAR SEAT RECLINING COVER | ||||
| 90467-0914402 |
AL20,21 DARK WINE,RED/MAROON,TRIM3# |
4 | ||
| 90467-0914403 |
AL20,21 GRAY,GRAY,TRIM1# |
4 | ||
| 90467-0914406 |
AL20,21 BROWN,BROWN,TRIM4# |
4 | ||
| 71844A - COVER, REAR SEAT RECLINING, NO.2 LH | ||||
| 71844-1602003 |
AL20,21 GRAY,GRAY,TRIM1# |
1 | ||
| 71844-1602002 |
AL20,21 DARK WINE,DARK WINE,TRIM3# |
1 | ||
| 71844-1602006 |
AL20,21 BROWN,BROWN,TRIM4# |
1 | ||
| 72601 - STRIKER SUB-ASSY, REAR SEAT LOCK | ||||
| 72601-16040 |
AL20,21 |
2 | ||
| 72603 - LOCK SUB-ASSY, REAR SEAT BACK, RH | ||||
| 72630-16060 |
AL20,21 |
1 | ||
| 72604 - LOCK SUB-ASSY, REAR SEAT BACK, LH | ||||
| 72640-16040 |
AL20,21 |
1 | ||
| 72619 - COVER, REAR SEAT BACK LOCK STRIKER | ||||
| 72616-1601003 |
AL20,21 LH,GRAY,GRAY,TRIM1# |
1 | ||
| 72615-1602002 |
AL20,21 RH,DARK WINE,DARK WINE,TRIM3# |
1 | ||
| 72616-1601002 |
AL20,21 LH,DARK WINE,DARK WINE,TRIM3# |
1 | ||
| 72615-1602006 |
AL20,21 RH,BROWN,BROWN,TRIM4# |
1 | ||
| 72615-1602003 |
AL20,21 RH,GRAY,GRAY,TRIM1# |
1 | ||
| 72616-1601006 |
AL20,21 LH,BROWN,BROWN,TRIM4# |
1 | ||
| 72646 - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72655-2002003 |
AL2# GRAY,GRAY,TRIM1# |
2 | ||
| 72655-2002002 |
AL20,21 DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 72655-2002036 |
AL2# BROWN,BROWN,TRIM4# |
2 | ||
| 72646 - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72655-2002003 |
AL2# GRAY,GRAY,TRIM1# |
2 | ||
| 72655-2002002 |
AL20,21 DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 72655-2002036 |
AL2# BROWN,BROWN,TRIM4# |
2 | ||
| 72656 - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72656-2001002 |
AL20,21 DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 72656-2001036 |
AL2# BROWN,BROWN,TRIM4# |
2 | ||
| 72656-2001003 |
AL2# GRAY,GRAY,TRIM1# |
2 | ||
| 72656 - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72656-2001002 |
AL20,21 DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 72656-2001036 |
AL2# BROWN,BROWN,TRIM4# |
2 | ||
| 72656-2001003 |
AL2# GRAY,GRAY,TRIM1# |
2 | ||
| 72660A - SUPPORT ASSY, REAR SEAT CUSHION | ||||
| 72660-1601002 |
AL20,21..DLX,GL DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 72660-1601003 |
AL20,21..DLX,GL GRAY,GRAY,TRIM1# |
1 | ||
| 72660-1601006 |
AL20,21..DLX,GL BROWN,BROWN,TRIM4# |
1 | ||
| 72681 - HOOK, REAR SEAT BACK LOCK, LOWER | ||||
| 72681-1601003 |
AL20,21 GRAY,GRAY,TRIM1# |
1 | ||
| 72681-1601006 |
AL20,21 BROWN,BROWN,TRIM4# |
1 | ||
| 72681-1601002 |
AL20,21 DARK WINE,DARK WINE,TRIM3# |
1 | ||
| Common parts | ||||
| 90119-06207 | ||||
| 90119-08317 | ||||
| 90153-60004 | ||||
| 91521-60814 | ||||
| 91611-60614 | ||||
| 91651-60614 | ||||
| 91651-60816 | ||||
| 91655-40620 | ||||
| 91655-60825 | ||||
| 93530-54014 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
