AL20L-ZHHDS (1982)

Toyota Tercel

Production May 1982 - Aug 1984
Engine 2A
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8205- )5DS ; (8205- )AL25

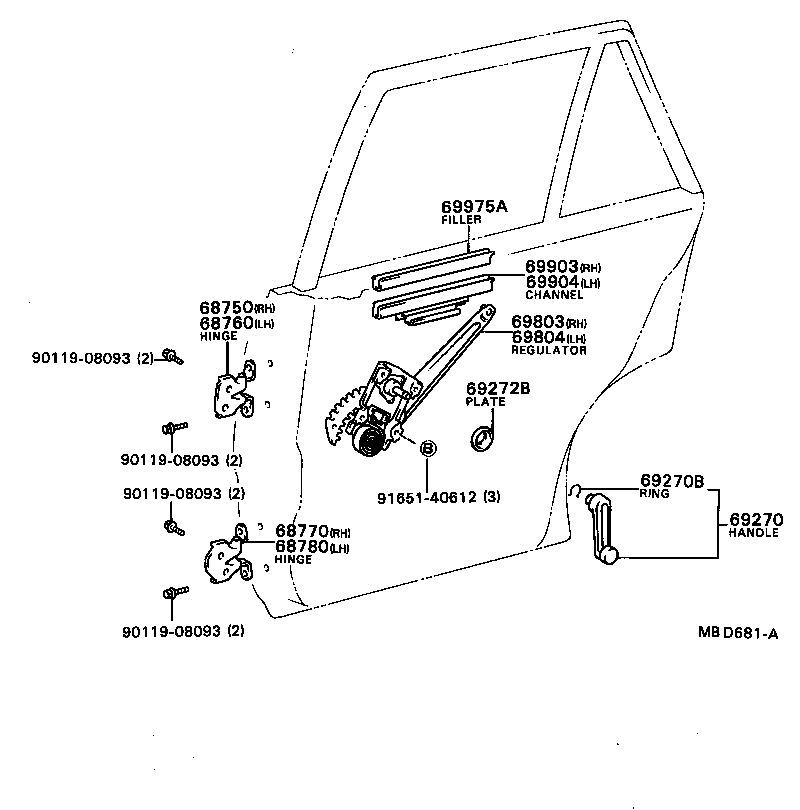

Click highlighted areas on diagram

diagram 68750 68760 68770 68780 69270 69270B 69272B 69803 69804 69903 69904 69975A 9011908093 9011908093 9011908093 9011908093 9165140612
Part # Description Qty Price
68750 - HINGE ASSY, REAR DOOR, UPPER RH
68750-32010

AL25;AL20,21..5DS

 1
68760 - HINGE ASSY, REAR DOOR, UPPER LH
68760-32010

AL25;AL20,21..5DS

 1
68770 - HINGE ASSY, REAR DOOR, LOWER RH
68770-32010

AL25;AL20,21..5DS

 1
68780 - HINGE ASSY, REAR DOOR, LOWER LH
68780-32010

AL25;AL20,21..5DS

 1
69270 - HANDLE ASSY, REAR DOOR WINDOW REGULATOR
69260-1402013

AL25..ARL,GEN;AL20..5DS..GEN

GRAY,GRAY,TRIM1#

 2
69260-1402002

AL20..5DS..GEN

DARK WINE,RED/MAROON,TRIM3#

 2
69260-1402016

AL25..ARL,GEN;AL20..5DS..GEN

BROWN,BROWN,TRIM4#

 2
69270B - RING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)
90520-01002

AL25;AL20,21..5DS

 2
69272B - PLATE, REAR DOOR REGULATOR INSIDE HANDLE
69268-16010

AL25;AL20,21..5DS

 2
69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69830-16020

AL25;AL20,21..5DS

 1
69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69840-16020

AL25;AL20,21..5DS

 1
69903 - CHANNEL SUB-ASSY, REAR DOOR GLASS, RH
69905-16020

AL25;AL20,21..5DS

 1
69904 - CHANNEL SUB-ASSY, REAR DOOR GLASS, LH
69906-16010

AL25;AL20,21..5DS

 1
69975A - FILLER, REAR DOOR GLASS CHANNEL
69975-22020

AL25;AL20,21..5DS

 1
Common parts
90119-08093
91651-40612
