AL20L-ZHHDS (1982)

Toyota Tercel

Production May 1982 - Aug 1984
Engine 2A
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8205- )

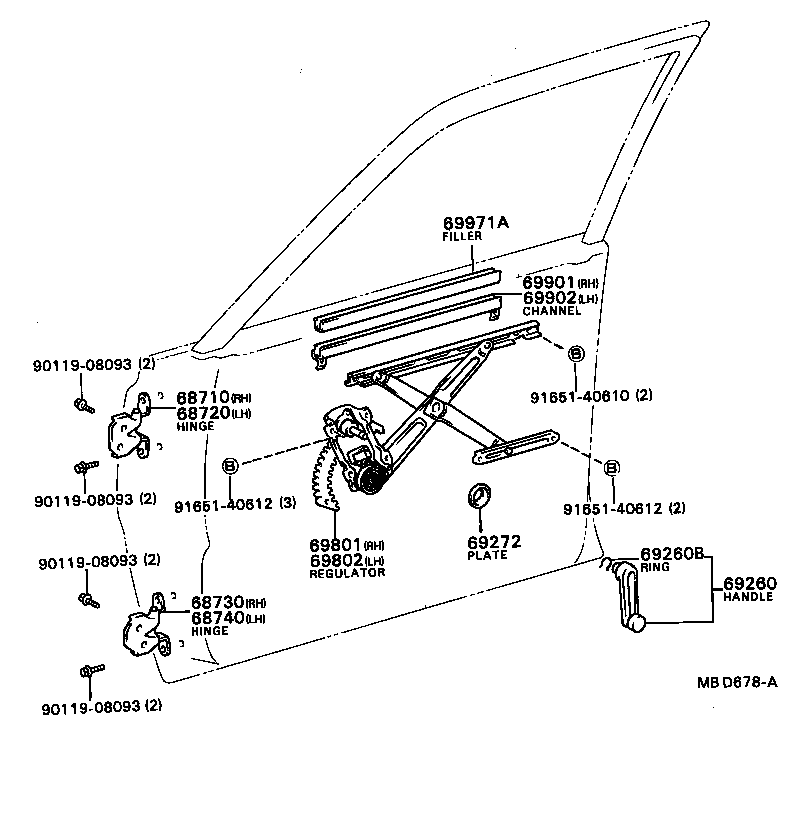

Click highlighted areas on diagram

diagram 68710 68720 68730 68740 69260 69260B 69272 69801 69802 69901 69902 69971A 9011908093 9011908093 9011908093 9011908093 9165140610 9165140612 9165140612
Part # Description Qty Price
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-32010

AL2#

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-32010

AL2#

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68730-32010

AL2#

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68740-32010

AL2#

 1
69260 - HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
69260-1402013

AL20,25..ARL,GEN

GRAY,GRAY,TRIM1#

 2
69260-1402016

AL20,25..ARL,GEN

BROWN,BROWN,TRIM4#

 2
69260-1402002

AL20..GEN

DARK WINE,RED/MAROON,TRIM3#

 2
69260B - RING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE
90520-01002

AL2#

 2
69272 - PLATE, FRONT DOOR REGULATOR INSIDE HANDLE
69268-16010

AL2#

 2
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69810-16020

AL2#

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69820-16020

AL2#

 1
69901 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH
69901-16010

AL2#

 1
69902 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH
69901-16010

AL2#

 1
69971A - FILLER, FRONT DOOR GLASS CHANNEL
69971-22010

AL2#

 2
Common parts
90119-08093
91651-40610
91651-40612
