AL20L-ZHHDS (1982)

Toyota Tercel

Production May 1982 - Aug 1984
Engine 2A
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8205- )

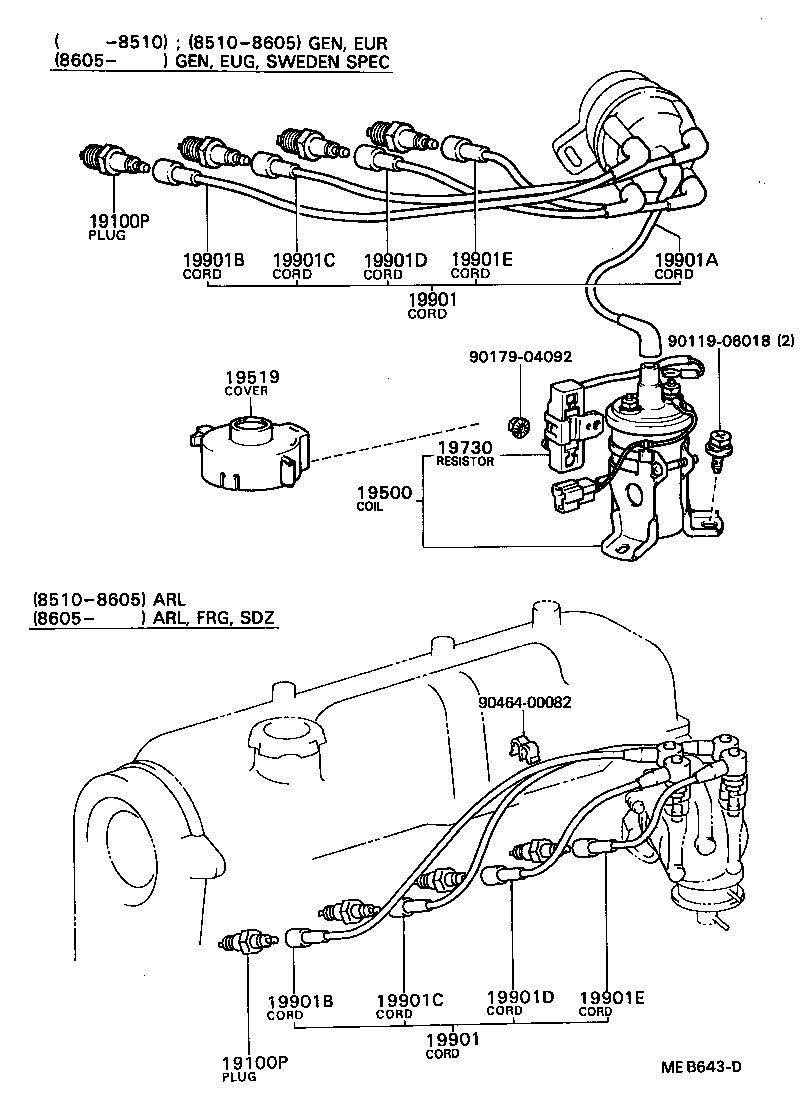

Click highlighted areas on diagram

diagram 19100P 19100P 19500 19519 19730 19901 19901 19901A 19901B 19901B 19901C 19901C 19901D 19901D 19901E 19901E 9011906018 9017904092 9046400082
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01059

2A,3A#..AL20,25..ARL,GEN

W16EX-U,W16EX-U

 4
19100P - PLUG, SPARK
90919-01059

2A,3A#..AL20,25..ARL,GEN

W16EX-U,W16EX-U

 4
19500 - COIL ASSY, IGNITION
90919-02137

2A,3A#..AL2#

 1
19730 - RESISTOR, IGNITION COIL
90919-04033

2A,3A#..AL2#

 1
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-21281

2A,3A#..AL2#

 1
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-21281

2A,3A#..AL2#

 1
19901A - CORD, COIL RESISTIVE
90919-13189

2A,3A#..AL2#

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-12356

2A,3A#..AL2#

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-12356

2A,3A#..AL2#

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-12357

2A,3A#..AL2#

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-12357

2A,3A#..AL2#

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-12358

2A,3A#..AL2#

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-12358

2A,3A#..AL2#

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-12359

2A,3A#..AL2#

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-12359

2A,3A#..AL2#

 1
Common parts
90119-06018
90179-04092
90464-00082
