AL20L-ZHHDS (1982)
Toyota Tercel
Production
May 1982
-
Aug 1984
Engine
2A
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8205- )

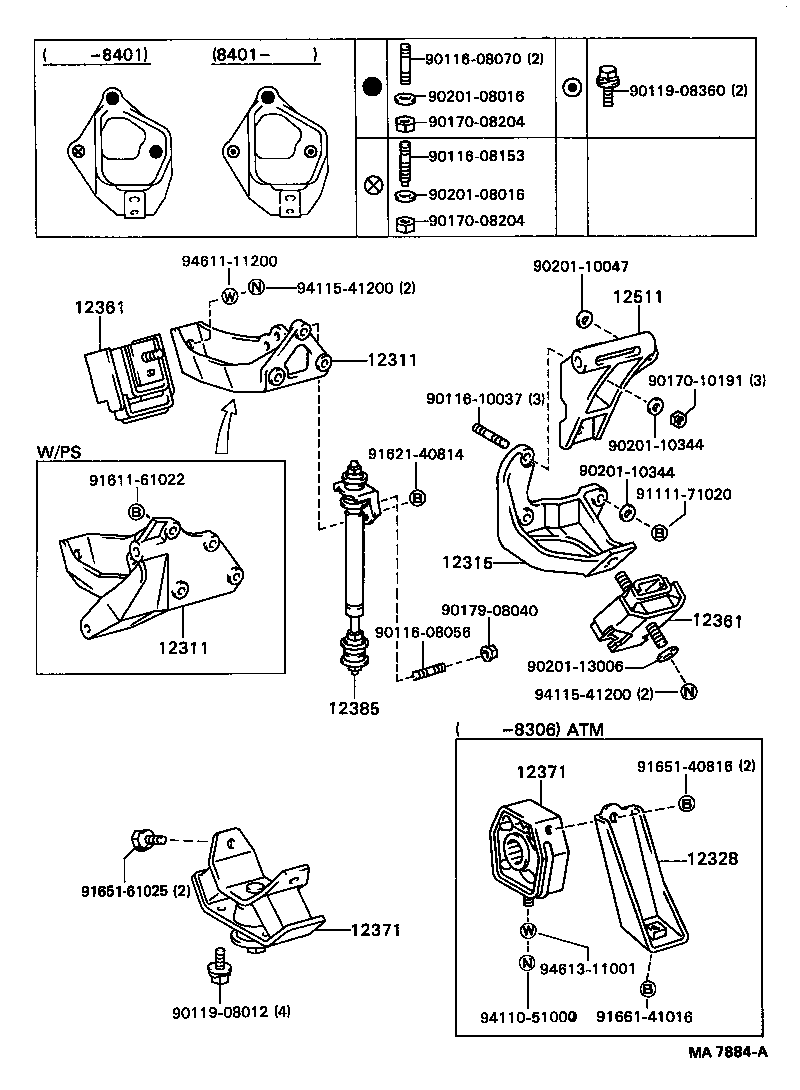

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH | ||||
| 12311-15050 |
2A,3A#..AL2# |
1 | ||
| 12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH | ||||
| 12311-15050 |
2A,3A#..AL2# |
1 | ||
| 12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH | ||||
| 12315-15030 |
2A,3A#..AL2# |
1 | ||
| 12328 - STAY, ENGINE MOUNTING, REAR LH | ||||
| 12328-15030 |
2A,3AC..AL20,21..3FC |
1 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-15050 |
2A,3A#..AL2# |
2 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-15050 |
2A,3A#..AL2# |
2 | ||
| 12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1 | ||||
| 12371-15050 |
2A,3AC..AL20,21 |
1 | ||
| 12371-15031 |
2A,3AC..AL20,21..3FC |
1 | ||
| 12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1 | ||||
| 12371-15050 |
2A,3AC..AL20,21 |
1 | ||
| 12371-15031 |
2A,3AC..AL20,21..3FC |
1 | ||
| 12385 - ABSORBER, ENGINE MOUNTING, NO.1 | ||||
| 12307-15030 |
2A,3A#..AL20,25..ARL,GEN |
1 | ||
| 12511 - BRACKET, ALTERNATOR, NO.1 | ||||
| 12511-15011 |
2A,3A#..AL2# |
1 | ||
| Common parts | ||||
| 90116-08056 | ||||
| 90116-08070 | ||||
| 90116-08153 | ||||
| 90116-10037 | ||||
| 90119-08012 | ||||
| 90119-08360 | ||||
| 90170-08204 | ||||
| 90170-10191 | ||||
| 90179-08040 | ||||
| 90201-08016 | ||||
| 90201-10047 | ||||
| 90201-10344 | ||||
| 90201-13006 | ||||
| 91111-71020 | ||||
| 91611-61022 | ||||
| 91621-40814 | ||||
| 91651-40816 | ||||
| 91651-61025 | ||||
| 91661-41016 | ||||
| 94110-51000 | ||||
| 94115-41200 | ||||
| 94611-11200 | ||||
| 94613-11001 | ||||
