AL20L-ZGMNSW (1982)

Toyota Tercel

Production May 1982 - Aug 1984
Engine 2A
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8205- )

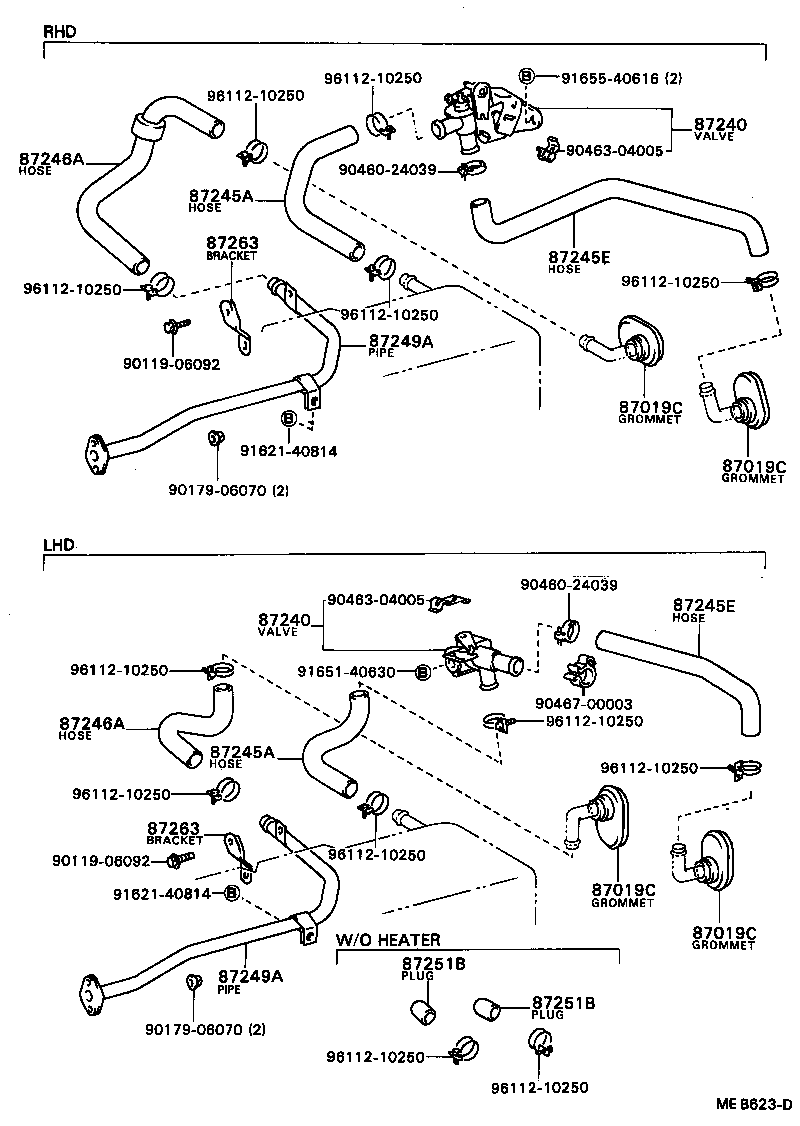

Click highlighted areas on diagram

diagram 87019C 87019C 87019C 87019C 87240 87240 87245A 87245A 87245E 87245E 87246A 87246A 87249A 87249A 87251B 87251B 87263 87263 9011906092 9011906092 9017906070 9017906070 9046024039 9046024039 9046304005 9046304005 9046700003 9162140814 9162140814 9165140630 9165540616 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250
Part # Description Qty Price
87019C - GROMMET, HEATER HOSE
90480-01015

AL2#

W/HEATER

 2
87019C - GROMMET, HEATER HOSE
90480-01015

AL2#

W/HEATER

 2
87019C - GROMMET, HEATER HOSE
90480-01015

AL2#

W/HEATER

 2
87019C - GROMMET, HEATER HOSE
90480-01015

AL2#

W/HEATER

 2
87240 - VALVE ASSY, HEATER WATER
87240-16040

AL2#..LHD

 1
87240 - VALVE ASSY, HEATER WATER
87240-16040

AL2#..LHD

 1
87245A - HOSE, HEATER WATER, INLET A
87245-16120

AL2#..LHD

 1
87245A - HOSE, HEATER WATER, INLET A
87245-16120

AL2#..LHD

 1
87245E - HOSE, HEATER WATER, INLET E
87245-16110

AL2#..LHD

 1
87245E - HOSE, HEATER WATER, INLET E
87245-16110

AL2#..LHD

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-16130

AL2#..LHD

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-16130

AL2#..LHD

 1
87249A - PIPE, HEATER WATER OUTLET, A
87208-16050

AL2#..EUR,GEN

 1
87249A - PIPE, HEATER WATER OUTLET, A
87208-16050

AL2#..EUR,GEN

 1
87251B - PLUG, HEATER WATER
90339-16007

AL20..LHD;AL25..LHD..EUG;AL25..LHD..GEN

W/O HEATER

 2
87251B - PLUG, HEATER WATER
90339-16007

AL20..LHD;AL25..LHD..EUG;AL25..LHD..GEN

W/O HEATER

 2
87263 - BRACKET, HEATER WATER PIPE, NO.1
87263-16010

AL2#..EUR,GEN

 1
87263 - BRACKET, HEATER WATER PIPE, NO.1
87263-16010

AL2#..EUR,GEN

 1
Common parts
90119-06092
90179-06070
90460-24039
90463-04005
90467-00003
91621-40814
91651-40630
91655-40616
96112-10250
