AL20L-ZGMNSW (1982)
Toyota Tercel

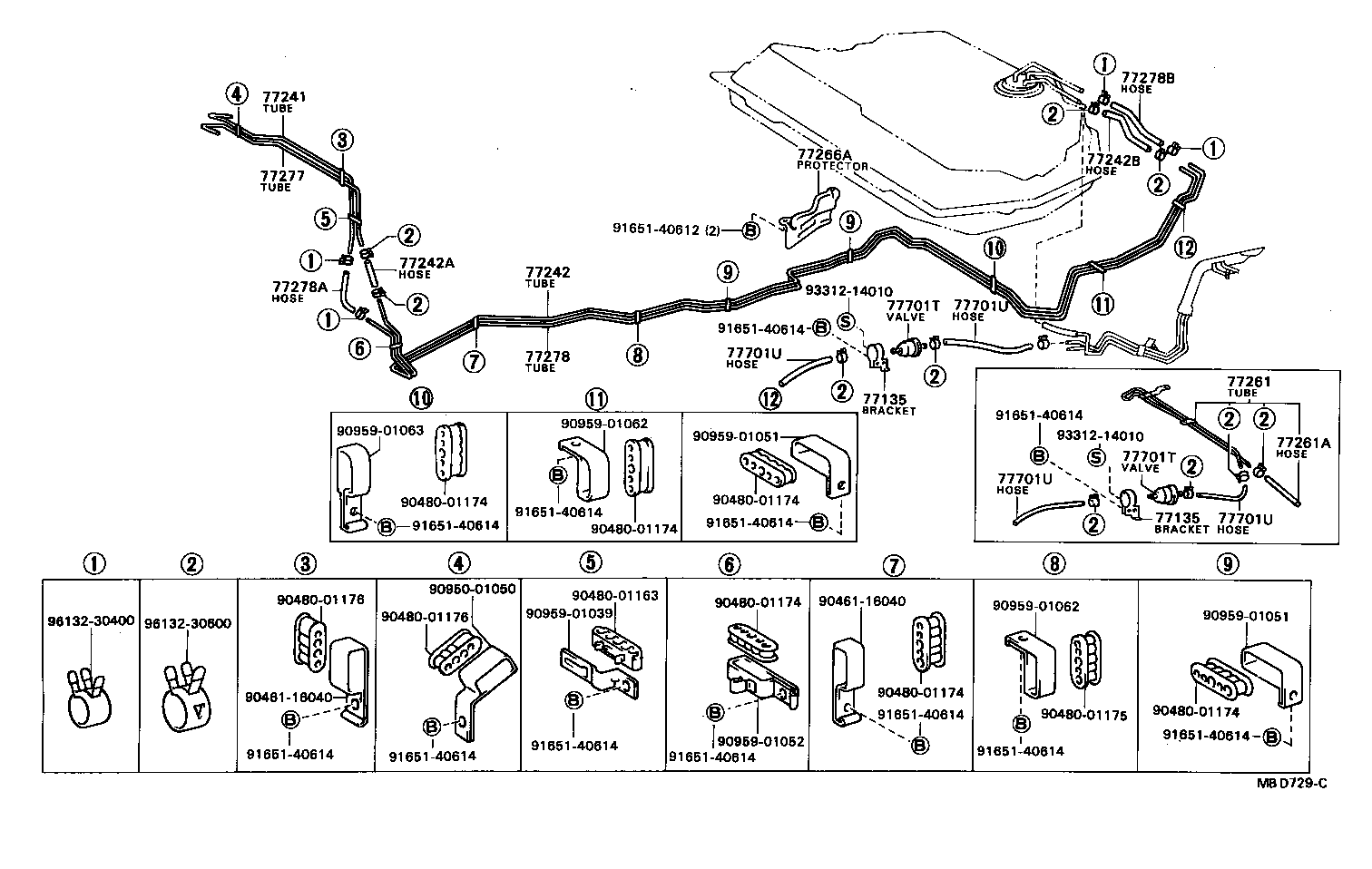

(8205-8408)AL20,21..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77135 - BRACKET, CHECK VALVE | ||||
| 77135-22020 |
AL20,21 |
1 | ||
| 77135-16010 |
AL20,21 |
1 | ||
| 77135 - BRACKET, CHECK VALVE | ||||
| 77135-22020 |
AL20,21 |
1 | ||
| 77135-16010 |
AL20,21 |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77252-16050 |
AL2#..LHD |
1 | ||
| 77242 - TUBE, FUEL MAIN, NO.2 | ||||
| 77251-16040 |
AL20,21..LHD |
1 | ||
| 77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2) | ||||
| 95332-06020 |
AL2# *H,L=200 |
1 | ||
| 77242B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.2) | ||||
| 95332-06020 |
AL20,21 *H,L=130 |
1 | ||
| 77261 - TUBE SUB-ASSY, FUEL EMISSION | ||||
| 77028-16010 |
AL20..EUG |
1 | ||
| 77028-16012 |
AL20,21 |
1 | ||
| 77028-16011 |
AL20,21..EUR |
1 | ||
| 77261A - HOSE, FUEL, NO.1 (FOR FUEL EMISSION TUBE) | ||||
| 95332-06020 |
AL20..EUG *H,L=130 |
1 | ||
| 77277 - TUBE, FUEL RETURN, NO.1 | ||||
| 77256-16030 |
AL2#..LHD |
1 | ||
| 77278 - TUBE, FUEL RETURN, NO.2 | ||||
| 77255-16070 |
AL20,21..LHD |
1 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 95332-04020 |
AL2#..LHD *H,L=130 |
1 | ||
| 77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2) | ||||
| 95332-04020 |
AL2#..LHD *H,L=160 |
1 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10020 |
AL2# |
1 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10020 |
AL2# |
1 | ||
| 77701U - HOSE, FUEL (FOR CHECK VALVE) | ||||
| 95332-06020 |
AL20,21 *H,L=120 |
1 | ||
| 95332-06020 |
AL20..EUG *H,L=150 |
1 | ||
| 95332-06020 |
AL20,21 *H,L=130 |
1 | ||
| 95332-06020 |
AL20,21 *H,L=80 |
1 | ||
| 77701U - HOSE, FUEL (FOR CHECK VALVE) | ||||
| 95332-06020 |
AL20,21 *H,L=120 |
1 | ||
| 95332-06020 |
AL20..EUG *H,L=150 |
1 | ||
| 95332-06020 |
AL20,21 *H,L=130 |
1 | ||
| 95332-06020 |
AL20,21 *H,L=80 |
1 | ||
| 77701U - HOSE, FUEL (FOR CHECK VALVE) | ||||
| 95332-06020 |
AL20,21 *H,L=120 |
1 | ||
| 95332-06020 |
AL20..EUG *H,L=150 |
1 | ||
| 95332-06020 |
AL20,21 *H,L=130 |
1 | ||
| 95332-06020 |
AL20,21 *H,L=80 |
1 | ||
| 77701U - HOSE, FUEL (FOR CHECK VALVE) | ||||
| 95332-06020 |
AL20,21 *H,L=120 |
1 | ||
| 95332-06020 |
AL20..EUG *H,L=150 |
1 | ||
| 95332-06020 |
AL20,21 *H,L=130 |
1 | ||
| 95332-06020 |
AL20,21 *H,L=80 |
1 | ||
| Common parts | ||||
| 90461-16040 | ||||
| 90480-01163 | ||||
| 90480-01174 | ||||
| 90480-01175 | ||||
| 90480-01176 | ||||
| 90950-01050 | ||||
| 90959-01039 | ||||
| 90959-01051 | ||||
| 90959-01052 | ||||
| 90959-01062 | ||||
| 90959-01063 | ||||
| 91651-40612 | ||||
| 91651-40614 | ||||
| 93312-14010 | ||||
| 96132-30400 | ||||
| 96132-30600 | ||||

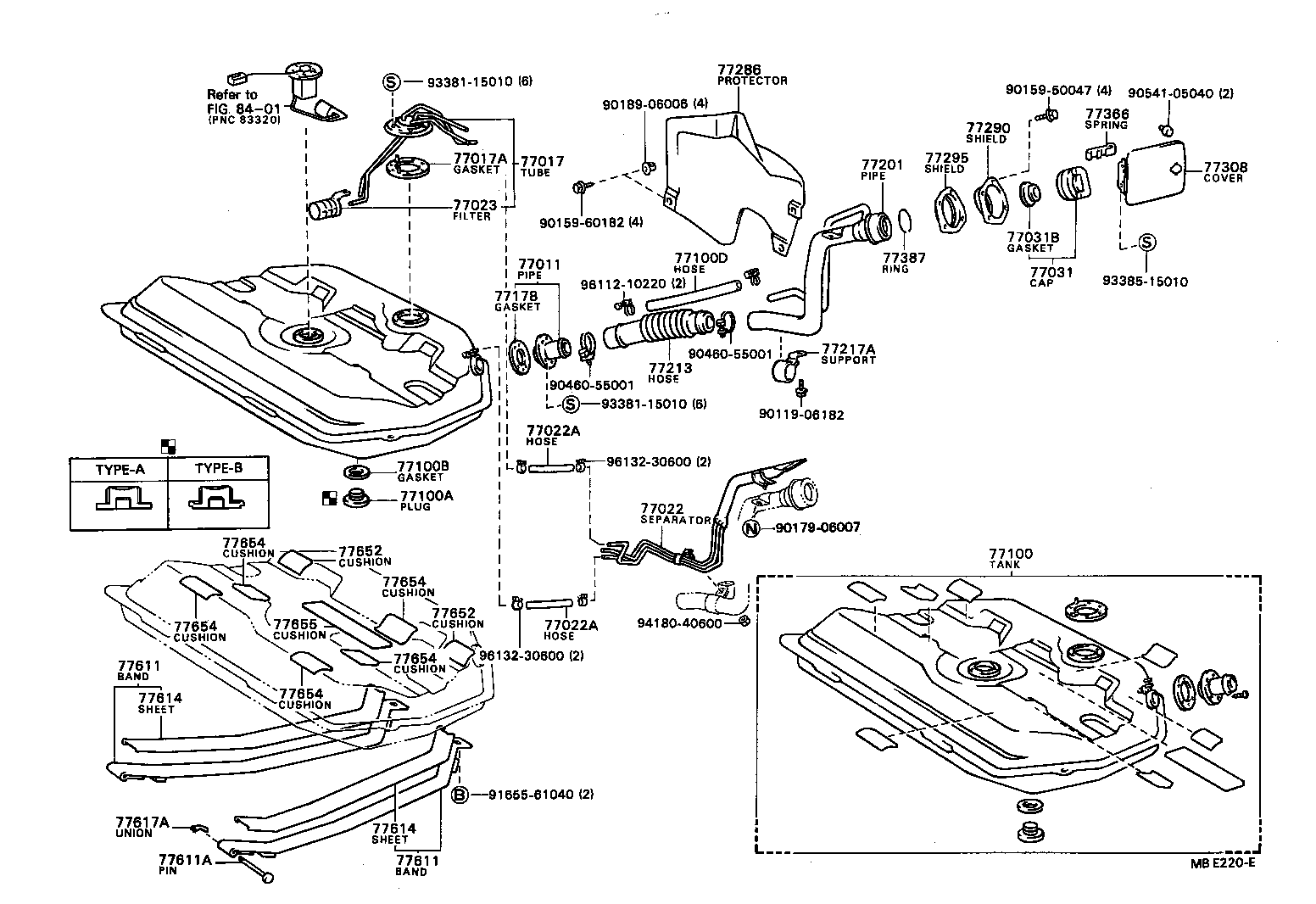

(8205-8408)AL20,21
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-16030 |
AL20,21 |
1 | ||
| 77011-32010 |
AL20 |
1 | ||
| 77017 - TUBE SUB-ASSY, FUEL AND EVAPORATION VENT | ||||
| 77017-16030 |
AL20,21 |
1 | ||
| 77017A - GASKET, FUEL TANK VENT | ||||
| 77178-10010 |
AL2# |
1 | ||
| 77022 - SEPARATOR SUB-ASSY, FUEL EVAPORATIVE | ||||
| 77022-16010 |
AL20,21 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06020 |
AL20,21 *H,L=130 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06020 |
AL20,21 *H,L=130 |
2 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-12050 |
AL2# |
1 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 77310-12100 |
AL2# |
1 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-12050 |
AL2# |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-19145 |
AL20,21 |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90341-20004 |
AL20,21 TYPE B |
1 | ||
| 90341-20003 |
AL20,21 TYPE A |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-20006 |
AL20,21 TYPE A |
1 | ||
| 90430-20007 |
AL20,21 TYPE B |
1 | ||
| 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) | ||||
| 77259-16010 |
AL20,21 |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-13020 |
AL20,21 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-16030 |
AL20,21 |
1 | ||
| 77213 - HOSE, FUEL TANK SUB INLET | ||||
| 77213-16030 |
AL20 |
1 | ||
| 77213-16031 |
AL20,21 |
1 | ||
| 77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-16010 |
AL20,21 |
1 | ||
| 77286 - PROTECTOR, FUEL TANK INLET PIPE | ||||
| 77277-16030 |
AL20,21 |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77290-16010 |
AL2# |
1 | ||
| 77295 - SHIELD, FUEL FILLER PIPE | ||||
| 77293-16010 |
AL20,21 |
1 | ||
| 77308 - COVER SUB-ASSY, FUEL INLET BOX | ||||
| 77350-16050 |
AL20,21 |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-24010 |
AL2# |
1 | ||
| 77387 - RING, FUEL INLET BOX | ||||
| 77391-14020 |
AL20,21 |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77602-16020 |
AL20,21 LH |
1 | ||
| 77601-16020 |
AL20,21 RH |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77602-16020 |
AL20,21 LH |
1 | ||
| 77601-16020 |
AL20,21 RH |
1 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 90240-08020 |
AL2# |
2 | ||
| 77614 - SEAT, FUEL TANK BAND | ||||
| 77681-16020 |
AL20,21 |
2 | ||
| 77614 - SEAT, FUEL TANK BAND | ||||
| 77681-16020 |
AL20,21 |
2 | ||
| 77617A - UNION, AUXILIARY FUEL BAND | ||||
| 77617-12010 |
AL2# |
2 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-16020 |
AL20,21 60 X 60 |
2 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-16020 |
AL20,21 60 X 60 |
2 | ||
| 77654 - CUSHION, FUEL TANK, NO.2 | ||||
| 77654-16010 |
AL20,21 80 X 80 |
2 | ||
| 77652-16050 |
AL20,21 60 X 80 |
3 | ||
| 77654 - CUSHION, FUEL TANK, NO.2 | ||||
| 77654-16010 |
AL20,21 80 X 80 |
2 | ||
| 77652-16050 |
AL20,21 60 X 80 |
3 | ||
| 77654 - CUSHION, FUEL TANK, NO.2 | ||||
| 77654-16010 |
AL20,21 80 X 80 |
2 | ||
| 77652-16050 |
AL20,21 60 X 80 |
3 | ||
| 77654 - CUSHION, FUEL TANK, NO.2 | ||||
| 77654-16010 |
AL20,21 80 X 80 |
2 | ||
| 77652-16050 |
AL20,21 60 X 80 |
3 | ||
| 77654 - CUSHION, FUEL TANK, NO.2 | ||||
| 77654-16010 |
AL20,21 80 X 80 |
2 | ||
| 77652-16050 |
AL20,21 60 X 80 |
3 | ||
| 77655 - CUSHION, FUEL TANK, NO.3 | ||||
| 77653-16020 |
AL20,21 60 X 220 |
1 | ||
| Common parts | ||||
| 90119-06182 | ||||
| 90159-50047 | ||||
| 90159-60182 | ||||
| 90179-06007 | ||||
| 90189-06006 | ||||
| 90460-55001 | ||||
| 90541-05040 | ||||
| 91655-61040 | ||||
| 93381-15010 | ||||
| 93385-15010 | ||||
| 94180-40600 | ||||
| 96112-10220 | ||||
| 96132-30600 | ||||
| Linked diagrams | ||||
| 8401 | ||||
