AL20L-ZGMNSW (1982)
Toyota Tercel
Production
May 1982
-
Aug 1984
Engine
2A
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8205-8408)AL20,21

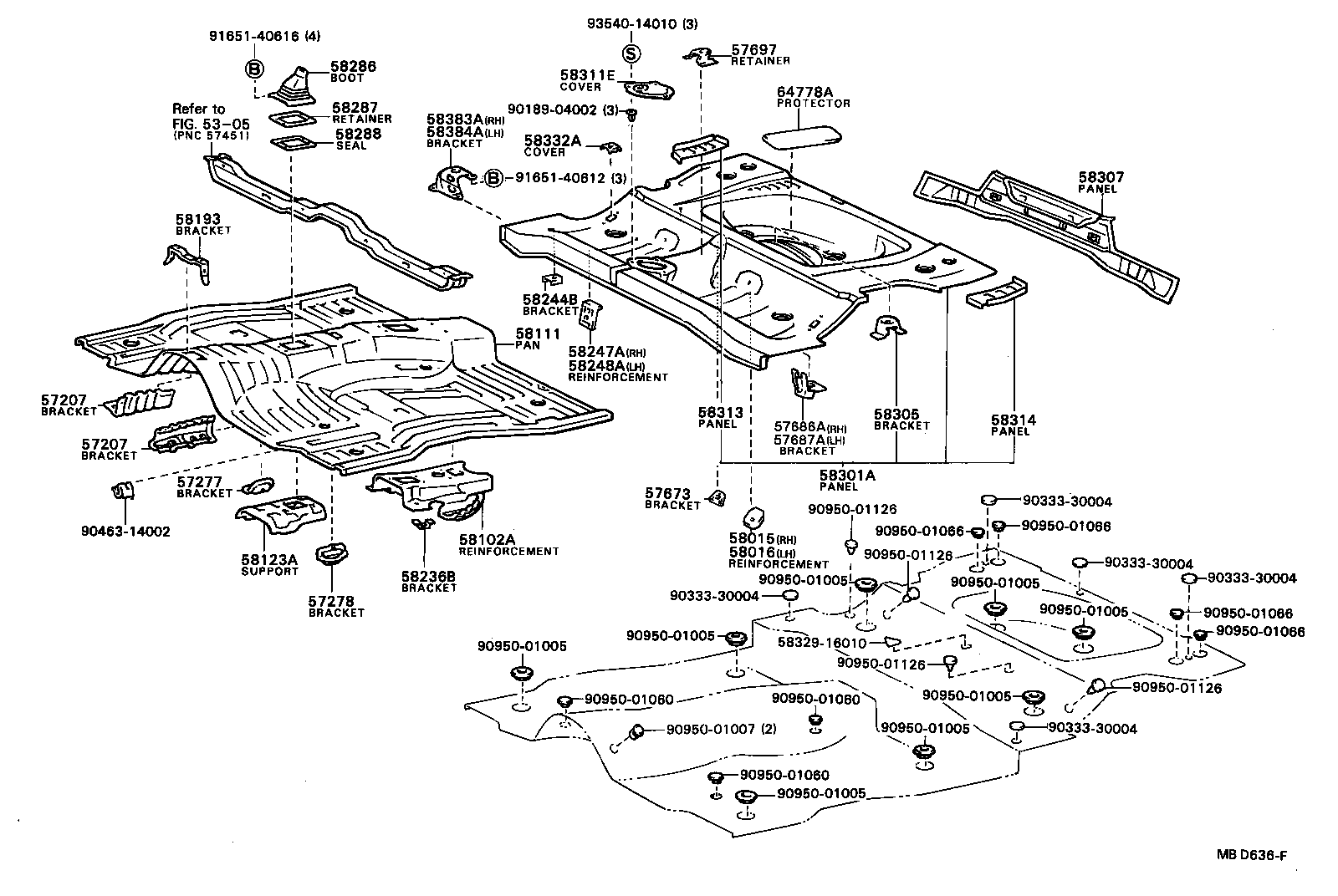

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57207 - BRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER | ||||
| 57207-16030 |
AL20,21 RH |
1 | ||
| 57208-16030 |
AL20,21 LH |
1 | ||
| 57207 - BRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER | ||||
| 57207-16030 |
AL20,21 RH |
1 | ||
| 57208-16030 |
AL20,21 LH |
1 | ||
| 57277 - BRACKET, CATALYTIC CONVERTER SUPPORT, RH | ||||
| 57277-16010 |
AL20,21 |
1 | ||
| 57278 - BRACKET, CATALYTIC CONVERTER SUPPORT, LH | ||||
| 57278-16040 |
AL20,21 |
1 | ||
| 57673 - BRACKET, REAR SEAT BACK HINGE MOUNTING | ||||
| 57673-16010 |
AL20,21 |
1 | ||
| 57686A - BRACKET, FUEL TANK MOUNTING, REAR RH | ||||
| 57686-16011 |
AL20,21 |
1 | ||
| 57686-16010 |
AL20,21 |
1 | ||
| 57687A - BRACKET, FUEL TANK MOUNTING, REAR LH | ||||
| 57687-16010 |
AL20,21 |
1 | ||
| 57687-16011 |
AL20,21 |
1 | ||
| 57697 - RETAINER, REAR SEAT CUSHION | ||||
| 57697-16010 |
AL20,21 |
1 | ||
| 58015 - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, RH | ||||
| 58015-16010 |
AL20,21 |
1 | ||
| 58016 - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, LH | ||||
| 58015-16010 |
AL20,21 |
1 | ||
| 58102A - REINFORCEMENT SUB-ASSY, FRONT FLOOR | ||||
| 58102-16020 |
AL20,21..EUR |
1 | ||
| 58111 - PAN, FRONT FLOOR | ||||
| 58111-16020 |
AL20,21 |
1 | ||
| 58123A - SUPPORT, SHIFT & SELECT LEVER | ||||
| 58123-16020 |
AL20,21 |
1 | ||
| 58193 - BRACKET, INSTRUMENT PANEL BRACE MOUNTING | ||||
| 58193-16020 |
AL20,21 |
1 | ||
| 58236B - BRACKET, CENTER FLOOR HEAT INSULATOR | ||||
| 58236-14010 |
AL2# |
7 | ||
| 58244B - BRACKET, REAR SEAT CUSHION MOUNTING | ||||
| 58244-16010 |
AL20,21 |
4 | ||
| 58247A - REINFORCEMENT, REAR SEAT CUSHION HINGE, RH | ||||
| 58247-16010 |
AL20,21 |
1 | ||
| 58248A - REINFORCEMENT, REAR SEAT CUSHION HINGE, LH | ||||
| 58247-16010 |
AL20,21 |
1 | ||
| 58286 - BOOT, SHIFT & SELECT LEVER, NO.1 | ||||
| 58286-16070 |
AL20,21..5F..GL |
1 | ||
| 58287 - RETAINER, SHIFT LEVER BOOT | ||||
| 58087-16010 |
AL20,21..5F..GL |
1 | ||
| 58288 - SEAL, SHIFT LEVER BOOT | ||||
| 58288-16011 |
AL20,21..MTM |
1 | ||
| 58301A - PANEL SUB-ASSY, REAR FLOOR | ||||
| 58301-16901 |
AL20,21 |
1 | ||
| 58305 - BRACKET SUB-ASSY, SPARE WHEEL CLAMP | ||||
| 58305-10011 |
AL2# |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-16260 |
AL20,21 |
1 | ||
| 58311E - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-16020 |
AL20,21 |
1 | ||
| 58313 - PANEL, REAR FLOOR SIDE, RH | ||||
| 58313-16020 |
AL20,21 |
1 | ||
| 58314 - PANEL, REAR FLOOR SIDE, LH | ||||
| 58314-16020 |
AL20,21 |
1 | ||
| 58332A - COVER, REAR FLOOR SIDE SERVICE HOLE | ||||
| 58331-16010 |
AL20,21 RH |
1 | ||
| 58332-16010 |
AL20,21 LH |
1 | ||
| 58383A - BRACKET, REAR SEAT SUPPORT, RH | ||||
| 58215-16010 |
AL20,21 |
1 | ||
| 58384A - BRACKET, REAR SEAT SUPPORT, LH | ||||
| 58216-16010 |
AL20,21 |
1 | ||
| Common parts | ||||
| 58329-16010 | ||||
| 90189-04002 | ||||
| 90333-30004 | ||||
| 90463-14002 | ||||
| 90950-01005 | ||||
| 90950-01007 | ||||
| 90950-01060 | ||||
| 90950-01066 | ||||
| 90950-01126 | ||||
| 91651-40612 | ||||
| 91651-40616 | ||||
| 93540-14010 | ||||
| Linked diagrams | ||||
| 5305 | ||||
