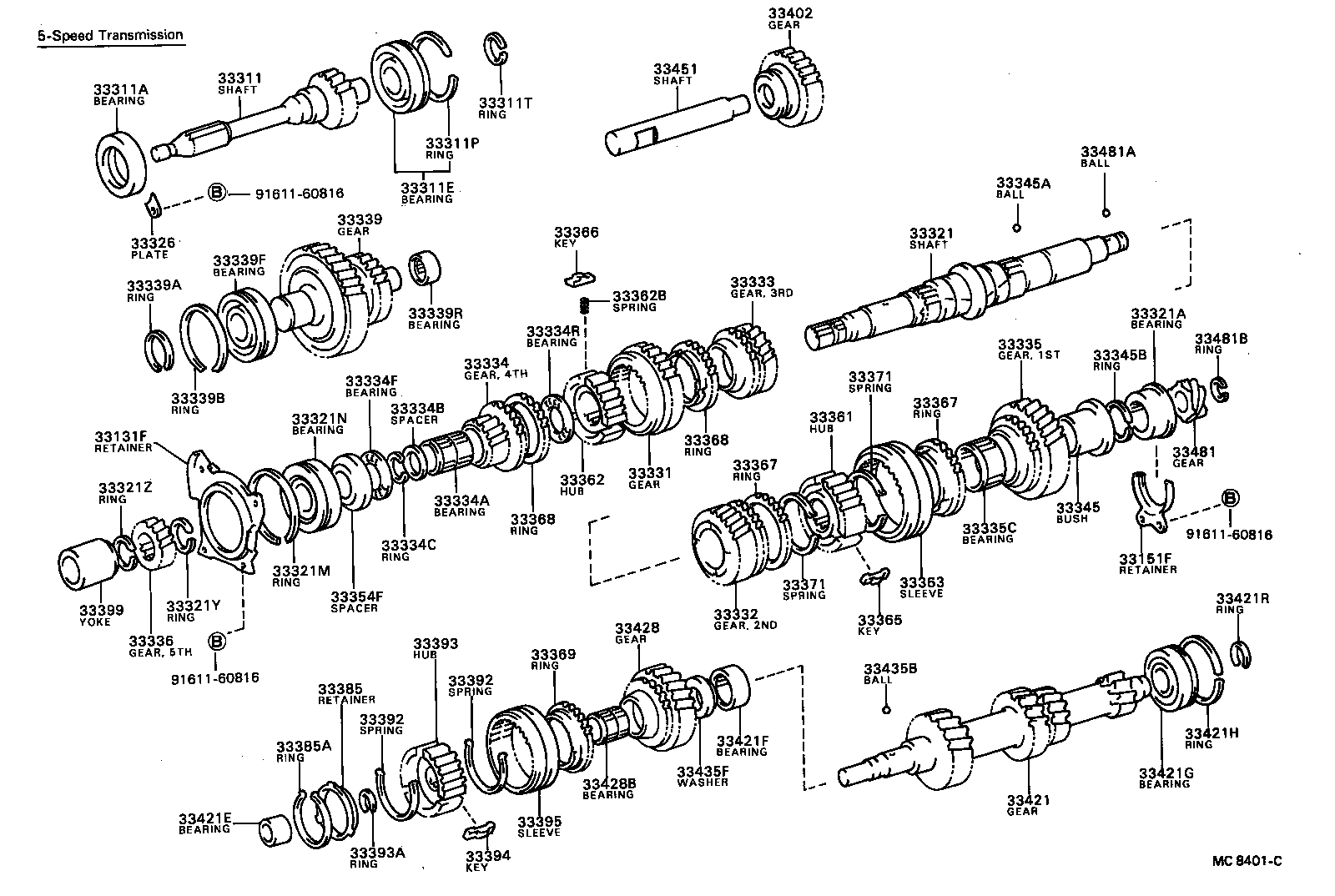

AL20L-ZGMNSW (1982)
Toyota Tercel
(8205-8408)5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33131F - RETAINER, OUTPUT SHAFT BEARING, FRONT | ||||
| 33131-16010 |
AL2#..MTM |
1 | ||
| 33151F - RETAINER, OUTPUT SHAFT REAR BEARING(MTM) | ||||
| 33151-16011 |
AL2#..MTM |
1 | ||
| 33311 - SHAFT, INPUT | ||||
| 33311-16011 |
AL2#..MTM |
1 | ||
| 33311A - BEARING (FOR INPUT SHAFT FRONT) | ||||
| 90365-34001 |
AL2#..MTM |
1 | ||
| 33311E - BEARING, RADIAL BALL (FOR INPUT SHAFT REAR) | ||||
| 90363-25016 |
AL2#..MTM |
1 | ||
| 33311P - RING, SHAFT SNAP (FOR INPUT SHAFT REAR BEARING) | ||||
| 90520-59002 |
AL2#..MTM |
1 | ||
| 33311T - RING, SHAFT SNAP (FOR INPUT SHAFT) | ||||
| 90520-23089 |
AL2#..MTM T=2.10-2.15,T=2.10-2.15 |
1 | ||
| 90520-23144 |
AL2#..MTM T=2.25-2.30,T=2.25-2.30 |
1 | ||
| 33321 - SHAFT, OUTPUT | ||||
| 33321-16010 |
AL20,21..MTM |
1 | ||
| 33321A - BEARING (FOR OUTPUT SHAFT REAR) | ||||
| 90369-28002 |
AL2#..MTM |
1 | ||
| 33321M - RING, SHAFT SNAP (FOR BEARING) | ||||
| 90520-59002 |
AL2#..MTM |
1 | ||
| 33321N - BEARING (FOR OUTPUT SHAFT FRONT) | ||||
| 90363-25015 |
AL2#..MTM |
1 | ||
| 33321Y - RING, SHAFT SNAP (FOR OUTPUT SHAFT FRONT BEARING) | ||||
| 90520-23143 |
AL2#..MTM T=2.15-2.20,T=2.15-2.20 |
1 | ||
| 90520-23147 |
AL2#..MTM T=2.40-2.45,T=2.40-2.45 |
1 | ||
| 90520-23089 |
AL2#..MTM T=2.10-2.15,T=2.10-2.15 |
1 | ||
| 90520-23001 |
AL2#..MTM T=2.45-2.5,T=2.45-2.50 |
1 | ||
| 90520-23002 |
AL2#..MTM T=2.50-2.55,T=2.50-2.55 |
1 | ||
| 90520-23144 |
AL2#..MTM T=2.25-2.30,T=2.25-2.30 |
1 | ||
| 90520-23145 |
AL2#..MTM T=2.30-2.35,T=2.30-2.35 |
1 | ||
| 90520-23146 |
AL2#..MTM T=2.35-2.40,T=2.35-2.40 |
1 | ||
| 90520-23090 |
AL2#..MTM T=2.20-2.25,T=2.20-2.25 |
1 | ||
| 33321Z - RING, SHAFT SNAP (FOR OUTPUT SHAFT FRONT) | ||||
| 90520-23089 |
AL2#..5F,6F T=2.10-2.15,T=2.10-2.15 |
1 | ||
| 90520-23145 |
AL2#..5F,6F T=2.30-2.35,T=2.30-2.35 |
1 | ||
| 90520-23146 |
AL2#..5F,6F T=2.35-2.40,T=2.35-2.40 |
1 | ||
| 90520-23144 |
AL2#..5F,6F T=2.25-2.30,T=2.25-2.30 |
1 | ||
| 90520-23090 |
AL2#..5F,6F T=2.20-2.25,T=2.20-2.25 |
1 | ||
| 90520-23143 |
AL2#..5F,6F T=2.15-2.20,T=2.15-2.20 |
1 | ||
| 33326 - PLATE, BEARING LOCK | ||||
| 33326-16010 |
AL2#..MTM |
1 | ||
| 33331 - GEAR, REVERSE | ||||
| 33331-16020 |
AL2#..MTM |
1 | ||
| 33332 - GEAR, 2ND | ||||
| 33332-16010 |
AL2#..MTM..(EUR,GEN) |
1 | ||
| 33333 - GEAR, 3RD | ||||
| 33333-16010 |
AL2#..MTM..(EUR,GEN) |
1 | ||
| 33334 - GEAR, 4TH | ||||
| 33334-16011 |
AL2#..MTM..(EUR,GEN) |
1 | ||
| 33334A - BEARING, NEEDLE ROLLER (FOR 4TH GEAR) | ||||
| 90364-25003 |
AL2#..MTM |
1 | ||
| 33334B - SPACER (FOR 4TH GEAR BEARING) | ||||
| 90560-25003 |
AL2#..MTM |
1 | ||
| 33334C - RING, SHAFT SNAP (FOR 4TH GEAR THRUST FRONT NEEDLE BEAR | ||||
| 90520-23008 |
AL2#..MTM |
1 | ||
| 33334F - BEARING, THRUST NEEDLE ROLLER (FOR 4TH GEAR FRONT) | ||||
| 90374-30002 |
AL2#..MTM |
1 | ||
| 33334R - BEARING, THRUST NEEDLE ROLLER (FOR 4TH GEAR REAR) | ||||
| 90374-29001 |
AL2#..MTM |
1 | ||
| 33335 - GEAR, 1ST | ||||
| 33335-16030 |
AL2#..MTM..(EUR,GEN) |
1 | ||
| 33335-16060 |
AL2#..MTM |
1 | ||
| 33335C - BEARING, NEEDLE ROLLER(FOR 1ST GEAR) | ||||
| 90364-36001 |
AL2#..MTM |
1 | ||
| 33336 - GEAR, 5TH | ||||
| 33336-16010 |
AL2#..5F,6F |
1 | ||
| 33339 - GEAR, IDLER | ||||
| 33339-16020 |
AL2#..MTM |
1 | ||
| 33339A - RING, SHAFT SNAP (FOR IDLER GEAR) | ||||
| 90520-28205 |
AL2#..MTM T=2.40-2.45,T=2.40-2.45 |
1 | ||
| 90520-28207 |
AL2#..MTM T=2.45-2.50,T=2.45-2.50 |
1 | ||
| 33339B - RING, SHAFT SNAP (FOR IDLER GEAR FRONT BEARING) | ||||
| 90520-68193 |
AL2#..MTM |
1 | ||
| 33339F - BEARING, RADIAL BALL (FOR IDLER GEAR FRONT) | ||||
| 90363-30019 |
AL2#..MTM |
1 | ||
| 33339R - BEARING, NEEDLE ROLLER (FOR IDLER GEAR REAR) | ||||
| 90364-25002 |
AL2#..MTM |
1 | ||
| 33345 - BUSH, 1ST GEAR | ||||
| 33345-16010 |
AL2#..MTM |
1 | ||
| 33345A - BALL (FOR 1ST GEAR BUSH) | ||||
| 90360-05012 |
AL2#..MTM |
1 | ||
| 33345B - RING, SHAFT SNAP (FOR 1ST GEAR BUSH) | ||||
| 90520-26009 |
AL2#..MTM T=2.15-2.20,T=2.15-2.20 |
1 | ||
| 90520-26024 |
AL2#..MTM T=2.50-2.55,T=2.50-2.55 |
1 | ||
| 90520-26010 |
AL2#..MTM T=2.20-2.25,T=2.20-2.25 |
1 | ||
| 90520-26012 |
AL2#..MTM T=2.30-2.35,T=2.30-2.35 |
1 | ||
| 90520-26025 |
AL2#..MTM T=2.55-2.60,T=2.55-2.60 |
1 | ||
| 90520-26014 |
AL2#..MTM T=2.40-2.45,T=2.40-2.45 |
1 | ||
| 90520-26013 |
AL2#..MTM T=2.35-2.40,T=2.35-2.40 |
1 | ||
| 90520-26011 |
AL2#..MTM T=2.25-2.30,T=2.25-2.30 |
1 | ||
| 90520-26015 |
AL2#..MTM T=2.45-2.50,T=2.45-2.50 |
1 | ||
| 33354F - SPACER (FOR 4TH GEAR FRONT THRUST BEARING) | ||||
| 33354-16011 |
AL2#..MTM |
1 | ||
| 33361 - HUB, TRANSMISSION CLUTCH, NO.1 | ||||
| 33361-16011 |
AL2#..MTM |
1 | ||
| 33362 - HUB, TRANSMISSION CLUTCH, NO.2 | ||||
| 33362-16010 |
AL2#..MTM |
1 | ||
| 33362B - SPRING, COMPRESSION (FOR CLUTCH HUB NO.2 SETTING) | ||||
| 90501-09012 |
AL2#..MTM |
3 | ||
| 33363 - SLEEVE, TRANSMISSION HUB, NO.1 | ||||
| 33363-16010 |
AL2#..MTM..(EUR,GEN) |
1 | ||
| 33363-16020 |
AL2#..MTM |
1 | ||
| 33365 - KEY, SYNCHROMESH SHIFTING, NO.1 | ||||
| 33365-16010 |
AL2#..MTM |
3 | ||
| 33366 - KEY, SYNCHROMESH SHIFTING, NO.2 | ||||
| 33366-16010 |
AL2#..MTM |
3 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33367-16010 |
AL20..MTM |
2 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33367-16010 |
AL20..MTM |
2 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33368-16010 |
AL2#..MTM..(EUR,GEN) |
2 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33368-16010 |
AL2#..MTM..(EUR,GEN) |
2 | ||
| 33369 - RING, SYNCHRONIZER, NO.3 | ||||
| 33369-16010 |
AL2#..5F,6F |
1 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-16010 |
AL2#..MTM |
2 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-16010 |
AL2#..MTM |
2 | ||
| 33385 - RETAINER, SHIFTING KEY | ||||
| 33385-16011 |
AL2#..5F,6F |
1 | ||
| 33385A - RING, HOLE SNAP (FOR 5TH SHIFTING KEY RETAINER) | ||||
| 90521-52001 |
AL2#..5F,6F |
1 | ||
| 33392 - SPRING, SYNCHROMESH SHIFTING KEY, NO.3 | ||||
| 33391-16010 |
AL2#..5F,6F |
2 | ||
| 33392 - SPRING, SYNCHROMESH SHIFTING KEY, NO.3 | ||||
| 33391-16010 |
AL2#..5F,6F |
2 | ||
| 33393 - HUB, TRANSMISSION CLUTCH, NO.3 | ||||
| 33393-16011 |
AL2#..5F,6F |
1 | ||
| 33393A - RING, SHAFT SNAP (FOR TRANSMISSION CLUTCH HUB NO.3) | ||||
| 90520-20015 |
AL2#..5F,6F T=1.80-1.85 |
1 | ||
| 90520-20017 |
AL2#..5F,6F T=1.90-1.95 |
1 | ||
| 90520-20018 |
AL2#..5F,6F T=1.95-2.00 |
1 | ||
| 90520-20020 |
AL2#..5F,6F T=2.05-2.10 |
1 | ||
| 90520-20019 |
AL2#..5F,6F T=2.00-2.05 |
1 | ||
| 90520-20016 |
AL2#..5F,6F T=1.85-1.90 |
1 | ||
| 90520-20021 |
AL2#..5F,6F T=2.10-2.15 |
1 | ||
| 33394 - KEY, SYNCHROMESH SHIFTING, NO.3 | ||||
| 33394-16010 |
AL2#..5F,6F |
3 | ||
| 33395 - SLEEVE, TRANSMISSION HUB, NO.3 | ||||
| 33395-16010 |
AL2#..5F,6F |
1 | ||
| 33399 - YOKE, TRANSMISSION SLEEVE (MTM) | ||||
| 33399-16010 |
AL2#..MTM |
1 | ||
| 33402 - GEAR SUB-ASSY, REVERSE IDLER | ||||
| 33402-16020 |
AL2#..MTM |
1 | ||
| 33421 - GEAR, COUNTER | ||||
| 33421-16050 |
AL20,21..5F |
1 | ||
| 33421E - BEARING, NEEDLE ROLLER(FOR COUNTER GEAR) | ||||
| 90364-19002 |
AL2#..5F,6F |
1 | ||
| 33421F - BEARING, NEEDLE ROLLER(FOR COUNTER GEAR FRONT) | ||||
| 90364-30003 |
AL2#..MTM |
1 | ||
| 33421G - BEARING, RADIAL BALL(FOR COUNTER GEAR REAR) | ||||
| 90363-22005 |
AL20,21..MTM |
1 | ||
| 33421H - RING, SHAFT SNAP(FOR COUNTER GEAR REAR BEARING) | ||||
| 90520-57001 |
AL2#..MTM |
1 | ||
| 33421R - RING, SHAFT SNAP(FOR COUNTER GEAR REAR) | ||||
| 90520-20004 |
AL20,21..MTM T=1.95-2.00,T=1.95-2.00 |
1 | ||
| 90520-20001 |
AL20,21..MTM T=1.80-1.85,T=1.80-1.85 |
1 | ||
| 33428 - GEAR, COUNTERSHAFT 5TH | ||||
| 33428-16010 |
AL2#..5F,6F |
1 | ||
| 33428B - BEARING (FOR COUNTER 5TH GEAR) | ||||
| 90364-24003 |
AL2#..5F,6F |
1 | ||
| 33435B - BALL (FOR COUNTER GEAR CASE SIDE THRUST WASHER) | ||||
| 90360-05012 |
AL2#..5F,6F |
1 | ||
| 33435F - WASHER, COUNTER SHAFT 5TH GEAR SIDE THRUST | ||||
| 33435-16010 |
AL2#..5F,6F |
1 | ||
| 33451 - SHAFT, REVERSE IDLER GEAR | ||||
| 33451-16010 |
AL2#..MTM |
1 | ||
| 33481 - GEAR, SPEEDOMETER DRIVE (MTM) | ||||
| 33481-16010 |
AL20,21..MTM |
1 | ||
| 33481A - KEY OR BALL, SPEEDOMETER DRIVE GEAR (MTM) | ||||
| 90360-05012 |
AL2#..MTM |
1 | ||
| 33481B - RING OR SPACER (FOR MTM SPEEDOMETER DRIVE GEAR) | ||||
| 90520-18266 |
AL20,21..MTM T=1.60-1.65 |
1 | ||
| Common parts | ||||
| 91611-60816 | ||||
