AL20L-ZGMNSW (1982)

Toyota Tercel

Production May 1982 - Aug 1984
Engine 2A
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8205-8511) ; (8511-8605)3A#..EUR,GEN ; (8605-)3A

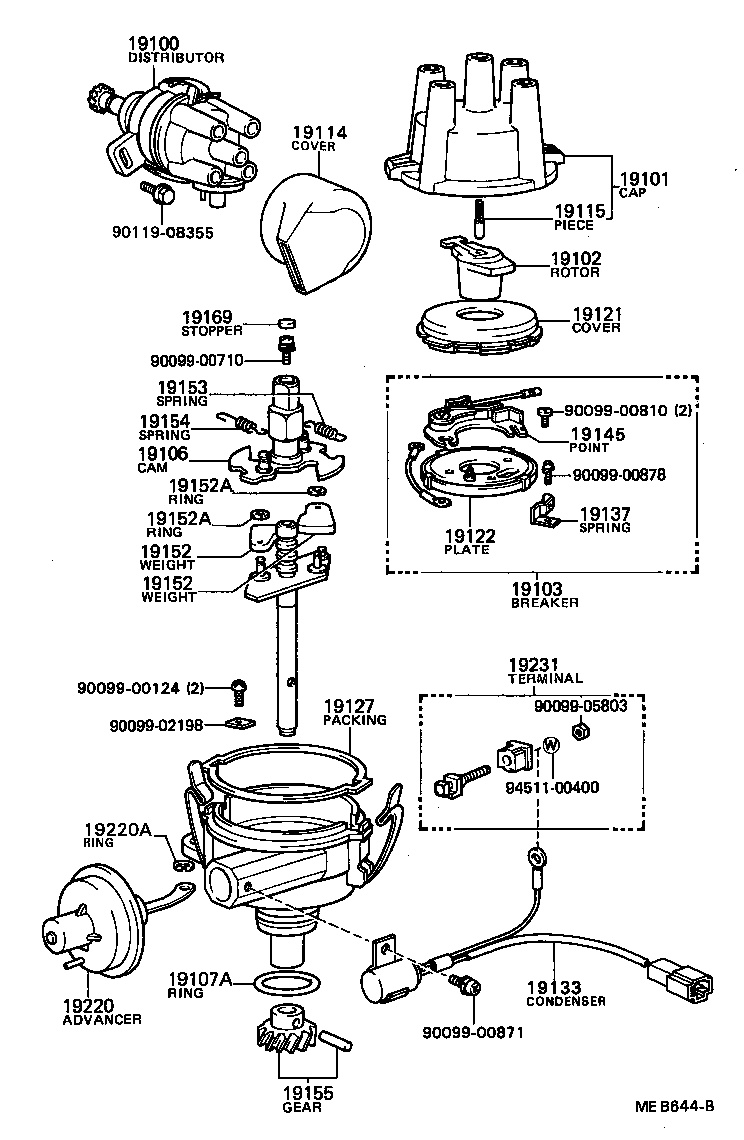

Click highlighted areas on diagram

(8605- )SWEDEN SPEC

diagram 19100 19101 19102 19103 19106 19107A 19114 19115 19121 19122 19127 19133 19137 19145 19152 19152 19152A 19152A 19153 19154 19155 19169 19220 19220A 19231 9009900124 9009900710 9009900810 9009900871 9009900878 9009902198 9009905803 9011908355 9451100400
Part # Description Qty Price
19100 - DISTRIBUTOR ASSY
19100-14060

2A..AL20..MTM..EUG

 1
19101 - CAP SUB-ASSY, DISTRIBUTOR
19101-15010

2A,3A#..AL2#

 1
19102 - ROTOR SUB-ASSY, DISTRIBUTOR
19102-26150

2A,3A#..AL2#..EUR

 1
19103 - BREAKER SUB-ASSY, DISTRIBUTOR
19103-14010

2A,3A#..AL2#

 1
19106 - CAM SUB-ASSY, DISTRIBUTOR
19106-14050

2A,3A#..AL2#

 1
19107A - RING, O, DISTRIBUTOR HOUSING
96710-04030

2A,3A#..AL2#

 1
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-50010

2A,3A#..AL2#

 1
19121 - COVER, DUST PROOF
19121-38030

2A,3A#..AL2#

 1
19122 - PLATE, STATIONARY, DISTRIBUTOR
19122-14010

2A,3A#..AL2#

 1
19127 - PACKING, DUST PROOF
19127-15010

2A,3A#..AL2#

 1
19133 - CONDENSER, DISTRIBUTOR
90099-52076

2A,3A#..AL2#

 1
19137 - SPRING SUB-ASSY, DAMPER
19137-14010

2A,3A#..AL2#

 1
19145 - POINT, DISTRIBUTOR
19145-14010

2A,3A#..AL2#

 1
19152 - WEIGHT, GOVERNOR
19152-44170

2A,3A#..AL2#

 2
19152 - WEIGHT, GOVERNOR
19152-44170

2A,3A#..AL2#

 2
19152A - RING, SNAP(FOR GOVERNOR WEIGHT)
90099-07109

2A,3A#..AL2#

 2
19152A - RING, SNAP(FOR GOVERNOR WEIGHT)
90099-07109

2A,3A#..AL2#

 2
19153 - SPRING, GOVERNOR, A
19153-14050

2A..AL20

 1
19154 - SPRING, GOVERNOR, B
19154-14050

2A..AL20

 1
19155 - GEAR, SPIRAL, DISTRIBUTOR
19195-15021

2A,3A#..AL2#

 1
19169 - STOPPER, CAM GREASE
19169-32010

2A,3A#..AL2#

 1
19220 - ADVANCER ASSY, VACUUM, DISTRIBUTOR
19220-14050

2A..AL20..MTM;2A..AL20..3FC..GEN

 1
19220A - RING, SNAP(FOR DISTRIBUTOR VACUUM ADVANCER)
90099-07109

2A,3A#..AL2#

 1
19231 - TERMINAL, DISTRIBUTOR
19231-24140

2A,3A#..AL2#

 1
Common parts
90099-00124
90099-00710
90099-00810
90099-00871
90099-00878
90099-02198
90099-05803
90119-08355
94511-00400
