AL20L-ZGMNSW (1982)

Toyota Tercel

Production May 1982 - Aug 1984
Engine 2A
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8205- )

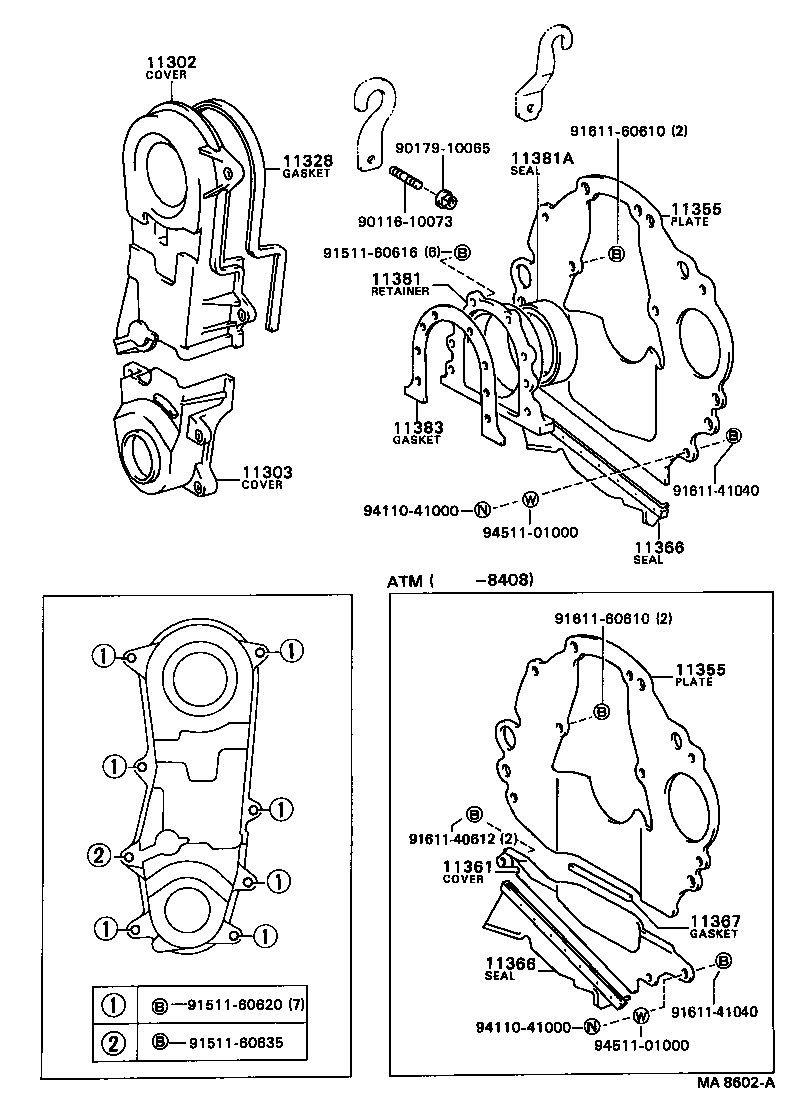

Click highlighted areas on diagram

diagram 11302 11303 11328 11355 11355 11361 11366 11366 11367 11381 11381A 11383 9011610073 9017910065 9151160616 9151160620 9151160635 9161140612 9161141040 9161141040 9161160610 9161160610 9411041000 9411041000 9451101000 9451101000
Part # Description Qty Price
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11302-15020

2A,3A#..AL2#

 1
11303 - COVER SUB-ASSY, CRANKSHAFT GEAR OR PULLEY
11303-15020

2A,3A#..AL2#

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-15020

2A,3A#..AL2#

 1
11355 - PLATE, REAR END
11355-15010

2A,3A#..AL2#..MTM

 1
11355 - PLATE, REAR END
11355-15010

2A,3A#..AL2#..MTM

 1
11366 - SEAL, FLYWHEEL HOUSING UNDER COVER DUST
11366-15010

2A,3A#..AL2#..MTM

 1
11366 - SEAL, FLYWHEEL HOUSING UNDER COVER DUST
11366-15010

2A,3A#..AL2#..MTM

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-15010

2A,3A#..AL2#

 1
11381A - SEAL, ENGINE REAR OIL
90311-70004

2A,3A#..AL2#

 1
11383 - GASKET, ENGINE REAR OIL SEAL RETAINER
11383-15010

2A,3A#..AL2#

 1
Common parts
90116-10073
90179-10065
91511-60616
91511-60620
91511-60635
91611-40612
91611-41040
91611-60610
94110-41000
94511-01000
