AL20L-ZGMDSW (1982)

Toyota Tercel

Production May 1982 - Aug 1984
Engine 2A
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8205- )

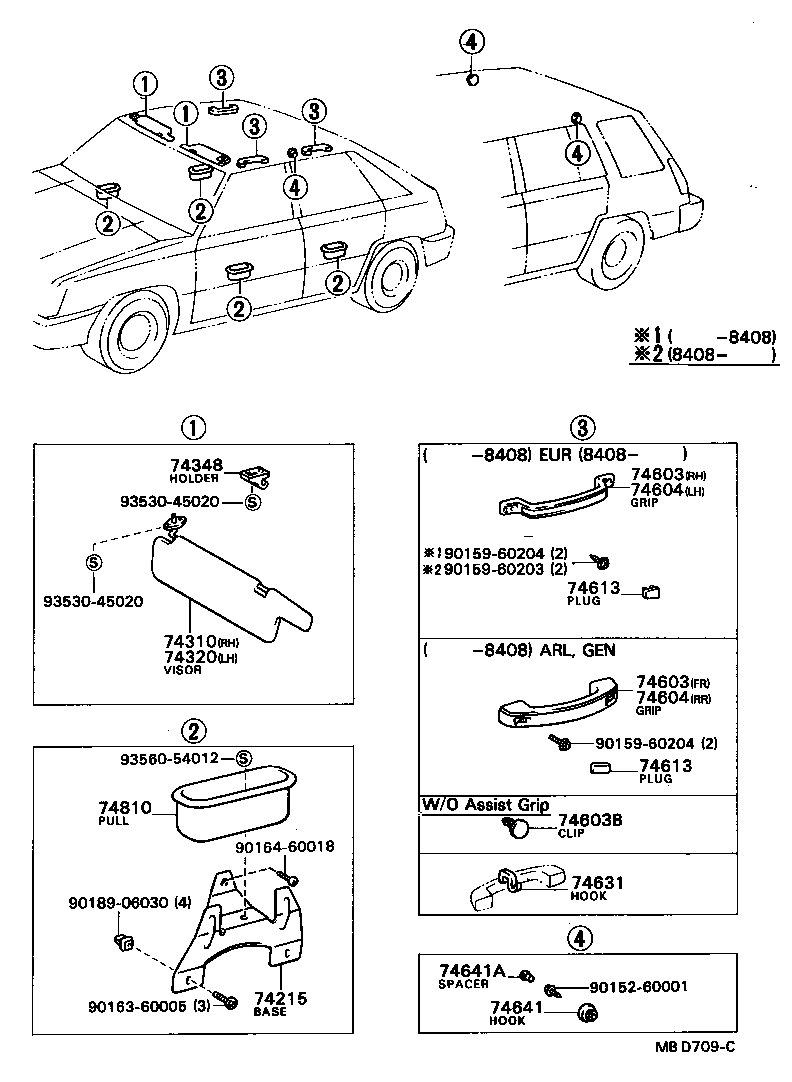

Click highlighted areas on diagram

diagram 74215 74310 74320 74348 74603 74603 74603B 74604 74604 74613 74613 74631 74641 74641A 74810 9015260001 9015960203 9015960204 9015960204 9016360005 9016460018 9018906030 9353045020 9353045020 9356054012
Part # Description Qty Price
74215 - BASE, DOOR ARMREST
74215-16010

AL20,21..3DS

 2
74310 - VISOR ASSY, RH
74310-16210

AL20,25..LHD..(DLX,GL)

W/MIRROR,IVORY

 1
74310-16160

AL20..RHD;AL20..LHD..(DLX,STD)

IVORY

 1
74320 - VISOR ASSY, LH
74320-16110

AL20..DLX,STD;AL20..LHD..GL;AL21,25..EUR,GEN

IVORY

 1
74348 - HOLDER, VISOR
74348-3201008

AL2#

IVORY,IVORY,TRIM1#,3#,4#

 2
74603 - GRIP SUB-ASSY, ASSIST, FRONT
74603-16010

AL2#..EUR

IVORY

 1
74603 - GRIP SUB-ASSY, ASSIST, FRONT
74603-16010

AL2#..EUR

IVORY

 1
74603B - CLIP (FOR ASSIST GRIP)
90467-0700718

AL2#

IVORY,IVORY,TRIM1#,3#,4#

 5
74604 - GRIP SUB-ASSY, ASSIST, REAR
74603-16010

AL2#..(DLX,GL)..EUR

IVORY

 2
74604 - GRIP SUB-ASSY, ASSIST, REAR
74603-16010

AL2#..(DLX,GL)..EUR

IVORY

 2
74613 - PLUG, ASSIST GRIP
74617-1601008

AL2#..EUR

IVORY,IVORY,TRIM1#,3#,4#

 6
74613 - PLUG, ASSIST GRIP
74617-1601008

AL2#..EUR

IVORY,IVORY,TRIM1#,3#,4#

 6
74631 - HOOK, COAT, A
74631-1401018

AL2#..DLX,GL,SR5

IVORY,IVORY,TRIM1#,3#,4#

 1
74810 - PULL ASSY, DOOR, INSIDE
74811-1601002

AL20,21

DARK WINE,RED/MAROON,TRIM3#

 4
74811-1601006

AL2#

BROWN,BROWN,TRIM4#

 4
74811-1601003

AL2#

GRAY,GRAY,TRIM1#

 4
Common parts
90152-60001
90159-60203
90159-60204
90163-60005
90164-60018
90189-06030
93530-45020
93560-54012
