AL20L-ZGMDS (1982)

Toyota Tercel

Production May 1982 - Aug 1984
Engine 2A
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8205- )

Click highlighted areas on diagram

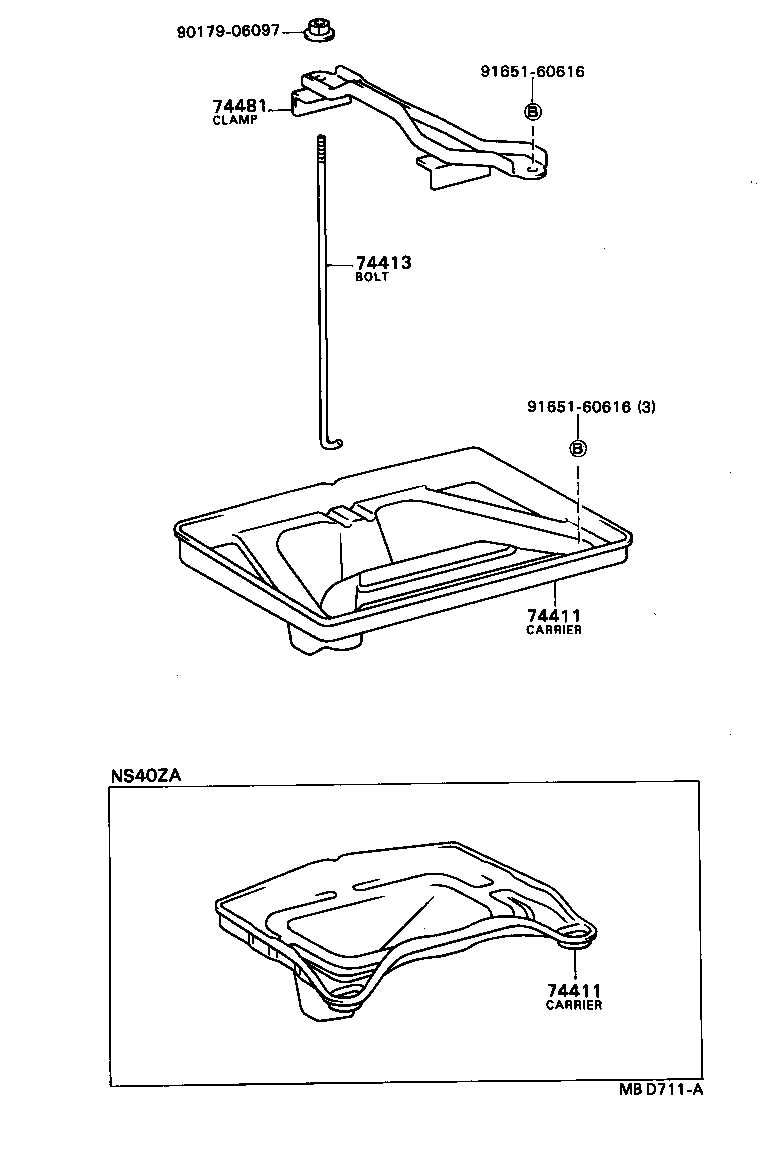

diagram 74411 74411 74413 74481 9017906097 9165160616 9165160616
Part # Description Qty Price
74411 - CARRIER, BATTERY
74431-16030

AL2#

32C24R(N40),55D23R

 1
74431-16020

AL20,25..GEN

34B19R(NS40ZA)

 1
74411 - CARRIER, BATTERY
74431-16030

AL2#

32C24R(N40),55D23R

 1
74431-16020

AL20,25..GEN

34B19R(NS40ZA)

 1
74413 - BOLT, BATTERY CLAMP
74451-14010

AL2#..EUR,GEN

 1
74481 - CLAMP, BATTERY HOLD DOWN
74404-16040

AL2#

32C24R(N40)

 1
74404-16030

AL20,25..GEN

34B19R(NS40ZA)

 1
Common parts
90179-06097
91651-60616
