AL20L-ZGMDS (1982)

Toyota Tercel

Production May 1982 - Aug 1984
Engine 2A
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8205- )MTM

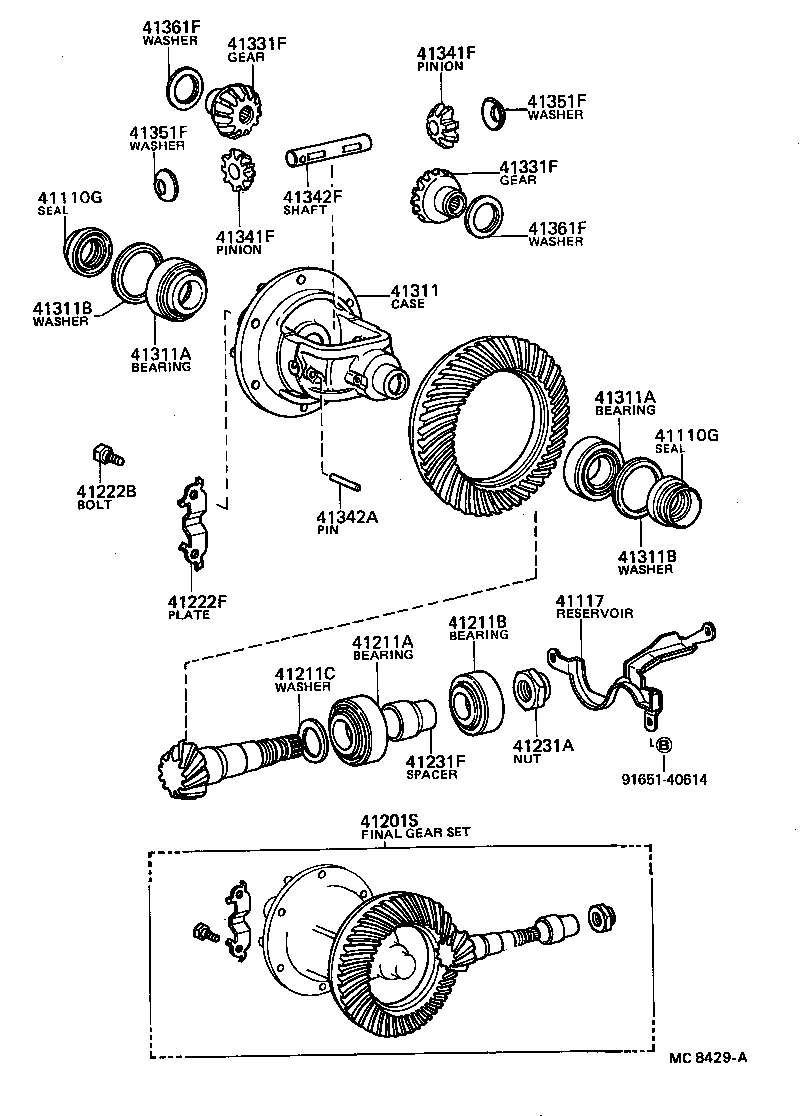

Click highlighted areas on diagram

diagram 41110G 41110G 41117 41201S 41211A 41211B 41211C 41222B 41222F 41231A 41231F 41311 41311A 41311A 41311B 41311B 41331F 41331F 41341F 41341F 41342A 41342F 41351F 41351F 41361F 41361F 9165140614
Part # Description Qty Price
41110G - SEAL, OIL (FOR DIFFERENTIAL SIDE)
90311-32006

AL2#

 2
41110G - SEAL, OIL (FOR DIFFERENTIAL SIDE)
90311-32006

AL2#

 2
41117 - RESERVOIR, DIFFERENTIAL OIL
41117-16010

AL2#..MTM

 1
41201S - FINAL GEAR KIT, DIFFERENTIAL, FRONT
41201-19296

AL20,21..MTM

R=41:11

 1
41211A - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT)
90368-33001

AL2#

 1
41211B - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR)
90368-28002

AL2#

 1
41211C - GEAR, DIFFERENTIAL RING
90201-34002

AL2#

T=1.53,T=1.53

 1
90201-34001

AL2#

T=1.50,T=1.50

 1
90201-34008

AL2#

T=1.71,T=1.71

 1
90201-34007

AL2#

T=1.68,T=1.68

 1
90201-34006

AL2#

T=1.65,T=1.65

 1
90201-34012

AL2#

T=1.83,T=1.83

 1
90201-34003

AL2#

T=1.56,T=1.56

 1
90201-34015

AL2#

T=1.92,T=1.92

 1
90201-34014

AL2#

T=1.89,T=1.89

 1
90201-34011

AL2#

T=1.80,T=1.80

 1
90201-34009

AL2#

T=1.74,T=1.74

 1
90201-34016

AL2#

T=1.95,T=1.95

 1
90201-34013

AL2#

T=1.86,T=1.86

 1
90201-34005

AL2#

T=1.62,T=1.62

 1
90201-34010

AL2#

T=1.77,T=1.77

 1
90201-34004

AL2#

T=1.59,T=1.59

 1
41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
90101-11365

AL2#

 6
41222F - PLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK
41222-16010

AL2#

 3
41231A - NUT, DRIVE PINION LOCK
90179-28001

AL2#

 1
41231F - SPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING
41231-16010

AL2#

 1
41311 - CASE, FRONT DIFFERENTIAL
41311-16011

AL2#

 1
41311A - BEARING (FOR FRONT DIFFERENTIAL CASE)
90366-35002

AL2#

 2
41311A - BEARING (FOR FRONT DIFFERENTIAL CASE)
90366-35002

AL2#

 2
41311B - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE)
90201-40002

AL2#

T=2.65,T=2.65

 2
90201-40003

AL2#

T=2.68,T=2.68

 2
90201-40007

AL2#

T=2.80,T=2.80

 2
90201-40005

AL2#

T=2.74,T=2.74

 2
90201-40001

AL2#

T=2.62,T=2.62

 2
90201-40008

AL2#

T=2.83,T=2.83

 2
90201-40011

AL2#

T=2.92,T=2.92

 2
90201-40010

AL2#

T=2.89,T=2.89

 2
90201-40013

AL2#

T=2.98,T=2.98

 2
90201-40016

AL2#

T=3.07,T=3.07

 2
90201-40009

AL2#

T=2.86,T=2.86

 2
90201-40018

AL2#

T=3.13,T=3.13

 2
90201-40006

AL2#

T=2.77,T=2.77

 2
90201-40014

AL2#

T=3.01,T=3.01

 2
90201-40017

AL2#

T=3.10,T=3.10

 2
90201-40012

AL2#

T=2.95,T=2.95

 2
90201-40021

AL2#

T=3.22,T=3.22

 2
90201-40023

AL2#

T=3.28,T=3.28

 2
90201-40022

AL2#

T=3.25,T=3.25

 2
90201-40020

AL2#

T=3.19,T=3.19

 2
90201-40024

AL2#

T=3.04,T=3.04

 2
90201-40004

AL2#

T=2.71,T=2.71

 2
90201-40019

AL2#

T=3.16,T=3.16

 2
41311B - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE)
90201-40002

AL2#

T=2.65,T=2.65

 2
90201-40003

AL2#

T=2.68,T=2.68

 2
90201-40007

AL2#

T=2.80,T=2.80

 2
90201-40005

AL2#

T=2.74,T=2.74

 2
90201-40001

AL2#

T=2.62,T=2.62

 2
90201-40008

AL2#

T=2.83,T=2.83

 2
90201-40011

AL2#

T=2.92,T=2.92

 2
90201-40010

AL2#

T=2.89,T=2.89

 2
90201-40013

AL2#

T=2.98,T=2.98

 2
90201-40016

AL2#

T=3.07,T=3.07

 2
90201-40009

AL2#

T=2.86,T=2.86

 2
90201-40018

AL2#

T=3.13,T=3.13

 2
90201-40006

AL2#

T=2.77,T=2.77

 2
90201-40014

AL2#

T=3.01,T=3.01

 2
90201-40017

AL2#

T=3.10,T=3.10

 2
90201-40012

AL2#

T=2.95,T=2.95

 2
90201-40021

AL2#

T=3.22,T=3.22

 2
90201-40023

AL2#

T=3.28,T=3.28

 2
90201-40022

AL2#

T=3.25,T=3.25

 2
90201-40020

AL2#

T=3.19,T=3.19

 2
90201-40024

AL2#

T=3.04,T=3.04

 2
90201-40004

AL2#

T=2.71,T=2.71

 2
90201-40019

AL2#

T=3.16,T=3.16

 2
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-16010

AL2#

 2
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-16010

AL2#

 2
41341F - PINION, FRONT DIFFERENTIAL
41341-20011

AL2#

 2
41341F - PINION, FRONT DIFFERENTIAL
41341-20011

AL2#

 2
41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
90250-04053

AL2#

 1
41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1
41342-16010

AL2#

 1
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-12010

AL2#

 2
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-12010

AL2#

 2
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-12010

AL2#

T=1.50,T=1.48-1.52

 2
41361-12030

AL2#

T=1.60,T=1.58-1.62

 2
41361-12040

AL2#

T=1.65,T=1.63-1.67

 2
41361-12020

AL2#

T=1.55,T=1.53-1.57

 2
41361-12050

AL2#

T=1.70,T=1.68-1.72

 2
41361-12060

AL2#

T=1.75,T=1.73-1.77

 2
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-12010

AL2#

T=1.50,T=1.48-1.52

 2
41361-12030

AL2#

T=1.60,T=1.58-1.62

 2
41361-12040

AL2#

T=1.65,T=1.63-1.67

 2
41361-12020

AL2#

T=1.55,T=1.53-1.57

 2
41361-12050

AL2#

T=1.70,T=1.68-1.72

 2
41361-12060

AL2#

T=1.75,T=1.73-1.77

 2
Common parts
91651-40614

(8205- )MTM

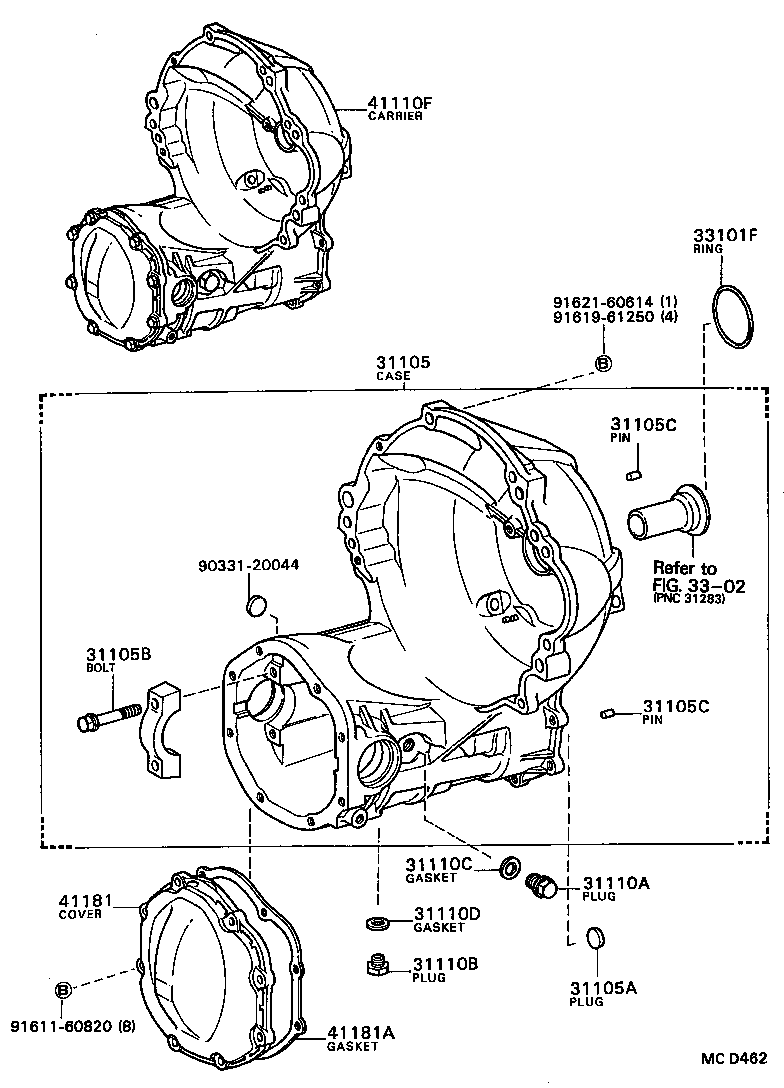

Click highlighted areas on diagram

diagram 31105 31105A 31105B 31105C 31105C 31110A 31110B 31110C 31110D 3302 33101F 41110F 41181 41181A 9033120044 9161160820 9161961250 9162160614
Part # Description Qty Price
31105 - CASE SUB-ASSY, TRANSAXLE(MTM)
31105-16011

AL2#..MTM

 1
31105B - BOLT, HEXAGON(FOR DIFFERENTIAL BEARING CAP SETTING)
90105-10008

AL2#..MTM

 4
31105C - PIN, STRAIGHT(FOR TRANSAXLE CASE)
90250-10232

AL2#..MTM

 2
31105C - PIN, STRAIGHT(FOR TRANSAXLE CASE)
90250-10232

AL2#..MTM

 2
31110A - PLUG(FOR DIFFERENTIAL FILLER)
90341-18006

AL2#..MTM

 1
31110B - PLUG(FOR DIFFERENTIAL DRAIN)
90341-18057

AL2#..MTM

 1
31110C - GASKET(FOR DIFFERENTIAL FILLER)
12157-10010

AL2#..MTM

 1
31110D - GASKET(FOR DIFFERENTIAL DRAIN)
12157-10010

AL2#..MTM

 1
33101F - RING, O(FOR INPUT FRONT)
90301-54002

AL2#..MTM

 1
41110F - CARRIER ASSY, DIFFERENTIAL, FRONT
41110-16021

AL20,21..MTM

R=41:11,*AXC=Y302

 1
41181 - COVER, FRONT DIFFERENTIAL CARRIER
41181-16020

AL2#

 1
41181A - GASKET, FRONT DIFFERENTIAL CARRIER COVER
41182-16010

AL2#

 1
Common parts
90331-20044
91611-60820
91619-61250
91621-60614
Linked diagrams
3302
