AL20L-ZGKDSW (1982)

Toyota Tercel

Production May 1982 - Aug 1984
Engine 2A
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8205- )

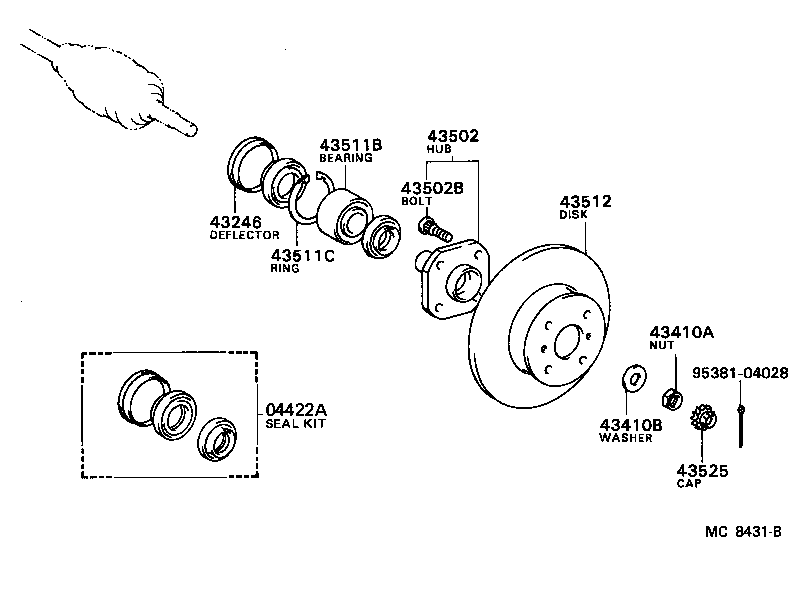

Click highlighted areas on diagram

diagram 04422A 43246 43410A 43410B 43502 43502B 43511B 43511C 43512 43525 9538104028
Part # Description Qty Price
04422A - SEAL KIT, FRONT AXLE OIL
04422-16020

AL2#

 2
43246 - DEFLECTOR, FRONT WHEEL BEARING DUST, NO.1
43246-16020

AL2#

 2
43410A - NUT (FOR AXLE HUB & DRIVE SHAFT SETTING)
90170-19001

AL2#

 2
43410B - WASHER (FOR AXLE HUB & DRIVE SHAFT SETTING)
90201-20006

AL2#

 2
43502 - HUB SUB-ASSY, FRONT AXLE
43502-16020

AL2#

 2
43502B - BOLT, HUB (FOR FRONT AXLE)
90942-02047

AL2#

 8
43511B - BEARING (FOR FRONT AXLE HUB)
90363-35016

AL2#

 2
43511C - RING, HOLE SNAP (FOR FRONT AXLE HUB)
90521-77001

AL2#

OD=77

 2
43512 - DISC, FRONT
43512-16030

AL2#

 2
43525 - CAP, FRONT WHEEL ADJUSTING LOCK
43525-16010

AL2#

 2
Common parts
95381-04028
