AL20L-ZGHNSW (1982)
Toyota Tercel
(8205- )2A,3A#..LHD..EUR

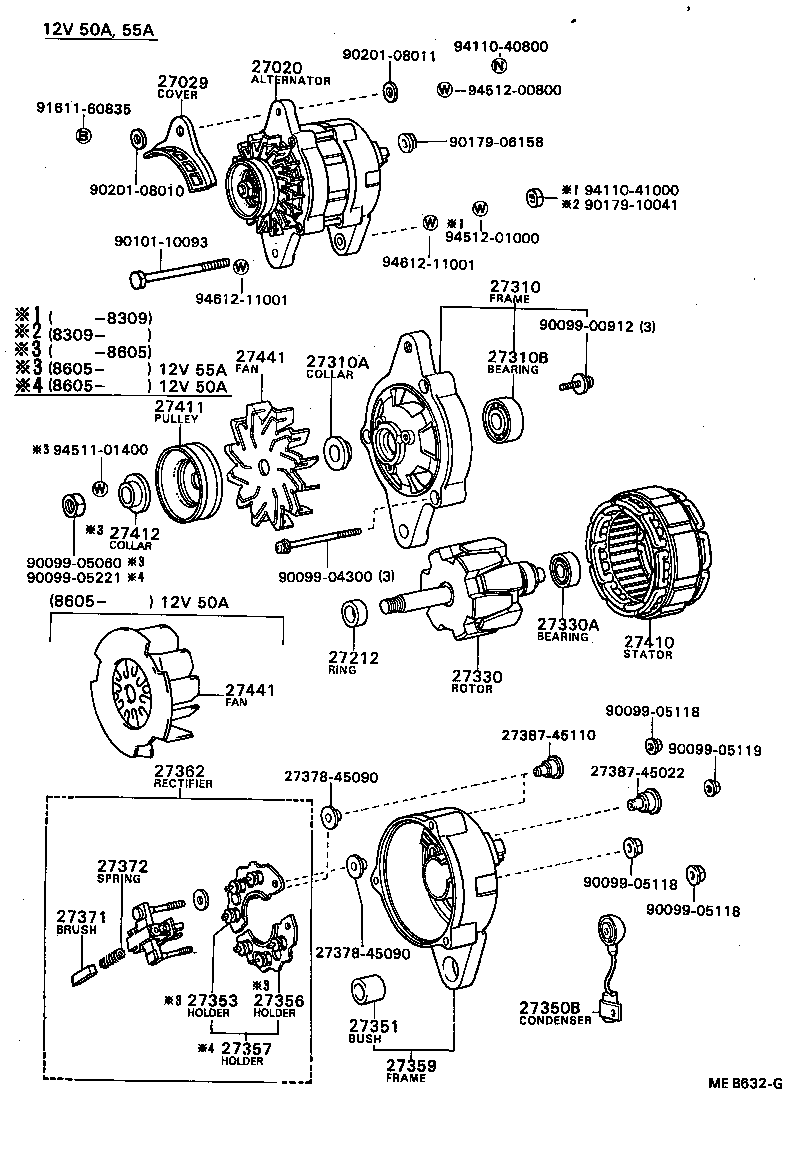

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-15030 |
2A,3A#..AL2# 12V 40A,12V 40A |
1 | ||
| 27020-15022 |
2A,3A..AL20,25..LHD..EUG 12V 50A,12V 50A |
1 | ||
| 27029 - COVER, ALTERNATOR | ||||
| 27029-15012 |
2A,3A#..AL2# 12V 40A,45A,50A,55A |
1 | ||
| 27212 - RING, SPACE(FOR ALTERNATOR ROTOR) | ||||
| 27212-39050 |
2A,3A#..AL2# 12V 40A,45A |
1 | ||
| 27412-45070 |
2A,3A..AL20,25..LHD..EUG 12V 50A,55A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-15030 |
2A,3A#..AL2# 12V 40A,45A |
1 | ||
| 27310-61023 |
2A,3A..AL20,25..LHD..EUG 12V 50A,55A |
1 | ||
| 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27412-31040 |
2A,3A#..AL2# 12V 40A,45A,50A,55A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10126 |
2A,3A#..AL2# 12V 40A,45A,50A,55A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-45070 |
2A,3A..AL20,25..LHD..EUG 12V 50A |
1 | ||
| 27330-26050 |
2A,3A#..AL2# 12V 40A |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10111 |
2A,3A#..AL2# 12V 40A,45A,50A,55A |
1 | ||
| 27350B - CONDENSER, ALTERNATOR | ||||
| 90099-52065 |
2A,3A#..AL2# 12V 40A,45A,50A,55A |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-38051 |
2A,3A#..AL2# 12V 40A,45A,50A,55A |
1 | ||
| 27353 - HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR | ||||
| 27353-34051 |
2A,3A..AL20,25..LHD..EUG 12V 50A |
1 | ||
| 27356 - HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR | ||||
| 27356-34051 |
2A,3A..AL20,25..LHD..EUG 12V 50A |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-15030 |
2A,3A#..AL2# 12V 40A,45A |
1 | ||
| 27359-15021 |
2A,3A..AL20,25..LHD..EUG 12V 50A,55A |
1 | ||
| 27362 - RECTIFIER ASSY, W/BRUSH | ||||
| 27362-15021 |
2A,3A..AL20,25..LHD..EUG 12V 50A |
1 | ||
| 27362-18011 |
2A,3A#..AL2# 12V 40A,45A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-31011 |
2A,3A#..AL2# 12V 40A,45A,50A,55A |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-31011 |
2A,3A#..AL2# 12V 40A,45A,50A,55A |
2 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-41080 |
2A,3A..AL20,25..LHD..EUG 12V 50A |
1 | ||
| 27410-15030 |
2A,3A#..AL2# 12V 40A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-26111 |
2A,3A#..AL2# 12V 40A,45A,50A,55A |
1 | ||
| 27412 - COLLAR, SPACER(FOR ALTERNATOR PULLEY) | ||||
| 27412-44030 |
2A,3A#..AL2# 12V 40A,45A,50A,55A |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-34030 |
2A,3A#..AL2# 12V 40A,45A,50A,55A |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-34030 |
2A,3A#..AL2# 12V 40A,45A,50A,55A |
1 | ||
| Common parts | ||||
| 27378-45090 | ||||
| 27387-45022 | ||||
| 27387-45110 | ||||
| 90099-00912 | ||||
| 90099-04300 | ||||
| 90099-05060 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90099-05221 | ||||
| 90101-10093 | ||||
| 90179-06158 | ||||
| 90179-10041 | ||||
| 90201-08010 | ||||
| 90201-08011 | ||||
| 91611-60835 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94511-01400 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
| 94612-11001 | ||||
(8205- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-15030 |
2A,3A#..AL2# 12V 40A,12V 40A |
1 | ||
| 27020-15022 |
2A,3A..AL20,25..LHD..EUG 12V 50A,12V 50A |
1 | ||
| 27029 - COVER, ALTERNATOR | ||||
| 27029-15012 |
2A,3A#..AL2# 12V 40A,45A,50A,55A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-18011 |
2A,3A#..AL2# 12V 40A,45A |
1 | ||
| 27212 - RING, SPACE(FOR ALTERNATOR ROTOR) | ||||
| 27212-39050 |
2A,3A#..AL2# 12V 40A,45A |
1 | ||
| 27412-45070 |
2A,3A..AL20,25..LHD..EUG 12V 50A,55A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-15030 |
2A,3A#..AL2# 12V 40A,45A |
1 | ||
| 27310-61023 |
2A,3A..AL20,25..LHD..EUG 12V 50A,55A |
1 | ||
| 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27412-31040 |
2A,3A#..AL2# 12V 40A,45A,50A,55A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10126 |
2A,3A#..AL2# 12V 40A,45A,50A,55A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-45070 |
2A,3A..AL20,25..LHD..EUG 12V 50A |
1 | ||
| 27330-26050 |
2A,3A#..AL2# 12V 40A |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10111 |
2A,3A#..AL2# 12V 40A,45A,50A,55A |
1 | ||
| 27330B - RING, SNAP(FOR ALTERNATOR ROTOR) | ||||
| 90099-07048 |
2A,3A#..AL2# 12V 40A,45A |
1 | ||
| 27350B - CONDENSER, ALTERNATOR | ||||
| 90099-52065 |
2A,3A#..AL2# 12V 40A,45A,50A,55A |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-38051 |
2A,3A#..AL2# 12V 40A,45A,50A,55A |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-15030 |
2A,3A#..AL2# 12V 40A,45A |
1 | ||
| 27359-15021 |
2A,3A..AL20,25..LHD..EUG 12V 50A,55A |
1 | ||
| 27362 - RECTIFIER ASSY, W/BRUSH | ||||
| 27362-15021 |
2A,3A..AL20,25..LHD..EUG 12V 50A |
1 | ||
| 27362-18011 |
2A,3A#..AL2# 12V 40A,45A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-31011 |
2A,3A#..AL2# 12V 40A,45A,50A,55A |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-31011 |
2A,3A#..AL2# 12V 40A,45A,50A,55A |
2 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-41080 |
2A,3A..AL20,25..LHD..EUG 12V 50A |
1 | ||
| 27410-15030 |
2A,3A#..AL2# 12V 40A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-26111 |
2A,3A#..AL2# 12V 40A,45A,50A,55A |
1 | ||
| 27412 - COLLAR, SPACER(FOR ALTERNATOR PULLEY) | ||||
| 27412-44030 |
2A,3A#..AL2# 12V 40A,45A,50A,55A |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-34030 |
2A,3A#..AL2# 12V 40A,45A,50A,55A |
1 | ||
| Common parts | ||||
| 27378-15030 | ||||
| 27387-45022 | ||||
| 27387-45110 | ||||
| 90099-00912 | ||||
| 90099-04300 | ||||
| 90099-05060 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90101-10093 | ||||
| 90179-06158 | ||||
| 90179-10041 | ||||
| 90201-08010 | ||||
| 90201-08011 | ||||
| 91611-60835 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94511-01400 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
| 94612-11001 | ||||
