AL20L-ZGHDSW (1982)

Toyota Tercel

Production May 1982 - Aug 1984
Engine 2A
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8205- )

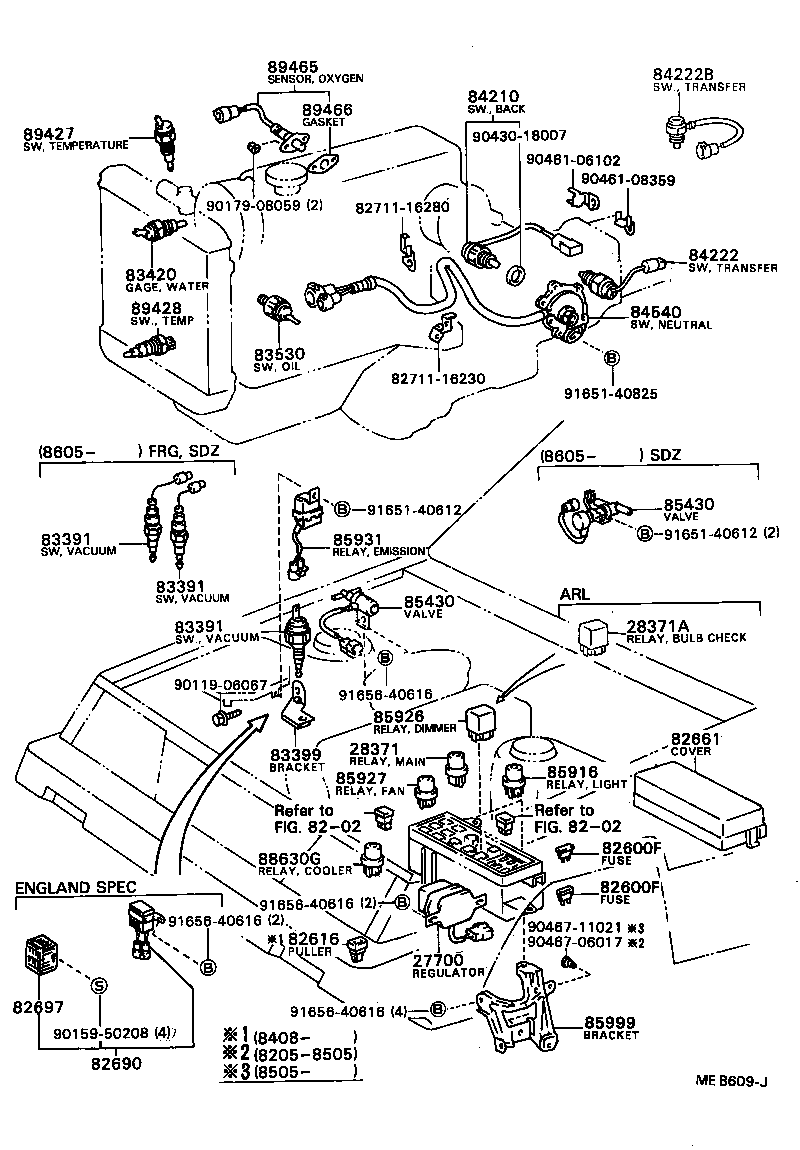

Click highlighted areas on diagram

diagram 27700 28371 28371A 8202 8202 82600F 82600F 82616 82661 82690 82697 8271116230 8271116280 83391 83391 83391 83399 83420 83530 84210 84222 84222B 84540 85430 85430 85916 85926 85927 85931 85999 88630G 89427 89428 89465 89466 9011906067 9015950208 9017908059 9043018007 9046106102 9046108359 9046706017 9046711021 9165140612 9165140612 9165140825 9165640616 9165640616 9165640616 9165640616
Part # Description Qty Price
27700 - REGULATOR ASSY, GENERATOR
27700-15020

2A,3A#..AL2#

 1
28371 - RELAY, IGNITION, NO.1
90987-02002

2A,3A#..AL2#

 1
82600F - FUSE, FUSE BLOCK
90982-09002

AL2#

10A,10A

 4
90982-09003

AL2#

15A,15A

 11
90982-09005

AL2#

7.5A,7.5A

 8
90982-09004

AL2#

20A,YELLOW,20A

 3
82600F - FUSE, FUSE BLOCK
90982-09002

AL2#

10A,10A

 4
90982-09003

AL2#

15A,15A

 11
90982-09005

AL2#

7.5A,7.5A

 8
90982-09004

AL2#

20A,YELLOW,20A

 3
82616 - PULLER, FUSE
82616-12010

AL2#

 1
82661 - COVER, RELAY BLOCK, NO.1
82661-16080

AL2#..LHD..EUR

 1
83420 - GAGE ASSY, WATER TEMPERATURE SENDER
83420-20020

AL2#

 1
83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
83530-12040

AL2#

 1
84540 - SWITCH ASSY, NEUTRAL START
84540-16020

AL20,21..3FC

 1
85916 - RELAY, LIGHT CONTROL
90987-01003

AL2#

 2
85926 - RELAY, HEADLAMP DIMMER
85926-30020

AL2#..EUR

 1
85927 - RELAY, COOLING FAN
90987-03001

AL2#

 1
85999 - BRACKET, COMBINATION RELAY
85999-16030

AL2#

 1
88630G - RELAY ASSY, COOLER
90987-01003

AL2#

 1
89428 - SWITCH, TEMPERATURE DETECT, NO.2
89428-15030

AL2#

 1
Common parts
82711-16230
82711-16280
90119-06067
90159-50208
90179-08059
90430-18007
90461-06102
90461-08359
90467-06017
90467-11021
91651-40612
91651-40825
91656-40616

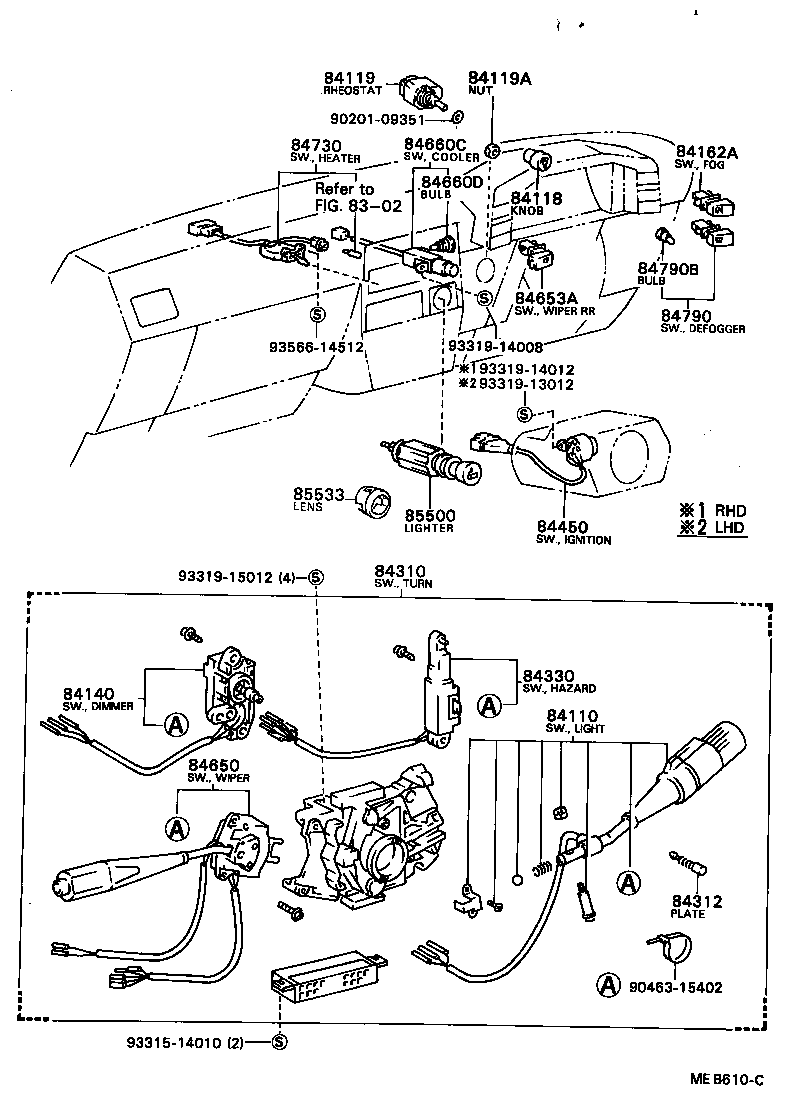

Linked diagrams
8202

(8205- )

Click highlighted areas on diagram

diagram 8302 84110 84118 84119 84119A 84140 84162A 84310 84312 84330 84450 84650 84653A 84660C 84660D 84730 84790 84790B 85500 85533 9020109351 9046315402 9331514010 9331913012 9331914008 9331914012 9331915012 9356614512
Part # Description Qty Price
84110 - SWITCH ASSY, LIGHT CONTROL, NO.1
84112-19375

AL2#..LHD..(DLX,GL)

W/*IW

 1
84112-19395

AL2#..LHD..(DLX,STD)

TOKAIRIKA

 1
84140 - SWITCH ASSY, HEADLAMP DIMMER
84140-19165

AL2#..LHD..(DLX,GL)

W/*IW

 1
84140-19185

AL2#..LHD..(DLX,STD)

TOKAIRIKA

 1
84162A - SWITCH, REAR FOG LAMP
84160-16010

AL2#..EUR

 1
84310 - SWITCH ASSY, TURN SIGNAL
84310-16070

AL2#..LHD..(DLX,GL)

W/*IW

 1
84310-16110

AL2#..LHD..(DLX,STD)

TOKAIRIKA

 1
84312 - PLATE, HORN CONTACT
84312-32020

AL2#..DLX,GL

MATSUSHITA

 1
84312-32010

AL2#..LHD..(DLX,STD)

TOKAIRIKA

 1
84330 - SWITCH ASSY, HAZARD WARNING SIGNAL
84332-19135

AL2#..LHD..(DLX,GL)

W/*IW

 1
84332-19155

AL2#..LHD..(DLX,STD)

TOKAIRIKA

 1
84450 - SWITCH ASSY, IGNITION OR STARTER
84450-16030

AL2#..LHD

 1
84650 - SWITCH ASSY, WINDSHIELD WIPER
84652-19625

AL2#..LHD..(DLX,GL)

W/*IW

 1
84652-19665

AL2#..LHD..(DLX,STD)

TOKAIRIKA

 1
84653A - SWITCH, REAR WIPER
84653-16020

AL2#

 1
84660C - SWITCH, COOLER
84660-16030

AL2#..LHD

 1
84660D - BULB(FOR COOLER SWITCH)
88607-32010

AL2#..LHD

 1
84730 - SWITCH ASSY, HEATER BLOWER
84732-16030

AL2#

 1
84790 - SWITCH ASSY, REAR WINDOW DEFOGGER
84790-16030

AL2#

 1
84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH)
84999-10110

AL2#

12V 1.12W

 1
85500 - LIGHTER ASSY, CIGARETTE
85500-16070

AL2#..EUR

 1
Common parts
90201-09351
90463-15402
93315-14010
93319-13012
93319-14008
93319-14012
93319-15012
93566-14512
Linked diagrams
8302

(8205- )

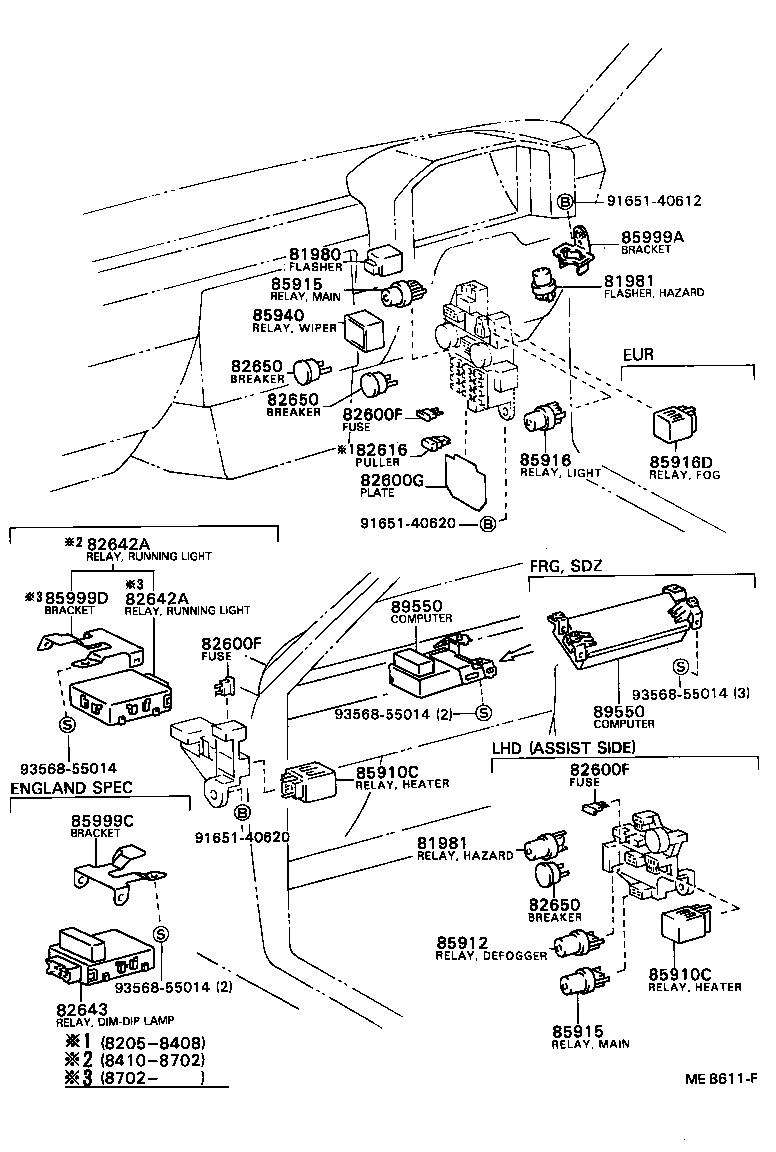

Click highlighted areas on diagram

diagram 81980 81981 81981 82600F 82600F 82600F 82600G 82616 82642A 82642A 82643 82650 82650 82650 85910C 85910C 85912 85915 85915 85916 85916D 85940 85999A 85999C 85999D 89550 89550 9165140612 9165140620 9165140620 9356855014 9356855014 9356855014 9356855014
Part # Description Qty Price
81980 - FLASHER ASSY, TURN SIGNAL
81980-22070

AL2#

L=30X40

 1
81981 - FLASHER ASSY, HAZARD WARNING SIGNAL
90987-03001

AL20..3FC..DLX..EUG;AL20..5DS..LHD..3FC..GL;AL20,25..LHD..MTM..(DLX,GL)..EUR

*FRG OR FRANCE SPEC

 1
81981 - FLASHER ASSY, HAZARD WARNING SIGNAL
90987-03001

AL20..3FC..DLX..EUG;AL20..5DS..LHD..3FC..GL;AL20,25..LHD..MTM..(DLX,GL)..EUR

*FRG OR FRANCE SPEC

 1
82600F - FUSE, FUSE BLOCK
90982-09002

AL2#

10A,10A

 4
90982-09003

AL2#

15A,15A

 11
90982-09005

AL2#

7.5A,7.5A

 8
90982-09004

AL2#

20A,YELLOW,20A

 3
82600F - FUSE, FUSE BLOCK
90982-09002

AL2#

10A,10A

 4
90982-09003

AL2#

15A,15A

 11
90982-09005

AL2#

7.5A,7.5A

 8
90982-09004

AL2#

20A,YELLOW,20A

 3
82600F - FUSE, FUSE BLOCK
90982-09002

AL2#

10A,10A

 4
90982-09003

AL2#

15A,15A

 11
90982-09005

AL2#

7.5A,7.5A

 8
90982-09004

AL2#

20A,YELLOW,20A

 3
82616 - PULLER, FUSE
82616-12010

AL2#

 1
82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1
82650-20011

AL2#

30A,MATSUSHITA

 1
82650-20011

AL2#

30A,TOKAIRIKA

 2
82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1
82650-20011

AL2#

30A,MATSUSHITA

 1
82650-20011

AL2#

30A,TOKAIRIKA

 2
82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1
82650-20011

AL2#

30A,MATSUSHITA

 1
82650-20011

AL2#

30A,TOKAIRIKA

 2
85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR)
85913-30020

AL2#

 1
85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR)
85913-30020

AL2#

 1
85912 - RELAY, DEFOGGER
90987-02004

AL2#..LHD

 1
85915 - RELAY, MAIN
90987-02002

AL20..LHD..5F..DLX..EUG;AL20..3DS..3FC..DLX..EUG

W/*SNR,GERMAN SPECIAL SPEC

 1
85915 - RELAY, MAIN
90987-02002

AL20..LHD..5F..DLX..EUG;AL20..3DS..3FC..DLX..EUG

W/*SNR,GERMAN SPECIAL SPEC

 1
85916 - RELAY, LIGHT CONTROL
90987-01003

AL2#

 2
85940 - RELAY ASSY, WINDSHIELD WIPER
85940-12020

AL2#..DLX,GL

 1
Common parts
91651-40612
91651-40620
93568-55014

(8205- )

Click highlighted areas on diagram

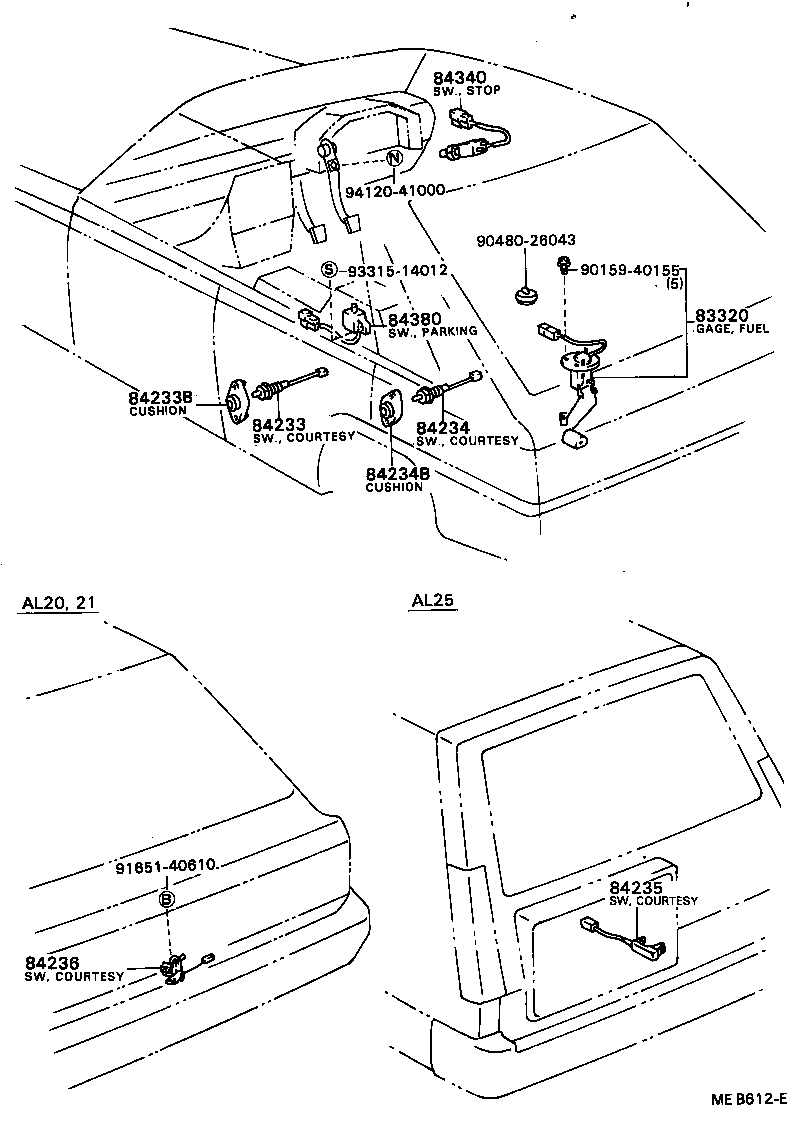

diagram 83320 84233 84233B 84234 84234B 84235 84236 84340 84380 9015940155 9048026043 9165140610 9331514012 9412041000
Part # Description Qty Price
83320 - GAGE ASSY, FUEL SENDER
83320-19605

AL20,21..DLX,GL

 1
83320-19665

AL20,21..DLX,GL

 1
83320-19705

AL20,21..DLX,GL

 1
84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84231-20080

AL2#

 2
84233B - CUSHION, COURTESY SWITCH (FOR FRONT DOOR)
84234-22010

AL2#

 2
84236 - SWITCH ASSY, COURTESY LAMP(FOR LUGGAGE COMPARTMENT ROOM
84231-16020

AL20,21

 1
84340 - SWITCH ASSY, STOP LAMP
84340-32010

AL2#

 1
84380 - SWITCH ASSY, BRAKE WARNING TEST
84550-24010

AL2#

 1
Common parts
90159-40155
90480-26043
91651-40610
93315-14012
94120-41000
