AL20L-ZGHDSW (1982)

Toyota Tercel

Production May 1982 - Aug 1984
Engine 2A
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8205- )

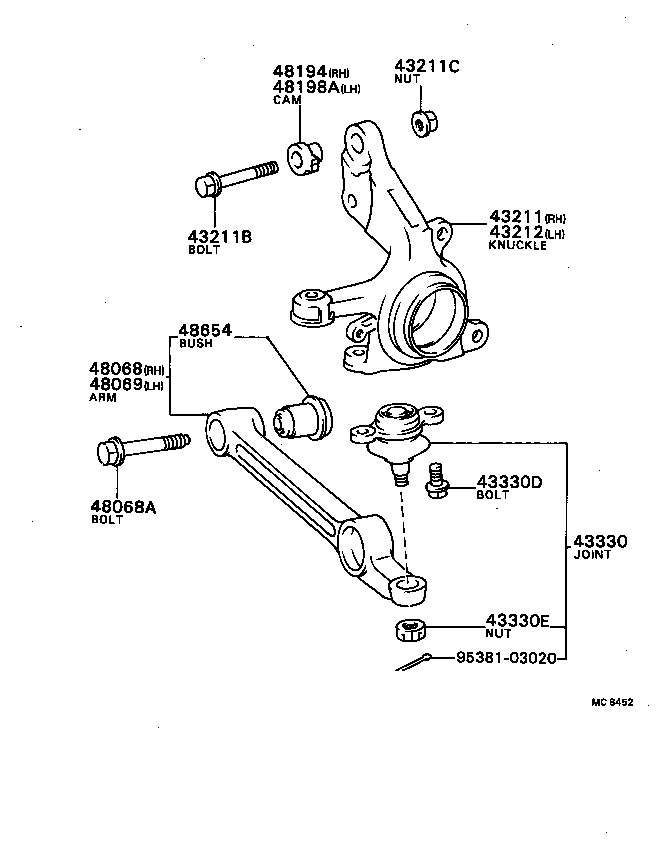

Click highlighted areas on diagram

diagram 43211 43211B 43211C 43212 43330 43330D 43330E 48068 48068A 48069 48194 48198A 48654 9538103020
Part # Description Qty Price
43211 - KNUCKLE, STEERING, RH
43211-16020

AL2#

 1
43211B - BOLT (FOR ABSORBER SETTING)
90105-12042

AL2#

 4
43211C - NUT (FOR ABSORBER SETTING)
90179-12025

AL2#..EUR,GEN

 4
43212 - KNUCKLE, STEERING, LH
43212-16020

AL2#

 1
43330 - JOINT ASSY, LOWER BALL, FRONT
43330-19025

AL2#

 2
43330D - BOLT (FOR FRONT LOWER BALL JOINT)
90105-10057

AL2#

 4
43330E - NUT, CASTLE (FOR FRONT LOWER BALL JOINT SETTING)
94146-71200

AL2#

 2
48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48068-16030

AL2#

 1
48068A - BOLT(FOR FRONT SUSPENSION LOWER ARM)
90105-12049

AL2#

 2
48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48069-16030

AL2#

 1
48194 - CAM, CAMBER ADJUST, RH
48194-16010

AL2#

 1
48198A - CAM, CAMBER ADJUST, LH
48198-16010

AL2#

 1
48654 - BUSH, LOWER ARM
48654-16040

AL2#

 2
Common parts
95381-03020
