AL20L-ZGHDS (1982)

Toyota Tercel

Production May 1982 - Aug 1984
Engine 2A
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8205- )

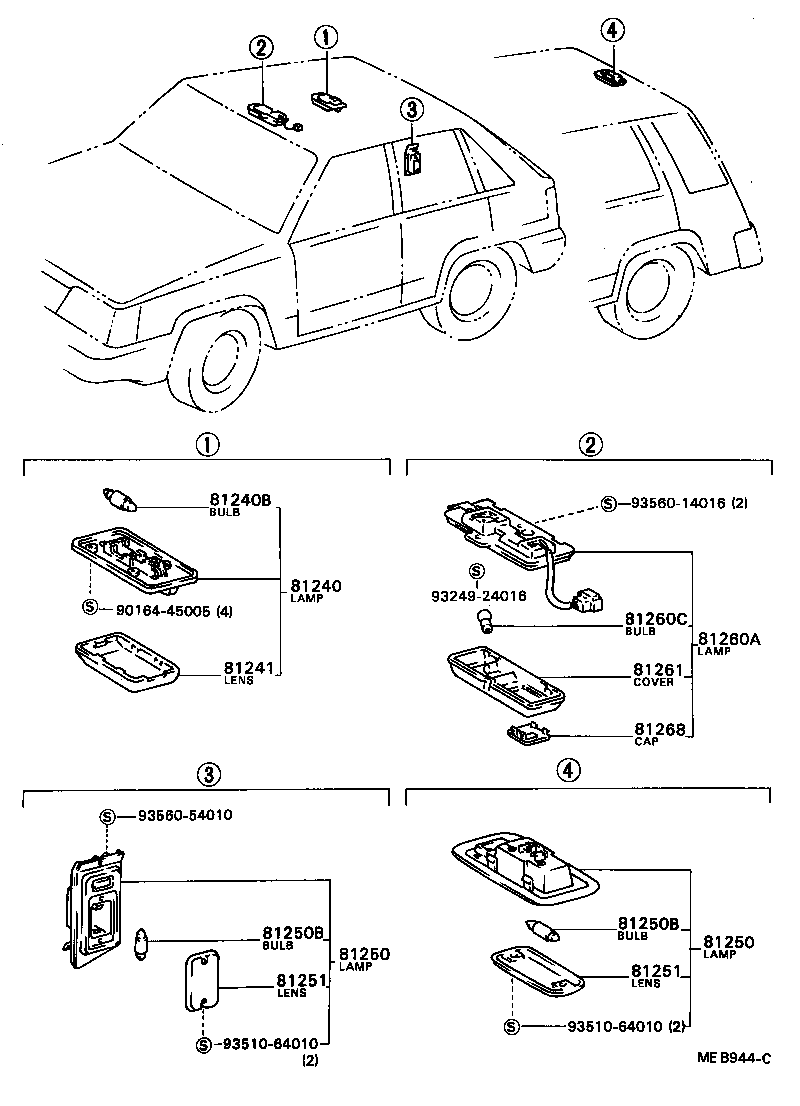

Click highlighted areas on diagram

diagram 81240 81240B 81241 81250 81250 81250B 81250B 81251 81251 81260A 81260C 81261 81268 9016445005 9324924016 9351064010 9351064010 9356014016 9356054010
Part # Description Qty Price
81240 - LAMP ASSY, ROOM, NO.1
81240-1601018

AL2#

IVORY,IVORY,TRIM1#,3#,4#

 1
81240B - BULB, ROOM LAMP, NO.1
99132-12100

AL2#

12V 10W,12V 10W

 1
81241 - LENS, ROOM LAMP, NO.1
81241-16010

AL2#

 1
81250 - LAMP ASSY, ROOM, NO.2
81250-16030

AL20,21

 1
81250 - LAMP ASSY, ROOM, NO.2
81250-16030

AL20,21

 1
81250B - BULB, ROOM LAMP, NO.2
99132-13050

AL2#

12V 5W,12V 5W

 1
81250B - BULB, ROOM LAMP, NO.2
99132-13050

AL2#

12V 5W,12V 5W

 1
81251 - LENS, ROOM LAMP, NO.2
81251-14030

AL2#

 1
81251 - LENS, ROOM LAMP, NO.2
81251-14030

AL2#

 1
81260A - LAMP ASSY, MAP
81260-16030

AL20..GEN;AL20,21..GL;AL25..EUR,GEN

 1
81260C - BULB(FOR MAP LAMP)
90981-12014

AL25;AL20..GEN;AL20,21..GL

12V 10W,12V 10W

 2
81261 - LENS AND COVER, MAP LAMP
81261-16030

AL20..GEN;AL20,21..GL;AL25..EUR,GEN

 1
81261-2006018

AL25;AL20..GEN;AL20,21..GL

IVORY,IVORY,TRIM1#,3#,4#

 1
81268 - CAP MAP LAMP
81268-2006008

AL20..GEN;AL20,21..GL;AL25..EUR,GEN

IVORY,IVORY,TRIM1#,3#,4#

 1
Common parts
90164-45005
93249-24016
93510-64010
93560-14016
93560-54010
