AL20L-ZGHDS (1982)

Toyota Tercel

Production May 1982 - Aug 1984
Engine 2A
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8205-8408)AL20,21

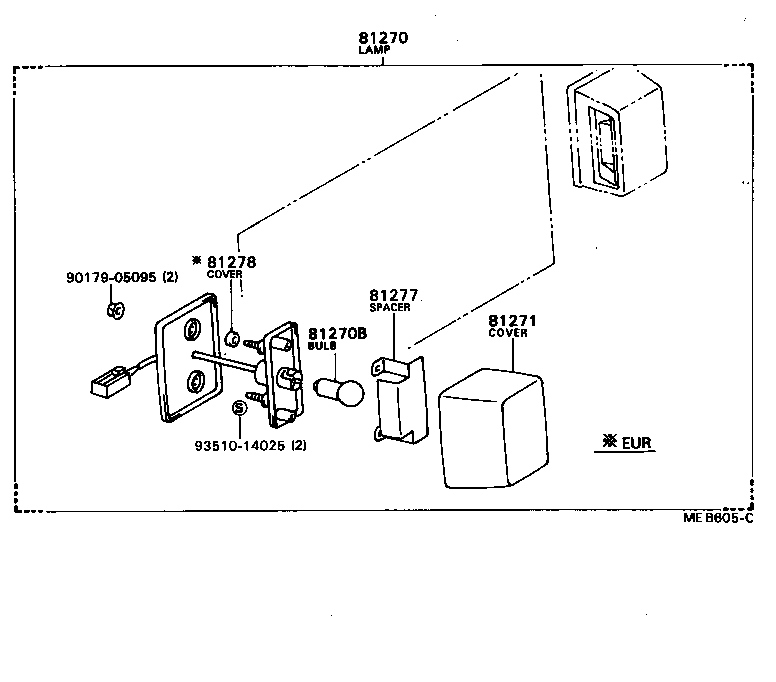

Click highlighted areas on diagram

diagram 81270 81270B 81271 81277 81278 9017905095 9351014025
Part # Description Qty Price
81270 - LAMP ASSY, LICENSE PLATE
81270-19826

AL20..GEN

RH

 1
81270-19825

AL20..GEN

RH

 1
81690-19186

AL20..GEN

LH

 1
81690-19185

AL20..GEN

LH

 1
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-11100

AL20,21

12V 10W,12V 10W

 2
81271 - LENS, LICENSE PLATE LAMP
81271-10141

AL20..GEN

 2
81271-16120

AL20..GEN

 2
81277 - SPACER, LICENSE PLATE LAMP RIM AND LENS
81277-16120

AL20,21

 2
Common parts
90179-05095
93510-14025
