AL20L-ZGHDS (1982)

Toyota Tercel

Production May 1982 - Aug 1984
Engine 2A
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8205-8408)

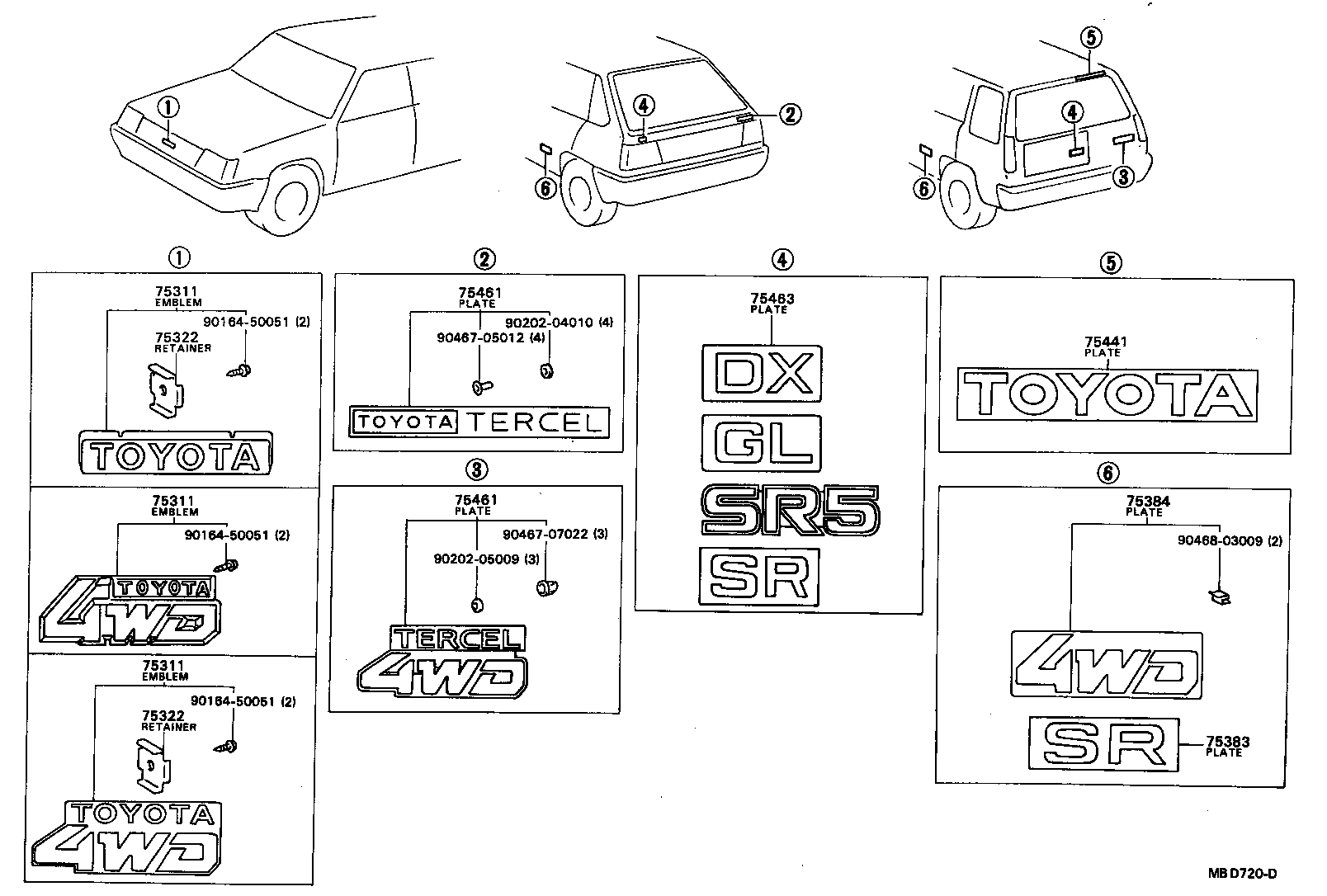

Click highlighted areas on diagram

diagram 75311 75311 75311 75322 75322 75383 75384 75441 75461 75461 75463 9016450051 9016450051 9016450051 9020204010 9020205009 9046705012 9046707022 9046803009
Part # Description Qty Price
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75311-80021

AL20,21

 1
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75311-80021

AL20,21

 1
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75311-80021

AL20,21

 1
75322 - RETAINER, RADIATOR GRILLE NAME PLATE
75324-16050

AL20,21

 1
75322 - RETAINER, RADIATOR GRILLE NAME PLATE
75324-16050

AL20,21

 1
75461 - PLATE, REAR NAME, NO.2 (MODEL MARK)
75441-16060

AL20,21

 1
75461 - PLATE, REAR NAME, NO.2 (MODEL MARK)
75441-16060

AL20,21

 1
75463 - PLATE, REAR NAME, NO.4 (GRADE MARK)
75442-16110

AL20,21..DLX

 1
Common parts
90164-50051
90202-04010
90202-05009
90467-05012
90467-07022
90468-03009
