AL11R-ZGKRS (1979)
Toyota Tercel
Production
Jan 1979
-
Aug 1980
Engine
2A
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7901-8008)RHD

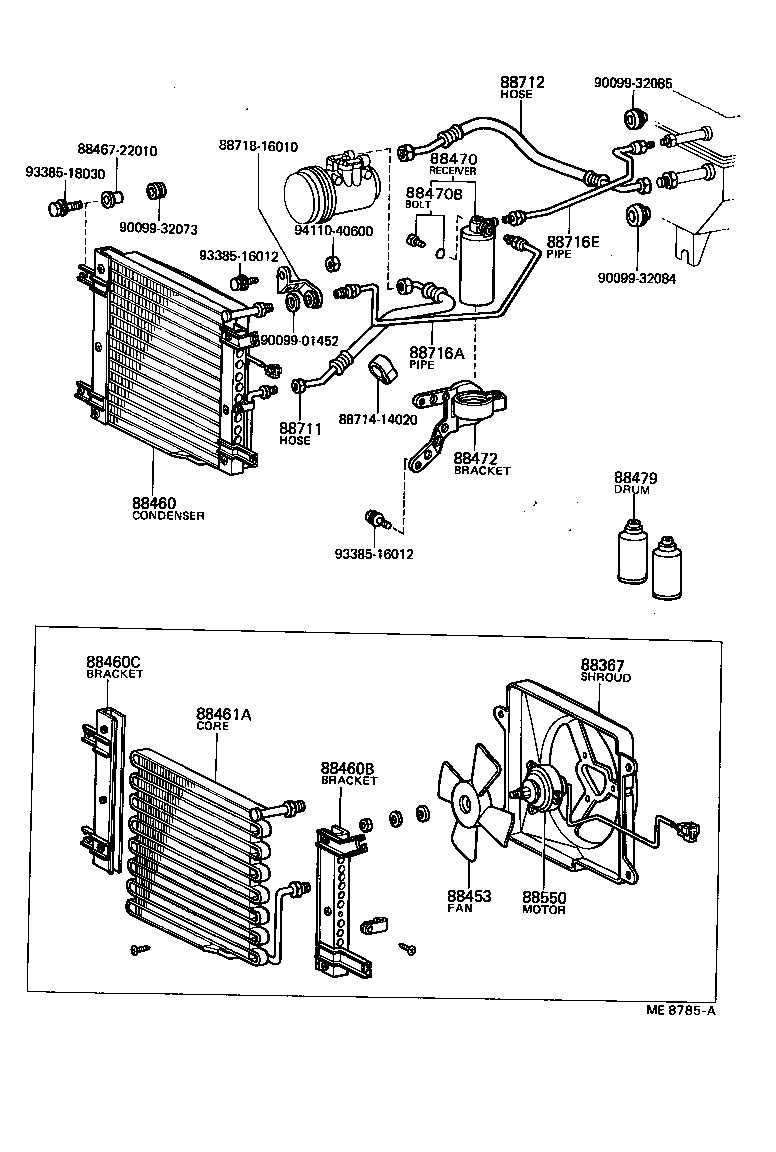

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88367 - SHROUD, COOLER BLOWER FAN | ||||
| 88454-16010 |
AL11..RHD |
1 | ||
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 88453-16010 |
AL11..GEN |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-16010 |
AL11..RHD |
1 | ||
| 88460B - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88463-16010 |
AL11..RHD |
1 | ||
| 88460C - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88463-16020 |
AL11..RHD |
1 | ||
| 88461A - CORE, COOLER CONDENSER | ||||
| 88461-16010 |
AL11..RHD |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88471-16010 |
AL11..GEN |
1 | ||
| 88470B - BOLT, FUSE | ||||
| 90099-04579 |
AL11 |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-16010 |
AL11..RHD |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02001 |
AL11..GEN 400G |
2 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 88550-16020 |
AL11..GEN |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-16010 |
AL11..GEN |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-16010 |
AL11..RHD |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-16010 |
AL11..RHD |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-16020 |
AL11..RHD |
1 | ||
| Common parts | ||||
| 88467-22010 | ||||
| 88714-14020 | ||||
| 88718-16010 | ||||
| 90099-01452 | ||||
| 90099-32073 | ||||
| 90099-32084 | ||||
| 90099-32085 | ||||
| 93385-16012 | ||||
| 93385-18030 | ||||
| 94110-40600 | ||||
