AL11R-ZGKRS (1979)

Toyota Tercel

Production Jan 1979 - Aug 1980
Engine 2A
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7901- )RHD

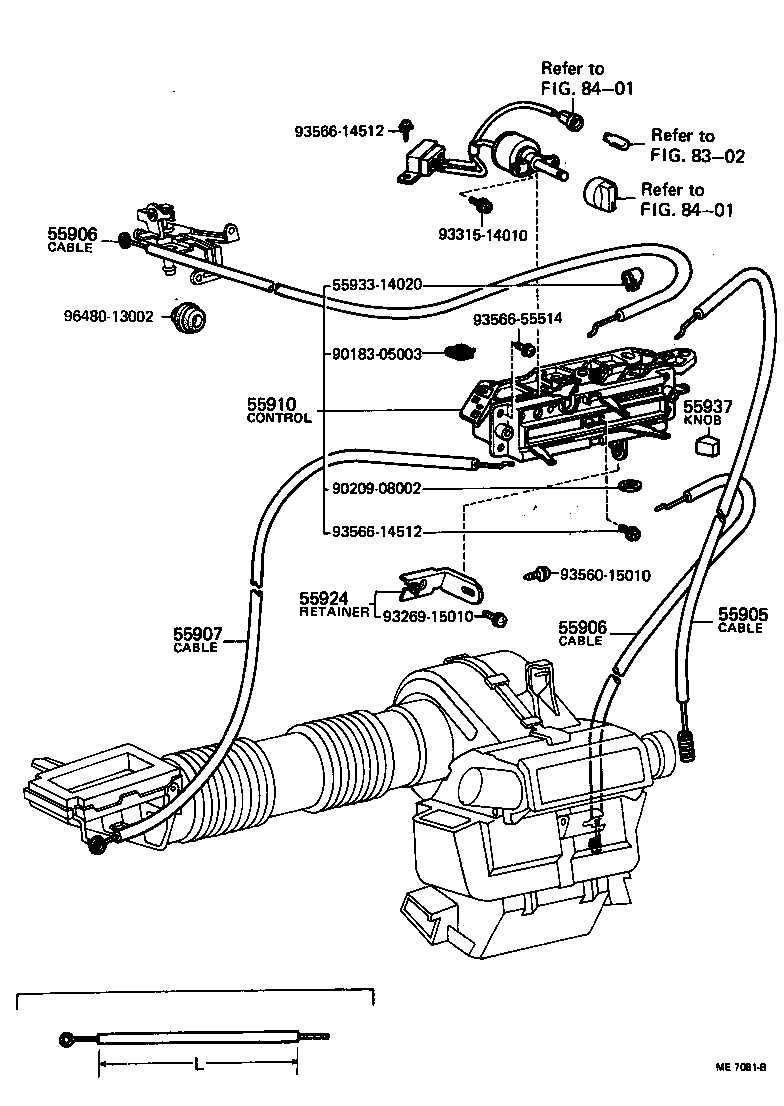

Click highlighted areas on diagram

diagram 55905 55906 55906 55907 55910 55924 5593314020 55937 8302 8401 8401 9018305003 9020908002 9326915010 9331514010 9356015010 9356614512 9356614512 9356655514 9648013002
Part # Description Qty Price
55905 - CABLE SUB-ASSY, DEFROST CONTROL
55906-16010

AL11..RHD

L=190

 1
55906 - CABLE SUB-ASSY, HEATER CONTROL
55909-16010

AL11..RHD

L=680

 1
55907-16010

AL11..RHD

L=510

 1
55906 - CABLE SUB-ASSY, HEATER CONTROL
55909-16010

AL11..RHD

L=680

 1
55907-16010

AL11..RHD

L=510

 1
55907 - CABLE SUB-ASSY, HEATER AIR INLET BUTTERFLY
55908-16010

AL11..RHD

L=530

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-16902

AL11..RHD

EXCL/CABLE

 1
55924 - RETAINER, HEATER CONTROL, LOWER
55924-16010

AL11..RHD

 1
55937 - KNOB, HEATER CONTROL LEVER
55905-12060

AL11

 3
Common parts
55933-14020
90183-05003
90209-08002
93269-15010
93315-14010
93560-15010
93566-14512
93566-55514
96480-13002
Linked diagrams
8302
8401

(7901- )RHD

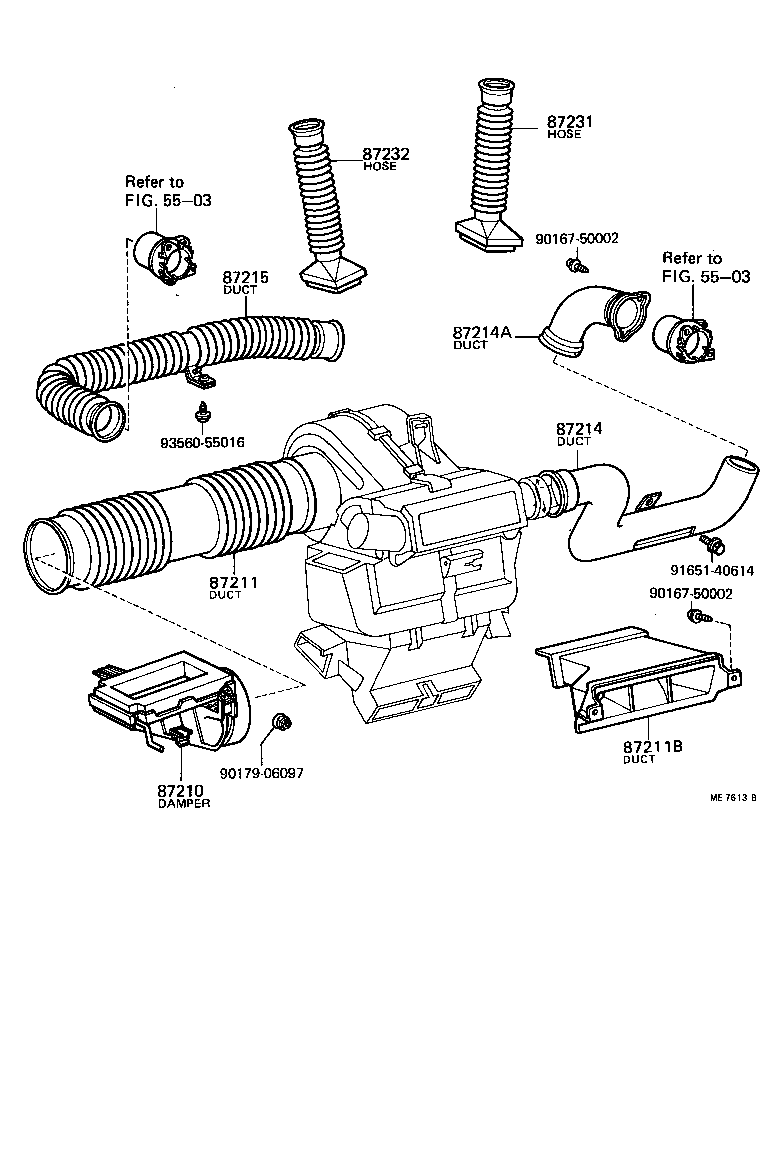

Click highlighted areas on diagram

diagram 5503 5503 87210 87211 87211B 87214 87214A 87215 87231 87232 9016750002 9016750002 9017906097 9165140614 9356055016
Part # Description Qty Price
87210 - DAMPER ASSY, AIR
87210-16010

AL11..RHD

 1
87211 - DUCT, AIR, NO.1
87211-16010

AL11..RHD

 1
87211B - DUCT, AIR, NO.3
55087-16010

AL11..RHD

 1
87214 - DUCT, AIR, SIDE NO.1 RH
55085-16010

AL11..RHD

 1
87214A - DUCT, AIR, SIDE NO.2 RH
55843-16010

AL11..RHD

 1
87215 - DUCT, AIR, SIDE NO.1 LH
55086-16010

AL11..RHD

 1
87231 - HOSE, HEATER DEFROSTER, RH
87231-16010

AL11..RHD

 1
87232 - HOSE, HEATER DEFROSTER, LH
87231-16010

AL11..RHD

 1
Common parts
90167-50002
90179-06097
91651-40614
93560-55016
Linked diagrams
5503
