AL11R-ZGKRS (1979)

Toyota Tercel

Production Jan 1979 - Aug 1980
Engine 2A
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7901-8008)3DS

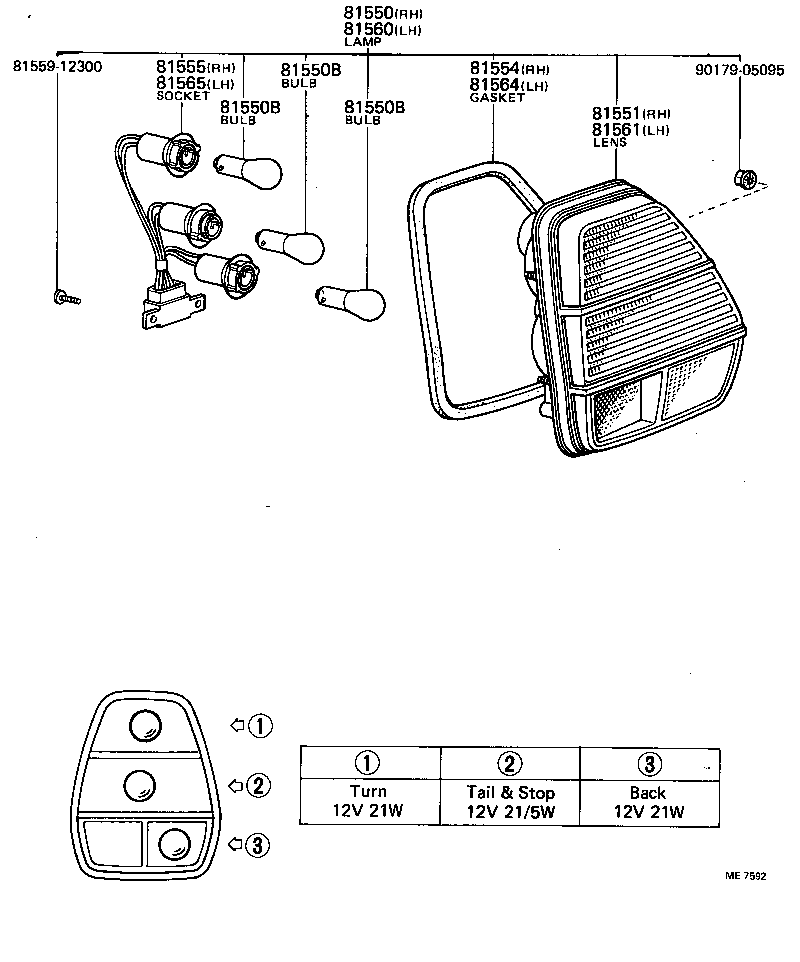

Click highlighted areas on diagram

diagram 81550 81550B 81550B 81550B 81551 81554 81555 8155912300 81560 81561 81564 81565 9017905095
Part # Description Qty Price
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-80022

AL11..3DS

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11210

AL11

12V 21W,12V 21W

 4
99132-21210

AL11

12V 21/5W,12V 21/5W

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11210

AL11

12V 21W,12V 21W

 4
99132-21210

AL11

12V 21/5W,12V 21/5W

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11210

AL11

12V 21W,12V 21W

 4
99132-21210

AL11

12V 21/5W,12V 21/5W

 2
81551 - LENS, REAR COMBINATION LAMP, RH
81553-16120

AL11..3DS

AMBER-RED-CLEAR

 1
81554 - GASKET, REAR COMBINATION LAMP BODY, RH
81554-16010

AL11..3DS

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-16120

AL11..3DS

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-80024

AL11..3DS

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81563-16120

AL11..3DS

AMBER-RED-CLEAR

 1
81564 - GASKET, REAR COMBINATION LAMP BODY, LH
81554-16010

AL11..3DS

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-16120

AL11..3DS

 1
Common parts
81559-12300
90179-05095
