AL11R-ZGKRS (1979)
Toyota Tercel
Production
Jan 1979
-
Aug 1980
Engine
2A
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7901- )RHD

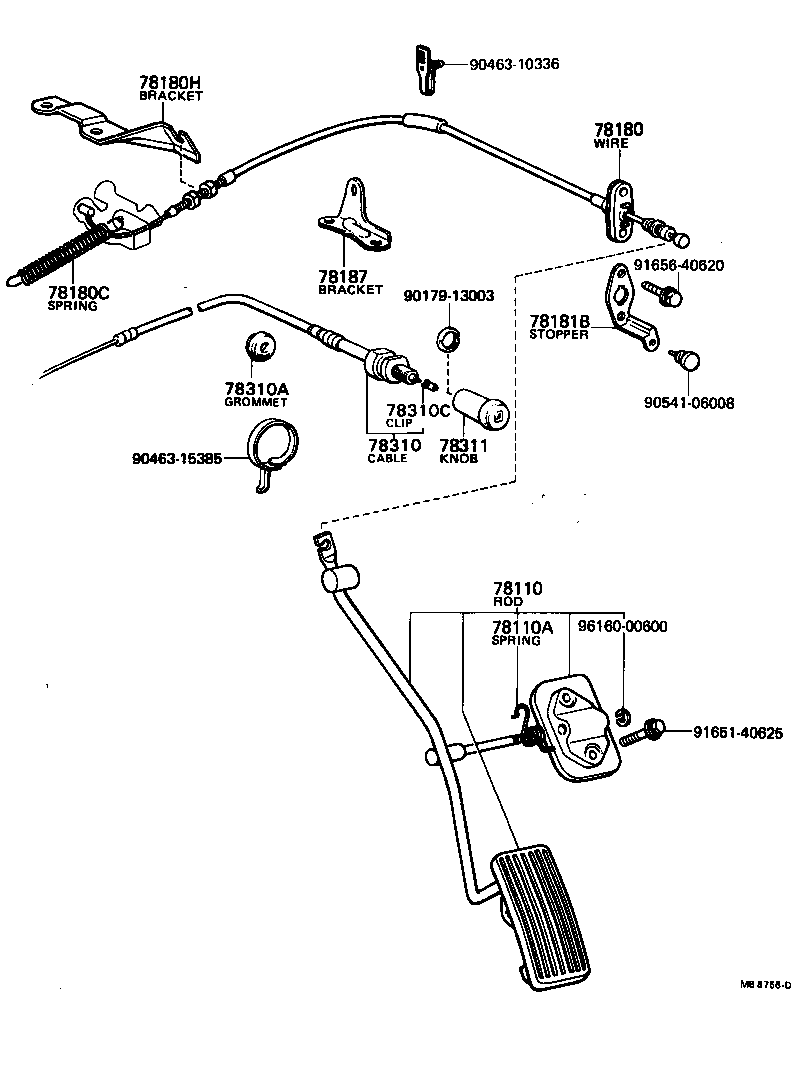

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78110 - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-16010 |
AL11..RHD |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90508-18398 |
AL11..RHD |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-16010 |
AL11..RHD |
1 | ||
| 78180C - SPRING, TENSION (FOR ACCELERATOR WIRE) | ||||
| 90507-12004 |
AL11 |
1 | ||
| 78180H - BRACKET, ACCELERATOR CONTROL CABLE | ||||
| 78184-16010 |
AL11..RHD |
1 | ||
| 78181B - STOPPER, ACCELERATOR IDLE ADJUSTING | ||||
| 78181-16010 |
AL11 |
1 | ||
| 78187 - BRACKET, ACCELERATOR PULL BACK SPRING | ||||
| 78187-16010 |
AL11..RHD |
1 | ||
| 78310 - CABLE ASSY, CHOKE | ||||
| 78310-16010 |
AL11..RHD |
1 | ||
| 78310A - GROMMET, CHOKE CABLE | ||||
| 90480-13055 |
AL11..RHD |
1 | ||
| 78311 - KNOB, CHOKE CONTROL CABLE | ||||
| 78311-12020 |
AL11..RHD |
1 | ||
| Common parts | ||||
| 90179-13003 | ||||
| 90463-10336 | ||||
| 90463-15385 | ||||
| 90541-06008 | ||||
| 91651-40625 | ||||
| 91656-40620 | ||||
| 96160-00600 | ||||
