AL11R-ZGKRS (1979)

Toyota Tercel

Production Jan 1979 - Aug 1980
Engine 2A
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7901-8008)

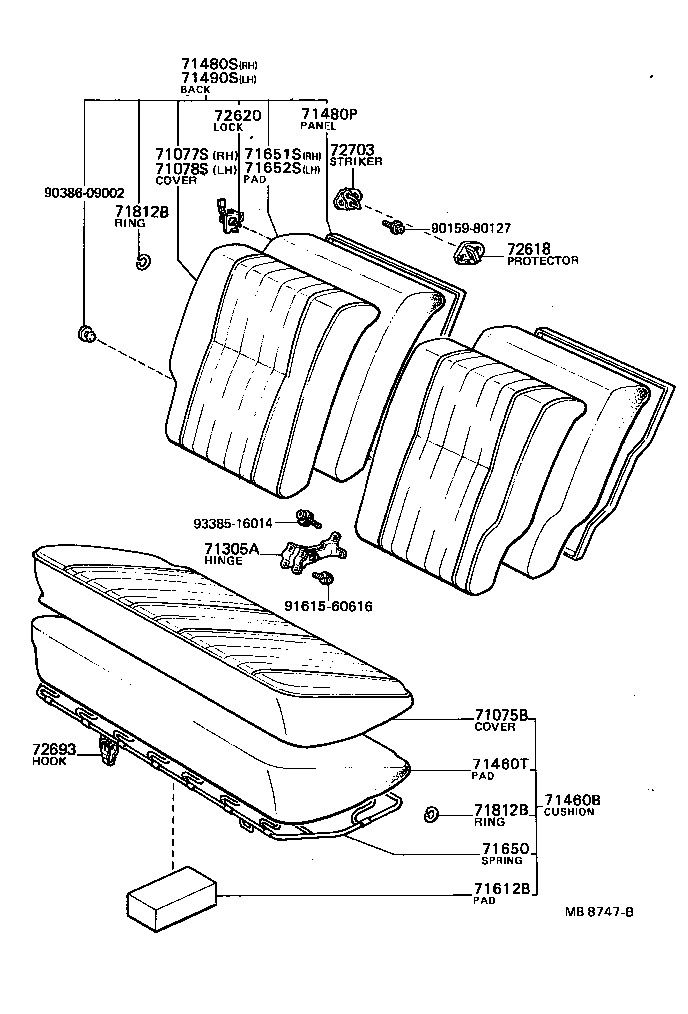

Click highlighted areas on diagram

diagram 71075B 71077B 71460B 71460T 71480B 71480P 71612B 71650 71651B 71812B 71812B 72693 9011906121
Part # Description Qty Price
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71075-1602001

AL11..(2DS,3DS)..STD

PF,BLACK,BLACK,TRIM2#

 1
71075-1606001

AL11..2DS,3DS

FB,BLACK,BLACK,TRIM2#

 1
71075-1602006

AL11..(2DS,3DS)..STD

PF,LIGHT BROWN,BROWN,TRIM4#

 1
71075-1606006

AL11..2DS,3DS

FB,LIGHT BROWN,BROWN,TRIM4#

 1
71075-1606004

AL11..2DS,3DS

FB,BLUE,BLUE,TRIM8#

 1
71075-1602004

AL11..(2DS,3DS)..STD

PF,BLUE,BLUE,TRIM8#

 1
71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
71460-1602006

AL11..(2DS,3DS)..STD

PF,LIGHT BROWN,BROWN,TRIM4#

 1
71460-1606006

AL11..2DS,3DS

FB,LIGHT BROWN,BROWN,TRIM4#

 1
71460-1602004

AL11..(2DS,3DS)..STD

PF,BLUE,BLUE,TRIM8#

 1
71460-1606004

AL11..2DS,3DS

FB,BLUE,BLUE,TRIM8#

 1
71460-1602001

AL11..(2DS,3DS)..STD

PF,BLACK,BLACK,TRIM2#

 1
71460-1606001

AL11..2DS,3DS

FB,BLACK,BLACK,TRIM2#

 1
71460T - PAD SUB-ASSY, REAR SEAT CUSHION, NO.1
71405-16012

AL11..2DS,3DS

 1
71480P - PANEL SUB-ASSY, REAR SEAT BACK
71018-16010

AL11..3DS

LH

 1
71017-16010

AL11..3DS

RH

 1
71612B - PAD, REAR SEAT CUSHION, B
71615-16011

AL11

 1
71650 - SPRING ASSY, REAR SEAT CUSHION
71650-16011

AL11..2DS,3DS

 1
71812B - CLIP(FOR REAR SEAT CUSHION COVER)
90468-18071

AL11

 1
71812B - CLIP(FOR REAR SEAT CUSHION COVER)
90468-18071

AL11

 1
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-10020

AL11

 2
Common parts
90119-06121

(7901-8008)3DS

Click highlighted areas on diagram

diagram 71075B 71077S 71078S 71305A 71460B 71460T 71480P 71480S 71490S 71612B 71650 71651S 71652S 71812B 71812B 72618 72620 72693 72703 9015980127 9038609002 9161560616 9338516014
Part # Description Qty Price
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71075-1602001

AL11..(2DS,3DS)..STD

PF,BLACK,BLACK,TRIM2#

 1
71075-1606001

AL11..2DS,3DS

FB,BLACK,BLACK,TRIM2#

 1
71075-1602006

AL11..(2DS,3DS)..STD

PF,LIGHT BROWN,BROWN,TRIM4#

 1
71075-1606006

AL11..2DS,3DS

FB,LIGHT BROWN,BROWN,TRIM4#

 1
71075-1606004

AL11..2DS,3DS

FB,BLUE,BLUE,TRIM8#

 1
71075-1602004

AL11..(2DS,3DS)..STD

PF,BLUE,BLUE,TRIM8#

 1
71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE)
71077-1602006

AL11..3DS..STD

PF,LIGHT BROWN,BROWN,TRIM4#

 1
71077-1602001

AL11..3DS..STD

PF,BLACK,BLACK,TRIM2#

 1
71077-1606001

AL11..3DS

FB,BLACK,BLACK,TRIM2#

 1
71077-1602004

AL11..3DS..STD

PF,BLUE,BLUE,TRIM8#

 1
71077-1606006

AL11..3DS

FB,LIGHT BROWN,BROWN,TRIM4#

 1
71077-1602101

AL11..3DS..STD

PF,BLACK,BLACK,TRIM2#

 1
71077-1606004

AL11..3DS

FB,BLUE,BLUE,TRIM8#

 1
71077-1602106

AL11..3DS..STD

PF,LIGHT BROWN,BROWN,TRIM4#

 1
71077-1606101

AL11..3DS

FB,BLACK,BLACK,TRIM2#

 1
71077-1606106

AL11..3DS

FB,LIGHT BROWN,BROWN,TRIM4#

 1
71077-1602104

AL11..3DS..STD

PF,BLUE,BLUE,TRIM8#

 1
71077-1606104

AL11..3DS

FB,BLUE,BLUE,TRIM8#

 1
71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE)
71078-1602001

AL11..3DS..STD

PF,BLACK,BLACK,TRIM2#

 1
71078-1606001

AL11..3DS

FB,BLACK,BLACK,TRIM2#

 1
71078-1602006

AL11..3DS..STD

PF,LIGHT BROWN,BROWN,TRIM4#

 1
71078-1606004

AL11..3DS

FB,BLUE,BLUE,TRIM8#

 1
71078-1602104

AL11..3DS..STD

PF,BLUE,BLUE,TRIM8#

 1
71078-1602106

AL11..3DS..STD

PF,LIGHT BROWN,BROWN,TRIM4#

 1
71078-1606006

AL11..3DS

FB,LIGHT BROWN,BROWN,TRIM4#

 1
71078-1602101

AL11..3DS..STD

PF,BLACK,BLACK,TRIM2#

 1
71078-1602004

AL11..3DS..STD

PF,BLUE,BLUE,TRIM8#

 1
71078-1606101

AL11..3DS

FB,BLACK,BLACK,TRIM2#

 1
71078-1606106

AL11..3DS

FB,LIGHT BROWN,BROWN,TRIM4#

 1
71078-1606104

AL11..3DS

FB,BLUE,BLUE,TRIM8#

 1
71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER
71305-16010

AL11..3DS

 1
71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
71460-1602006

AL11..(2DS,3DS)..STD

PF,LIGHT BROWN,BROWN,TRIM4#

 1
71460-1606006

AL11..2DS,3DS

FB,LIGHT BROWN,BROWN,TRIM4#

 1
71460-1602004

AL11..(2DS,3DS)..STD

PF,BLUE,BLUE,TRIM8#

 1
71460-1606004

AL11..2DS,3DS

FB,BLUE,BLUE,TRIM8#

 1
71460-1602001

AL11..(2DS,3DS)..STD

PF,BLACK,BLACK,TRIM2#

 1
71460-1606001

AL11..2DS,3DS

FB,BLACK,BLACK,TRIM2#

 1
71460T - PAD SUB-ASSY, REAR SEAT CUSHION, NO.1
71405-16012

AL11..2DS,3DS

 1
71480P - PANEL SUB-ASSY, REAR SEAT BACK
71018-16010

AL11..3DS

LH

 1
71017-16010

AL11..3DS

RH

 1
71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE)
71480-1605001

AL11..3DS

FB,BLACK,BLACK,TRIM2#

 1
71480-1601001

AL11..3DS..STD

PF,BLACK,BLACK,TRIM2#

 1
71480-1605004

AL11..3DS

FB,BLUE,BLUE,TRIM8#

 1
71480-1605006

AL11..3DS

FB,LIGHT BROWN,BROWN,TRIM4#

 1
71480-1601004

AL11..3DS..STD

PF,BLUE,BLUE,TRIM8#

 1
71480-1601006

AL11..3DS..STD

PF,LIGHT BROWN,BROWN,TRIM4#

 1
71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE)
71490-1601004

AL11..3DS..STD

PF,BLUE,BLUE,TRIM8#

 1
71490-1601001

AL11..3DS..STD

PF,BLACK,BLACK,TRIM2#

 1
71490-1605004

AL11..3DS

FB,BLUE,BLUE,TRIM8#

 1
71490-1601006

AL11..3DS..STD

PF,LIGHT BROWN,BROWN,TRIM4#

 1
71490-1605001

AL11..3DS

FB,BLACK,BLACK,TRIM2#

 1
71490-1605006

AL11..3DS

FB,LIGHT BROWN,BROWN,TRIM4#

 1
71612B - PAD, REAR SEAT CUSHION, B
71615-16011

AL11

 1
71650 - SPRING ASSY, REAR SEAT CUSHION
71650-16011

AL11..2DS,3DS

 1
71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE)
71407-16010

AL11..3DS

 1
71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE)
71408-16010

AL11..3DS

 1
71812B - CLIP(FOR REAR SEAT CUSHION COVER)
90468-18071

AL11

 1
71812B - CLIP(FOR REAR SEAT CUSHION COVER)
90468-18071

AL11

 1
72620 - LOCK ASSY, REAR SEAT BACK
72640-10010

AL11..3DS

LH

 1
72630-10020

AL11..3DS

RH

 1
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-10020

AL11

 2
72703 - STRIKER SUB-ASSY, REAR SEAT BACK STOPPER
72601-16010

AL11..3DS

 2
Common parts
90159-80127
90386-09002
91615-60616
93385-16014
