AL11R-ZGKRS (1979)

Toyota Tercel

Production Jan 1979 - Aug 1980
Engine 2A
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7901- )3DS

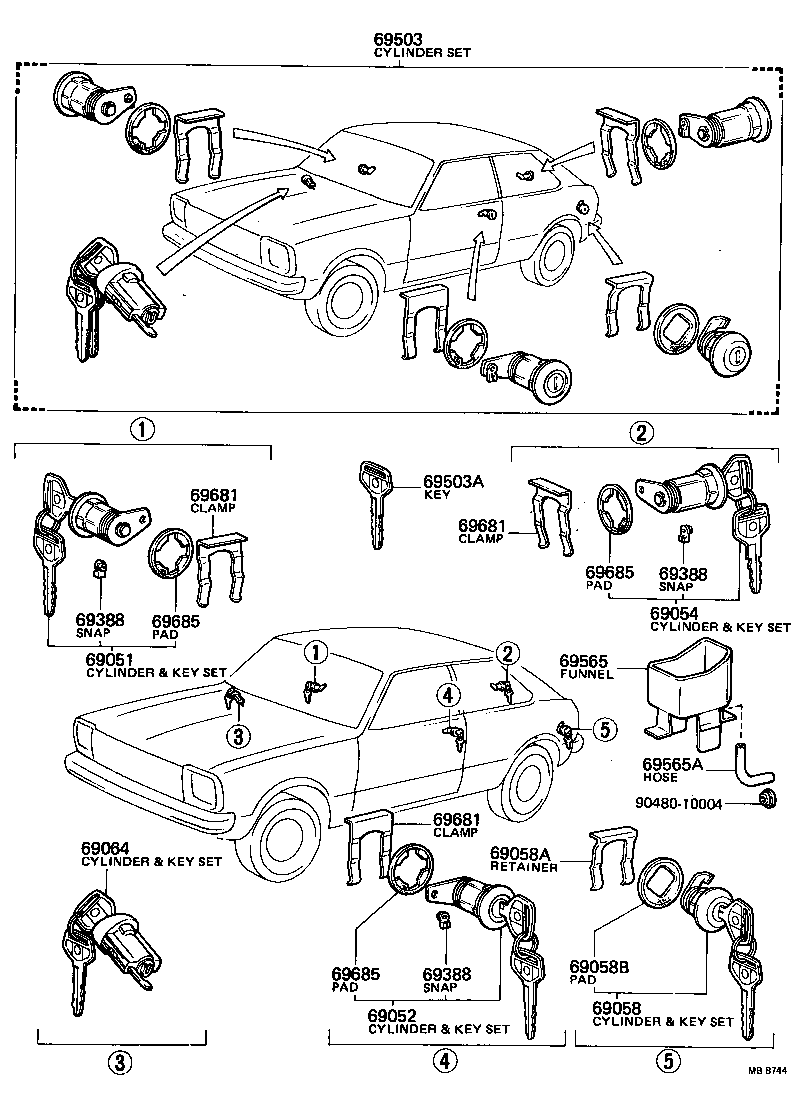

Click highlighted areas on diagram

diagram 69051 69052 69054 69058 69058A 69058B 69064 69388 69388 69388 69503 69503A 69565 69565A 69681 69681 69681 69685 69685 69685 9048010004
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-19176

AL11

 1
69051-19165

AL11

 1
69051-19175

AL11

 1
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-19176

AL11

 1
69052-19155

AL11

 1
69052-19175

AL11

 1
69054 - CYLINDER & KEY SET, BACK DOOR LOCK
69055-19135

AL11..3DS

 1
69058 - CYLINDER & KEY SET, FUEL FILLER LID
69058-19045

AL11

 1
69058A - RETAINER, FUEL FILLER LID CYLINDER
69581-14010

AL11

 1
69058B - PAD, FUEL FILLER LID CYLINDER
69513-14010

AL11

 1
69064 - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-12011

AL11

 1
69388 - SNAP, ROD(FOR DOOR LOCK)
69377-30020

AL11..3DS

 3
69388 - SNAP, ROD(FOR DOOR LOCK)
69377-30020

AL11..3DS

 3
69388 - SNAP, ROD(FOR DOOR LOCK)
69377-30020

AL11..3DS

 3
69503 - CYLINDER SET, LOCK
69005-19386

AL11..3DS

 1
69005-19385

AL11..3DS

 1
69503A - KEY, BLANK
90999-00066

AL11..3DS

MASTER KEY

 3
69565 - FUNNEL, LOCK CYLINDER
69565-16010

AL11..3DS

 1
69565A - HOSE(FOR BACK DOOR LOCK CYLINDER)
90446-06011

AL11..3DS

 1
69681 - CLAMP, DOOR LOCK CYLINDER & SLEEVE
69681-20040

AL11..3DS

FR DOOR & BACK DOOR

 3
69681 - CLAMP, DOOR LOCK CYLINDER & SLEEVE
69681-20040

AL11..3DS

FR DOOR & BACK DOOR

 3
69681 - CLAMP, DOOR LOCK CYLINDER & SLEEVE
69681-20040

AL11..3DS

FR DOOR & BACK DOOR

 3
69685 - PAD, LOCK CYLINDER
69685-12010

AL11

 3
69685 - PAD, LOCK CYLINDER
69685-12010

AL11

 3
69685 - PAD, LOCK CYLINDER
69685-12010

AL11

 3
Common parts
90480-10004
