AL11R-ZGKRS (1979)
Toyota Tercel
Production
Jan 1979
-
Aug 1980
Engine
2A
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7901- )3DS

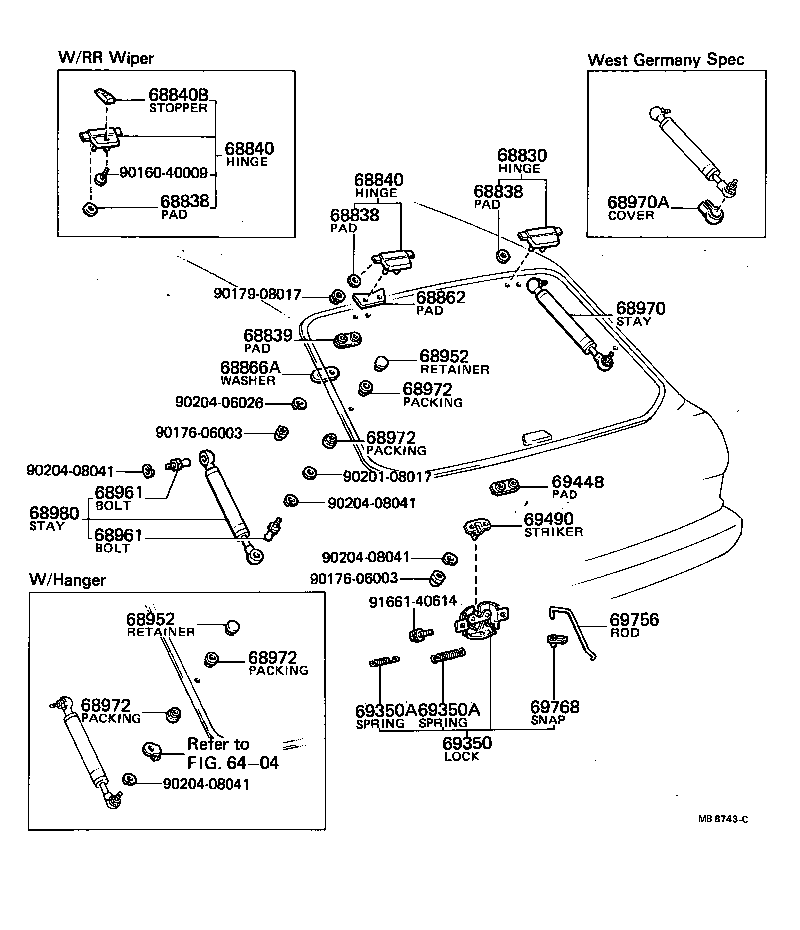

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68830 - HINGE ASSY, BACK DOOR, RH | ||||
| 68810-16030 |
AL11..3DS..STD |
1 | ||
| 68838 - PAD, BACK DOOR HINGE, NO.1 | ||||
| 68863-16010 |
AL11..3DS |
4 | ||
| 68838 - PAD, BACK DOOR HINGE, NO.1 | ||||
| 68863-16010 |
AL11..3DS |
4 | ||
| 68838 - PAD, BACK DOOR HINGE, NO.1 | ||||
| 68863-16010 |
AL11..3DS |
4 | ||
| 68839 - PAD, BACK DOOR HINGE, NO.2 | ||||
| 68838-16010 |
AL11..3DS |
2 | ||
| 68840 - HINGE ASSY, BACK DOOR, LH | ||||
| 68820-16040 |
AL11..3DS..STD |
1 | ||
| 68820-16050 |
AL11..3DS..STD W/RR WIPER |
1 | ||
| 68840 - HINGE ASSY, BACK DOOR, LH | ||||
| 68820-16040 |
AL11..3DS..STD |
1 | ||
| 68820-16050 |
AL11..3DS..STD W/RR WIPER |
1 | ||
| 68840B - STOPPER SUB-ASSY, WIPER BLADE | ||||
| 76509-16020 |
AL11..3DS..STD W/RR WIPER |
1 | ||
| 68862 - PAD, BACK DOOR HINGE | ||||
| 68861-16020 |
AL11..3DS..STD RH |
1 | ||
| 68862-16020 |
AL11..3DS..STD LH |
1 | ||
| 68866A - WASHER, BACK DOOR HINGE | ||||
| 68866-16010 |
AL11..3DS |
2 | ||
| 68952 - RETAINER, BACK DOOR STAY | ||||
| 68952-16010 |
AL11..3DS |
2 | ||
| 68952 - RETAINER, BACK DOOR STAY | ||||
| 68952-16010 |
AL11..3DS |
2 | ||
| 68961 - BOLT, BACK DOOR STAY | ||||
| 68961-14010 |
AL11..3DS |
4 | ||
| 68961 - BOLT, BACK DOOR STAY | ||||
| 68961-14010 |
AL11..3DS |
4 | ||
| 68970 - STAY ASSY, BACK DOOR, RH | ||||
| 68950-19045 |
AL11..3DS KAYABA |
1 | ||
| 68950-19055 |
AL11..3DS TOKIKO |
1 | ||
| 68972 - PACKING, BACK DOOR STAY | ||||
| 68972-16010 |
AL11..3DS INNER |
2 | ||
| 68971-16010 |
AL11..3DS OUTER |
2 | ||
| 68972 - PACKING, BACK DOOR STAY | ||||
| 68972-16010 |
AL11..3DS INNER |
2 | ||
| 68971-16010 |
AL11..3DS OUTER |
2 | ||
| 68972 - PACKING, BACK DOOR STAY | ||||
| 68972-16010 |
AL11..3DS INNER |
2 | ||
| 68971-16010 |
AL11..3DS OUTER |
2 | ||
| 68972 - PACKING, BACK DOOR STAY | ||||
| 68972-16010 |
AL11..3DS INNER |
2 | ||
| 68971-16010 |
AL11..3DS OUTER |
2 | ||
| 68980 - STAY ASSY, BACK DOOR | ||||
| 68950-19055 |
AL11..3DS TOKIKO |
1 | ||
| 68950-19045 |
AL11..3DS KAYABA |
1 | ||
| 69350 - LOCK ASSY, BACK DOOR | ||||
| 69350-16010 |
AL11..3DS |
1 | ||
| 69350A - SPRING(FOR BACK DOOR LOCK) | ||||
| 90506-07001 |
AL11..3DS L=33.5 |
1 | ||
| 90506-08008 |
AL11..3DS L=25.6 |
1 | ||
| 69350A - SPRING(FOR BACK DOOR LOCK) | ||||
| 90506-07001 |
AL11..3DS L=33.5 |
1 | ||
| 90506-08008 |
AL11..3DS L=25.6 |
1 | ||
| 69448 - PAD, BACK DOOR LOCK STRIKER | ||||
| 69448-16010 |
AL11..3DS |
1 | ||
| 69490 - STRIKER ASSY, BACK DOOR LOCK | ||||
| 69430-16010 |
AL11..3DS |
1 | ||
| 69756 - ROD, BACK DOOR LOCKING CONTROL PUSH | ||||
| 69764-16010 |
AL11..3DS |
1 | ||
| 69768 - SNAP, BACK DOOR LOCK CONTROL LINK | ||||
| 69759-16010 |
AL11..3DS |
1 | ||
| Common parts | ||||
| 90160-40009 | ||||
| 90176-06003 | ||||
| 90176-06903 | ||||
| 90179-08017 | ||||
| 90201-08017 | ||||
| 90204-06026 | ||||
| 90204-08041 | ||||
| 91661-40614 | ||||
| Linked diagrams | ||||
| 6404 | ||||
