AL11R-ZGKDS (1979)

Toyota Tercel

Production Jan 1979 - Apr 1982
Engine 2A
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7901- )

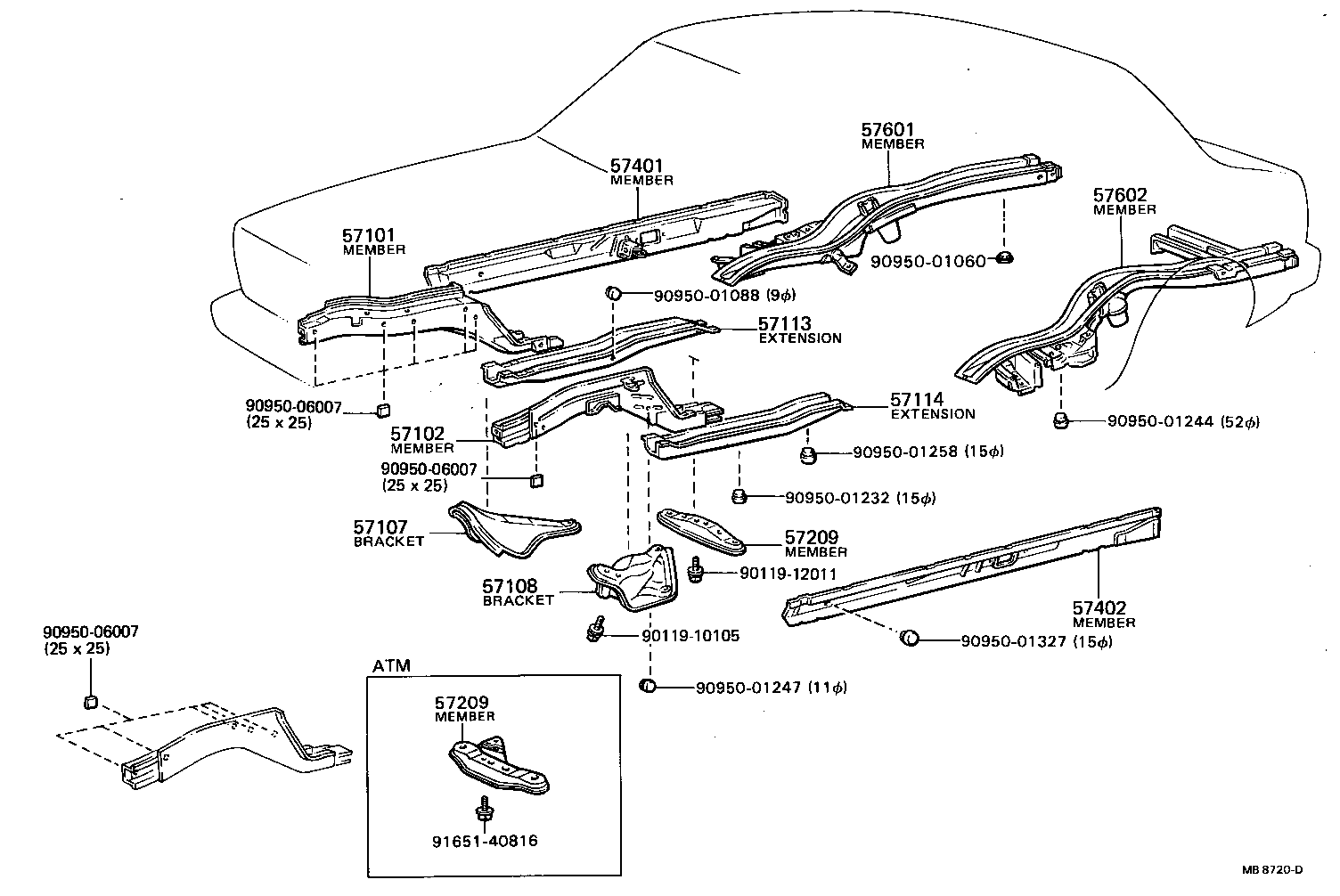

Click highlighted areas on diagram

diagram 57101 57102 57107 57108 57113 57114 57209 57209 57401 57402 57601 57602 9011910105 9011912011 9095001060 9095001088 9095001232 9095001244 9095001247 9095001258 9095001327 9095006007 9095006007 9095006007 9165140816
Part # Description Qty Price
57101 - MEMBER SUB-ASSY, FRONT SIDE, RH
57101-16011

AL11

 1
57101-16010

AL11

 1
57102 - MEMBER SUB-ASSY, FRONT SIDE, LH
57102-16010

AL11

 1
57102-16011

AL11

 1
57107 - BRACKET SUB-ASSY, STRUT BAR, RH
57107-16010

AL11

 1
57108 - BRACKET SUB-ASSY, STRUT BAR, LH
57108-16010

AL11

 1
57113 - EXTENSION, FRONT SIDE MEMBER, RH
57113-16020

AL11

 1
57114 - EXTENSION, FRONT SIDE MEMBER, LH
57114-16020

AL11

 1
57209 - MEMBER SUB-ASSY, ENGINE REAR SUPPORT
57255-16010

AL11..MTM

 1
57209 - MEMBER SUB-ASSY, ENGINE REAR SUPPORT
57255-16010

AL11..MTM

 1
57401 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH
57401-16060

AL11..(2DS,3DS)..GEN

GALVANIZED IRON

 1
57401-16040

AL11..2DS,3DS

W/*ELR,GALVANIZED IRON

 1
57401-16010

AL11..(2DS,3DS)..GEN

 1
57401-16020

AL11..(2DS,3DS)..GEN

W/*ELR

 1
57402 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH
57402-16060

AL11..(2DS,3DS)..GEN

GALVANIZED IRON

 1
57402-16010

AL11..(2DS,3DS)..GEN

 1
57402-16020

AL11..(2DS,3DS)..GEN

W/*ELR

 1
57402-16040

AL11..2DS,3DS

W/*ELR,GALVANIZED IRON

 1
57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57601-16010

AL11

 1
57601-16030

AL11

 1
57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57602-16010

AL11

 1
57602-16030

AL11

 1
Common parts
90119-10105
90119-12011
90950-01060
90950-01088
90950-01232
90950-01244
90950-01247
90950-01258
90950-01327
90950-06007
91651-40816
