AL11R-ZGHDS (1979)

Toyota Tercel

Production Aug 1979 - Apr 1982
Engine 2A
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7908- )3FC

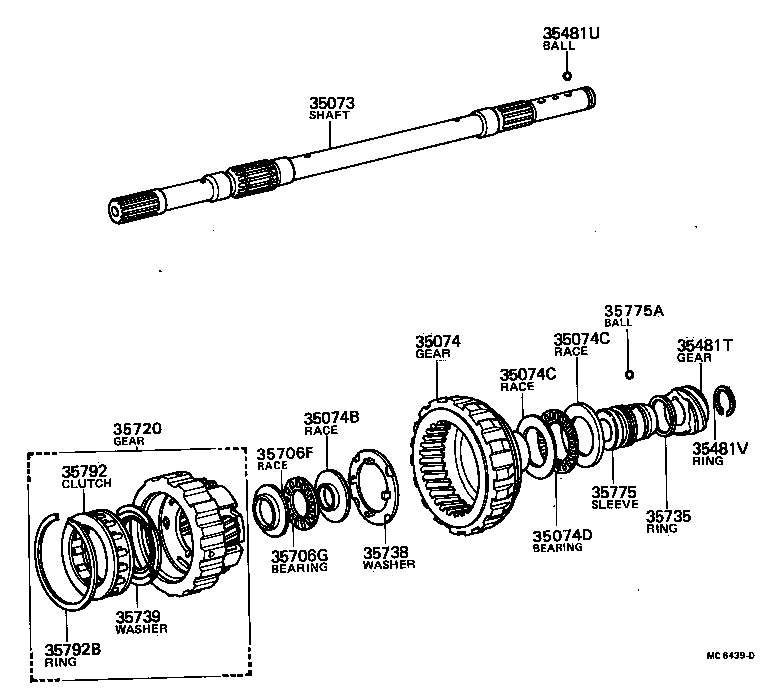

Click highlighted areas on diagram

diagram 35073 35074 35074B 35074C 35074C 35074D 35481T 35481U 35481V 35706F 35706G 35720 35735 35738 35739 35775 35775A 35792 35792B
Part # Description Qty Price
35073 - SHAFT SUB-ASSY, OUTPUT
35073-16011

AL11..3FC

 1
35074 - GEAR SUB-ASSY, REAR PLANETARY RING
35074-16010

AL11..3FC

 1
35074B - RACE, THRUST BEARING (FOR REAR PLANETARY RING GEAR FRON
35789-22050

AL11..3FC

 1
35074C - RACE, THRUST BEARING (FOR REAR PLANETARY RING GEAR REAR
35789-16040

AL11..3FC

FLANGE SIDE

 1
35789-16200

AL11..3FC

CASE SIDE

 1
35074C - RACE, THRUST BEARING (FOR REAR PLANETARY RING GEAR REAR
35789-16040

AL11..3FC

FLANGE SIDE

 1
35789-16200

AL11..3FC

CASE SIDE

 1
35074D - BEARING, THRUST (FOR REAR PLANETARY RING GEAR REAR)
90374-32002

AL11..3FC

 1
35481T - GEAR, SPEEDMETER DRIVE (ATM)
33481-16010

AL11..3FC

N=6

 1
35481U - KEY OR BALL, SPEEDMETER DRIVE GEAR (ATM)
90360-05006

AL11..3FC

 2
35481V - RING OR SPACER (FOR ATM SPEEDMETER DRIVE GEAR)
90520-18266

AL11..3FC

T=1.60-1.65

 1
35706F - RACE, THRUST BEARING (FOR SUN GEAR REAR)
35789-22010

AL11..3FC

 1
35706G - BEARING, THRUST (FOR SUN GEAR REAR)
90374-23012

AL11..3FC

 1
35720 - GEAR ASSY, FRONT PLANETARY
35720-22012

AL11..3FC

 1
35720-22011

AL11..3FC

 1
35735 - RING, PLANETARY OUTPUT SNAP
35735-30010

AL11..3FC

 1
35738 - WASHER, PLANETARY CARRIER THRUST, NO.2
35738-16011

AL11..3FC

 1
35738-16010

AL11..3FC

 1
35739 - WASHER, PLANETARY CARRIER THRUST, NO.3
35739-22011

AL11..3FC

 1
35775 - SLEEVE, OUTPUT SHAFT
35775-16011

AL11..3FC

 1
35775A - BALL, OUTPUT SHAFT SLEEVE
90360-05006

AL11..3FC

 1
35792 - CLUTCH, 1 WAY, NO.2
35792-22020

AL11..3FC

 1
35792B - RING, HOLE SNAP (FOR 1 WAY CLUTCH NO.2)
90521-79148

AL11..3FC

 1
