AL11R-ZGHDS (1979)
Toyota Tercel
Production
Aug 1979
-
Apr 1982
Engine
2A
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(7908- )3FC

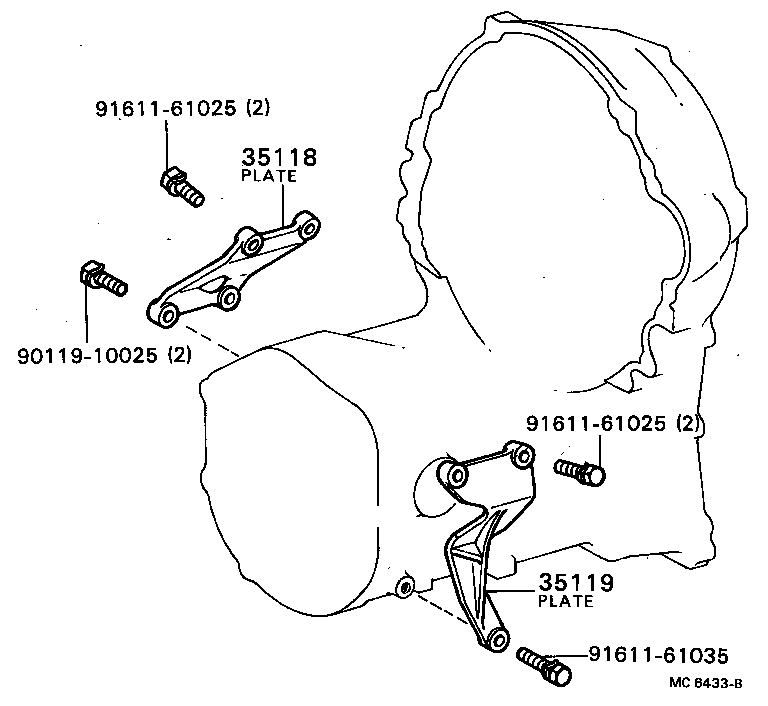

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35118 - PLATE, STIFENER, RH (ATM) | ||||
| 33118-16010 |
AL11..3FC |
1 | ||
| 35119 - PLATE, STIFENER, LH (ATM) | ||||
| 33119-16020 |
AL11..3FC |
1 | ||
| Common parts | ||||
| 90119-10025 | ||||
| 91611-61025 | ||||
| 91611-61035 | ||||
(7908- )3FC

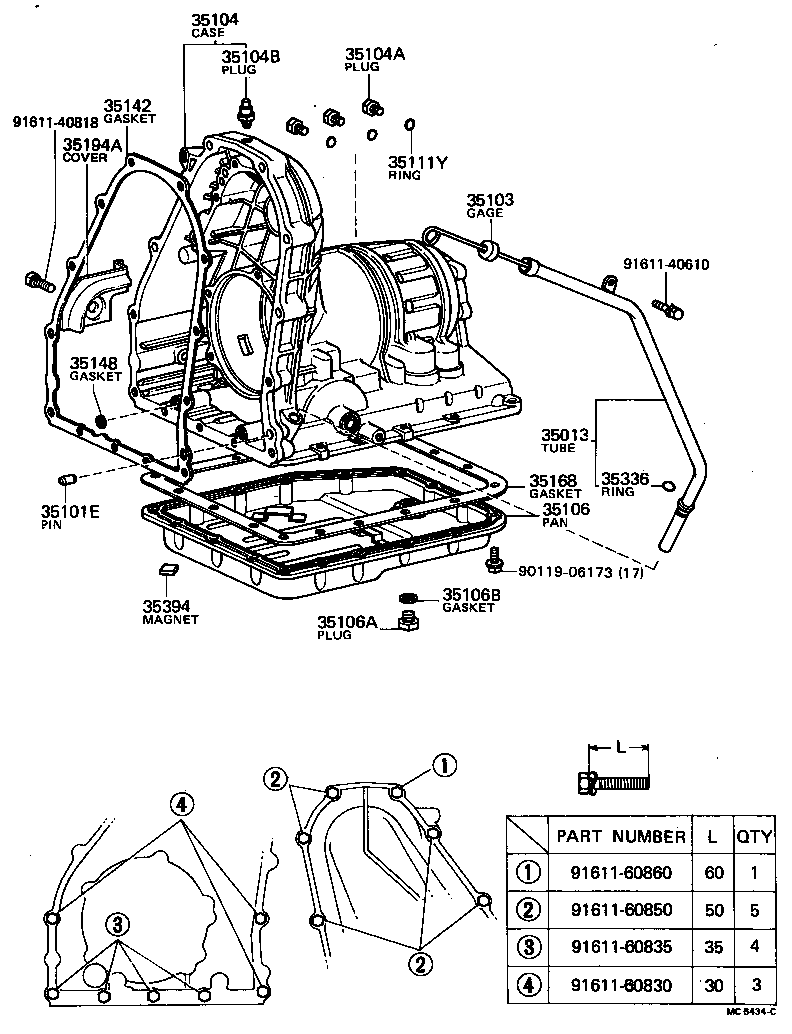

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER | ||||
| 35013-16011 |
AL11..3FC |
1 | ||
| 35013-16010 |
AL11..3FC |
1 | ||
| 35101E - PIN, STRAIGHT (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90250-10232 |
AL11..3FC |
1 | ||
| 35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL | ||||
| 35103-16020 |
AL11..3FC |
1 | ||
| 35103-16010 |
AL11..3FC |
1 | ||
| 35104 - CASE SUB-ASSY, AUTOMATIC TRANSMISSION | ||||
| 35104-16011 |
AL11..3FC |
1 | ||
| 35104-16010 |
AL11..3FC |
1 | ||
| 35104-16012 |
AL11..3FC |
1 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-08079 |
AL11..3FC |
3 | ||
| 90341-08001 |
AL11..3FC |
3 | ||
| 35104B - PLUG, BREATHER, NO.1 (ATM) | ||||
| 90930-03001 |
AL11..3FC |
1 | ||
| 35106 - PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL | ||||
| 35106-16010 |
AL11..3FC |
1 | ||
| 35106A - PLUG SUB-ASSY, DRAIN (ATM) | ||||
| 90341-18006 |
AL11..3FC |
1 | ||
| 90341-18049 |
AL11..3FC |
1 | ||
| 35106B - GASKET, DRAIN PLUG (ATM) | ||||
| 12157-10010 |
AL11..3FC |
1 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
AL11..3FC |
3 | ||
| 35142 - GASKET, TRANSMISSION CASE(ATM) | ||||
| 35142-16010 |
AL11..3FC |
1 | ||
| 35148 - GASKET, GOVERNOR APPLY, NO.1 | ||||
| 35148-16010 |
AL11..3FC |
2 | ||
| 35168 - GASKET, AUTOMATIC TRANSMISSION OIL PAN | ||||
| 35168-16010 |
AL11..3FC |
1 | ||
| 35194A - COVER, TRANSMISSION CASE DUST | ||||
| 35194-16010 |
AL11..3FC |
1 | ||
| 35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE) | ||||
| 90301-09173 |
AL11..3FC |
1 | ||
| 35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION) | ||||
| 35394-30011 |
AL11..3FC |
2 | ||
| Common parts | ||||
| 90119-06173 | ||||
| 91611-40610 | ||||
| 91611-40818 | ||||
| 91611-60830 | ||||
| 91611-60835 | ||||
| 91611-60850 | ||||
| 91611-60860 | ||||
