AL11L-ZGKDS (1979)
Toyota Tercel
Production
Jan 1979
-
Apr 1982
Engine
2A
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7901- )

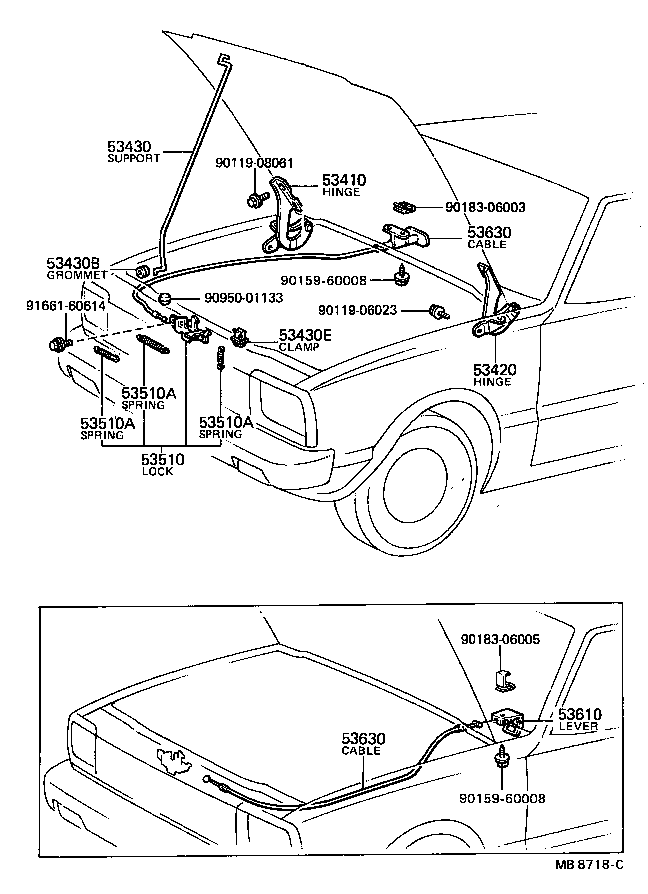

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53410 - HINGE ASSY, HOOD, RH | ||||
| 53410-16010 |
AL11 |
1 | ||
| 53410-16011 |
AL11 |
1 | ||
| 53420 - HINGE ASSY, HOOD, LH | ||||
| 53420-16010 |
AL11 |
1 | ||
| 53420-16011 |
AL11 |
1 | ||
| 53430 - SUPPORT ASSY, HOOD | ||||
| 53451-16011 |
AL11 |
1 | ||
| 53451-16010 |
AL11 |
1 | ||
| 53430B - GROMMET(FOR HOOD SUPPORT) | ||||
| 90480-15002 |
AL11 |
1 | ||
| 53430E - CLAMP, HOOD SUPPORT | ||||
| 53452-90351 |
AL11 |
1 | ||
| 53510 - LOCK ASSY, HOOD | ||||
| 53510-20100 |
AL11..LHD |
1 | ||
| 53510-16020 |
AL11..LHD |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-09008 |
AL11 WD=0.9,CW=21.25,L=34.4 |
1 | ||
| 90506-09009 |
AL11..LHD L=47.95 |
1 | ||
| 90506-09012 |
AL11 L=58.35 |
1 | ||
| 90506-20022 |
AL11..LHD L=67 |
1 | ||
| 90506-23004 |
AL11 L=60 |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-09008 |
AL11 WD=0.9,CW=21.25,L=34.4 |
1 | ||
| 90506-09009 |
AL11..LHD L=47.95 |
1 | ||
| 90506-09012 |
AL11 L=58.35 |
1 | ||
| 90506-20022 |
AL11..LHD L=67 |
1 | ||
| 90506-23004 |
AL11 L=60 |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-09008 |
AL11 WD=0.9,CW=21.25,L=34.4 |
1 | ||
| 90506-09009 |
AL11..LHD L=47.95 |
1 | ||
| 90506-09012 |
AL11 L=58.35 |
1 | ||
| 90506-20022 |
AL11..LHD L=67 |
1 | ||
| 90506-23004 |
AL11 L=60 |
1 | ||
| 53610 - LEVER ASSY, HOOD LOCK RELEASE | ||||
| 53601-1601004 |
AL11..LHD BLUE,BLUE,TRIM8# |
1 | ||
| 53601-1601001 |
AL11..LHD BLACK,BLACK,TRIM2# |
1 | ||
| 53601-1601006 |
AL11..LHD LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 53601-1601016 |
AL11..LHD LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 53630 - CABLE ASSY, HOOD LOCK CONTROL | ||||
| 53630-16030 |
AL11..LHD |
1 | ||
| 53630-16070 |
AL11..LHD |
1 | ||
| 53630 - CABLE ASSY, HOOD LOCK CONTROL | ||||
| 53630-16030 |
AL11..LHD |
1 | ||
| 53630-16070 |
AL11..LHD |
1 | ||
| Common parts | ||||
| 90119-06023 | ||||
| 90119-08061 | ||||
| 90159-60008 | ||||
| 90183-06003 | ||||
| 90183-06005 | ||||
| 90950-01133 | ||||
| 91661-60614 | ||||
