AL11L-ZEMDSW (1979)

Toyota Tercel

Production Jan 1979 - Apr 1982
Engine 2A
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7901- )4DS

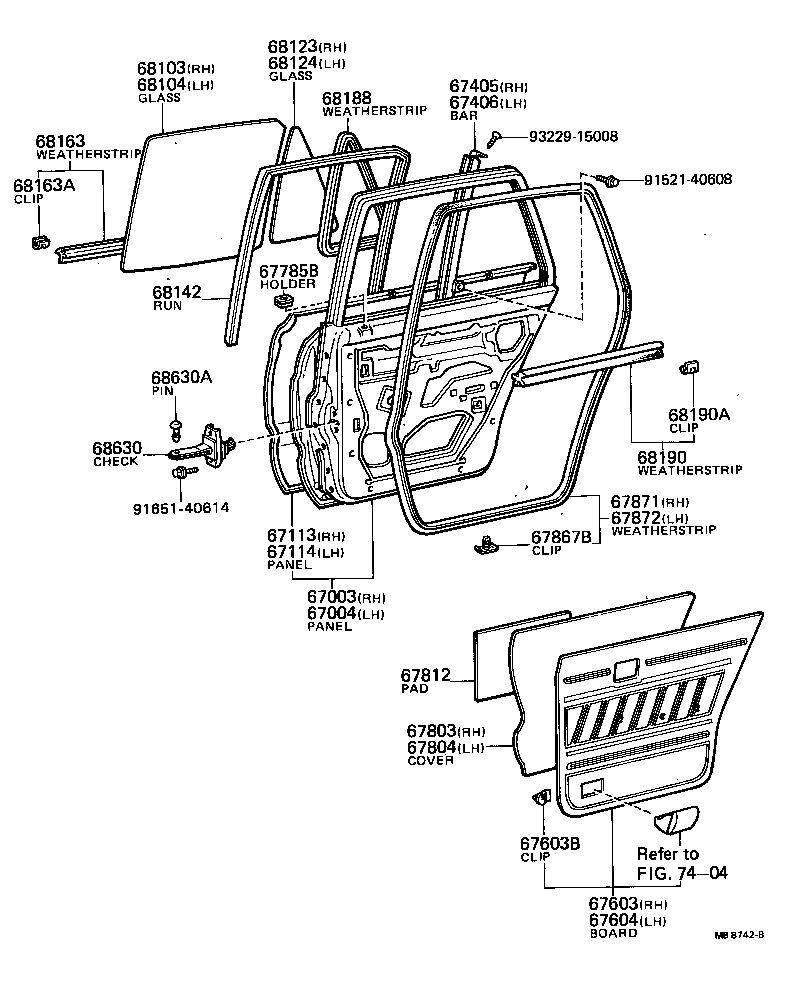

Click highlighted areas on diagram

diagram 67003 67004 67113 67114 67405 67406 67603 67603B 67604 67785B 67803 67804 67812 67867B 67871 67872 68103 68104 68123 68124 68142 68163 68163A 68188 68190 68190A 68630 68630A 7404 9152140608 9165140614 9322915008
Part # Description Qty Price
67003 - PANEL SUB-ASSY, REAR DOOR, RH
67003-16010

AL11..4DS

 1
67004 - PANEL SUB-ASSY, REAR DOOR, LH
67004-16010

AL11..4DS

 1
67113 - PANEL, REAR DOOR, OUTER RH
67113-16010

AL11..4DS

 1
67114 - PANEL, REAR DOOR, OUTER LH
67114-16010

AL11..4DS

 1
67405 - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH
67407-16010

AL11..4DS

 1
67406 - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH
67408-16010

AL11..4DS

 1
67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH
67630-1608016

AL11..4DS..DLX

LIGHT BROWN,BROWN,TRIM4#

 1
67630-1608006

AL11..4DS..DLX

LIGHT BROWN,BROWN,TRIM4#

 1
67630-1608004

AL11..4DS..DLX

BLUE,BLUE,TRIM8#

 1
67630-1608001

AL11..4DS..DLX

BLACK,BLACK,TRIM2#

 1
67603B - CLIP(FOR REAR DOOR TRIM BOARD)
90467-11008

AL11..4DS

 24
67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH
67640-1608004

AL11..4DS..DLX

BLUE,BLUE,TRIM8#

 1
67640-1608006

AL11..4DS..DLX

LIGHT BROWN,BROWN,TRIM4#

 1
67640-1608001

AL11..4DS..DLX

BLACK,BLACK,TRIM2#

 1
67640-1608016

AL11..4DS..DLX

LIGHT BROWN,BROWN,TRIM4#

 1
67785B - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR REAR DOOR)
69751-2003101

AL11..4DS

BLACK

 2
69751-20030

AL11..4DS

 2
67803 - COVER SUB-ASSY, REAR DOOR SERVICE HOLE, RH
67841-16020

AL11..4DS

 1
67804 - COVER SUB-ASSY, REAR DOOR SERVICE HOLE, LH
67841-16020

AL11..4DS

 1
67841-16010

AL11..4DS

 1
67812 - PAD, REAR DOOR SILENCER
67812-20050

AL11..4DS

 2
67867B - CLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)
67868-30040

AL11..4DS

 40
67871 - WEATHERSTRIP, REAR DOOR, RH
67871-16010

AL11..4DS

 1
67872 - WEATHERSTRIP, REAR DOOR, LH
67872-16010

AL11..4DS

 1
68103 - GLASS SUB-ASSY, REAR DOOR, RH
68113-16011

AL11..4DS..DLX

*TT,T=3.5

 1
68113-16010

AL11..4DS..DLX

*TT,T=4.0

 1
68104 - GLASS SUB-ASSY, REAR DOOR, LH
68114-16011

AL11..4DS..DLX

*TT,T=3.5

 1
68114-16010

AL11..4DS..DLX

*TT,T=4.0

 1
68123 - GLASS, REAR DOOR WINDOW, RH
68123-16010

AL11..4DS..DLX

*TT,T=4.0

 1
68123-16011

AL11..4DS..DLX

*TT,T=3.5

 1
68124 - GLASS, REAR DOOR WINDOW, LH
68124-16010

AL11..4DS..DLX

*TT,T=4.0

 1
68124-16011

AL11..4DS..DLX

*TT,T=3.5

 1
68142 - RUN, REAR DOOR GLASS
68142-16011

AL11..4DS

 2
68142-16010

AL11..4DS

 2
68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH
68188-16010

AL11..4DS

RH

 1
68189-16010

AL11..4DS

LH

 1
68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER
68190-16010

AL11..4DS

RH

 1
68240-16010

AL11..4DS

LH

 1
68190A - CLIP(FOR REAR DOOR GLASS INNER WEATHERSTRIP SET)
68211-10030

AL11..4DS

 10
68630 - CHECK ASSY, REAR DOOR
68630-16010

AL11..4DS

 2
68630A - PIN(FOR REAR DOOR CHECK)
68617-22010

AL11..4DS

 2
Common parts
91521-40608
91651-40614
93229-15008
Linked diagrams
7404
