AL11L-ZEKDS (1979)

Toyota Tercel

Production Jan 1979 - Apr 1982
Engine 2A
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7901-8008)LHD..GEN

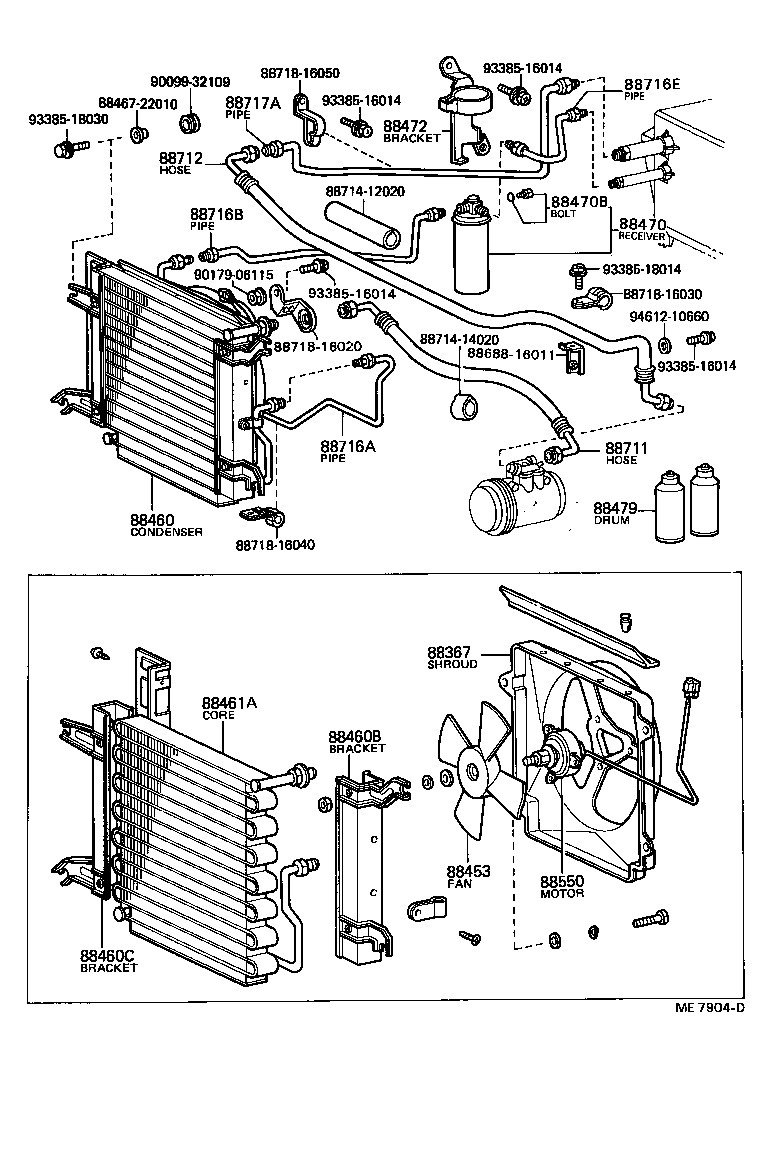

Click highlighted areas on diagram

diagram 88367 88453 88460 88460B 88460C 88461A 8846722010 88470 88470B 88472 88479 88550 8868816011 88711 88712 8871412020 8871414020 88716A 88716B 88716E 88717A 8871816020 8871816030 8871816040 8871816050 9009932109 9017906115 9338516014 9338516014 9338516014 9338516014 9338518014 9338518030 9461210660
Part # Description Qty Price
88367 - SHROUD, COOLER BLOWER FAN
88454-16020

AL11..LHD..GEN

 1
88454-16030

AL11..GEN

 1
88453 - FAN, COOLING (FOR CONDENSER)
16361-28010

AL11..GEN

 1
88453-16010

AL11..GEN

 1
88460 - CONDENSER ASSY, COOLER
88460-16020

AL11..LHD..GEN

 1
88460-16021

AL11..GEN

 1
88460B - BRACKET, COOLER CONDENSER, NO.1
88463-16031

AL11..GEN

 1
88463-16030

AL11..LHD..GEN

 1
88460C - BRACKET, COOLER CONDENSER, NO.2
88463-16040

AL11..LHD..GEN

 1
88463-16041

AL11..GEN

 1
88461A - CORE, COOLER CONDENSER
88461-16020

AL11..LHD..GEN

 1
88461-16031

AL11..GEN

 1
88470 - RECEIVER & DRYER ASSY, COOLER
88471-16010

AL11..GEN

 1
88471-16010

AL11..LHD..GEN

 1
88470B - BOLT, FUSE
90099-04579

AL11

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-16020

AL11..LHD..GEN

 1
88472-16021

AL11..LHD..GEN

 1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02001

AL11..GEN

400G

 2
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-16020

AL11..GEN

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-16010

AL11..GEN

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-16020

AL11..LHD..GEN

 1
88712-16021

AL11..LHD..GEN

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-16060

AL11..LHD..GEN

 1
88716-16101

AL11..LHD..GEN

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-16091

AL11..LHD..GEN

 1
88716-16040

AL11..LHD..GEN

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-16050

AL11..LHD..GEN

 1
88716-16110

AL11..LHD..GEN

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-16010

AL11..LHD..GEN

 1
88717-16021

AL11..LHD..GEN

 1
88717-16020

AL11..LHD..GEN

 1
Common parts
88467-22010
88688-16011
88714-12020
88714-14020
88718-16020
88718-16030
88718-16040
88718-16050
90099-32109
90179-06115
93385-16014
93385-18014
93385-18030
94612-10660

(8008- )LHD..GEN

Click highlighted areas on diagram

diagram 5392516010 5392616010 88367 88453 88460 88460B 88460C 88461A 8846722010 88470 88470B 88472 88479 88550 88648E 8868816011 8868816012 88711 88712 8871412020 8871414020 88716A 88716B 88716E 88717A 8871816030 8871816040 8871816050 8888840040 9009932109 9017906115 9165140612 9338516014 9338516014 9338516014 9338518014 9338518030 9461210660
Part # Description Qty Price
88367 - SHROUD, COOLER BLOWER FAN
88454-16020

AL11..LHD..GEN

 1
88454-16030

AL11..GEN

 1
88453 - FAN, COOLING (FOR CONDENSER)
16361-28010

AL11..GEN

 1
88453-16010

AL11..GEN

 1
88460 - CONDENSER ASSY, COOLER
88460-16020

AL11..LHD..GEN

 1
88460-16021

AL11..GEN

 1
88460B - BRACKET, COOLER CONDENSER, NO.1
88463-16031

AL11..GEN

 1
88463-16030

AL11..LHD..GEN

 1
88460C - BRACKET, COOLER CONDENSER, NO.2
88463-16040

AL11..LHD..GEN

 1
88463-16041

AL11..GEN

 1
88461A - CORE, COOLER CONDENSER
88461-16020

AL11..LHD..GEN

 1
88461-16031

AL11..GEN

 1
88470 - RECEIVER & DRYER ASSY, COOLER
88471-16010

AL11..GEN

 1
88471-16010

AL11..LHD..GEN

 1
88470B - BOLT, FUSE
90099-04579

AL11

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-16020

AL11..LHD..GEN

 1
88472-16021

AL11..LHD..GEN

 1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02001

AL11..GEN

400G

 2
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-16020

AL11..GEN

 1
88648E - WIRING, COOLER
88648-16030

AL11..GEN

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-16010

AL11..GEN

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-16020

AL11..LHD..GEN

 1
88712-16021

AL11..LHD..GEN

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-16060

AL11..LHD..GEN

 1
88716-16101

AL11..LHD..GEN

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-16091

AL11..LHD..GEN

 1
88716-16040

AL11..LHD..GEN

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-16050

AL11..LHD..GEN

 1
88716-16110

AL11..LHD..GEN

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-16010

AL11..LHD..GEN

 1
88717-16021

AL11..LHD..GEN

 1
88717-16020

AL11..LHD..GEN

 1
Common parts
53925-16010
53926-16010
88467-22010
88688-16011
88688-16012
88714-12020
88714-14020
88718-16030
88718-16040
88718-16050
88888-40040
90099-32109
90179-06115
91651-40612
93385-16014
93385-18014
93385-18030
94612-10660
