AL11L-ZDMRSW (1979)

Toyota Tercel

Production Jan 1979 - Apr 1982
Engine 2A
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7901- )

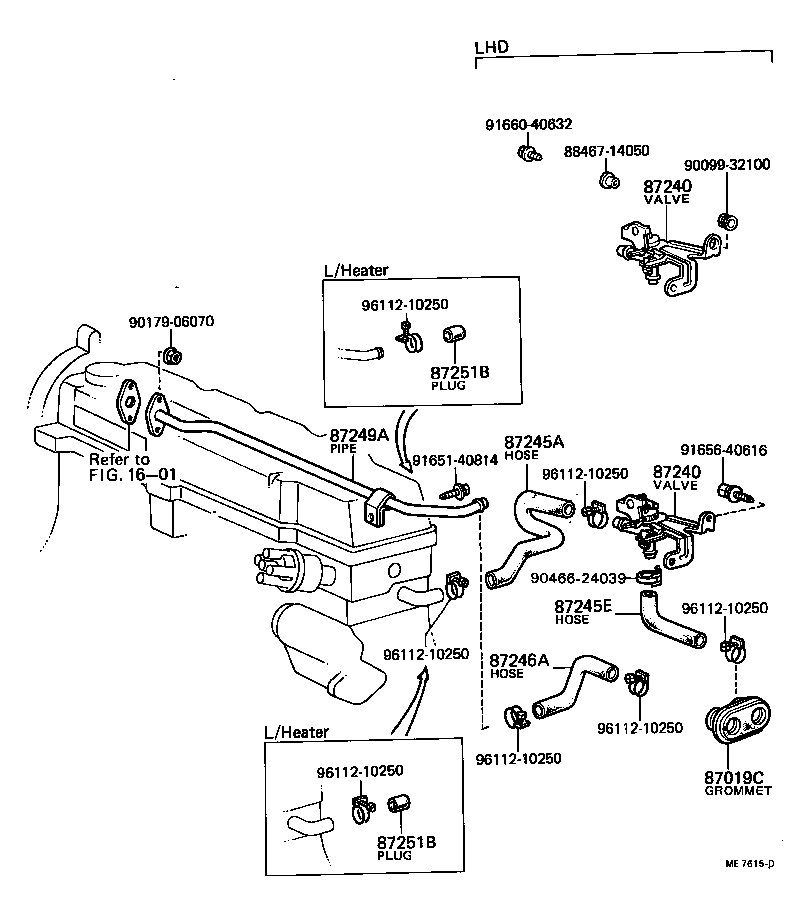

Click highlighted areas on diagram

diagram 1601 87019C 87240 87240 87245A 87245E 87246A 87249A 87251B 87251B 8846714050 9009932100 9017906070 9046624039 9165140814 9165640616 9166040632 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250
Part # Description Qty Price
87019C - GROMMET, HEATER HOSE
90480-01015

AL11..LHD

 1
87240 - VALVE ASSY, HEATER WATER
87240-16020

AL11..LHD

 1
87240 - VALVE ASSY, HEATER WATER
87240-16020

AL11..LHD

 1
87245A - HOSE, HEATER WATER, INLET A
87245-16040

AL11..LHD

 1
87245E - HOSE, HEATER WATER, INLET E
87245-16050

AL11..LHD

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-16060

AL11..LHD

 1
87245-16061

AL11..LHD

 1
87249A - PIPE, HEATER WATER OUTLET, A
87208-16010

AL11

 1
87208-16011

AL11

 1
87251B - PLUG, HEATER WATER
90339-16007

AL11

W/BOOST VENTILATOR

 2
87251B - PLUG, HEATER WATER
90339-16007

AL11

W/BOOST VENTILATOR

 2
Common parts
88467-14050
90099-32100
90179-06070
90466-24039
91651-40814
91656-40616
91660-40632
96112-10250
Linked diagrams
1601
