AL11L-ZDMRSW (1979)
Toyota Tercel
Production
Jan 1979
-
Apr 1982
Engine
2A
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7901- )LHD

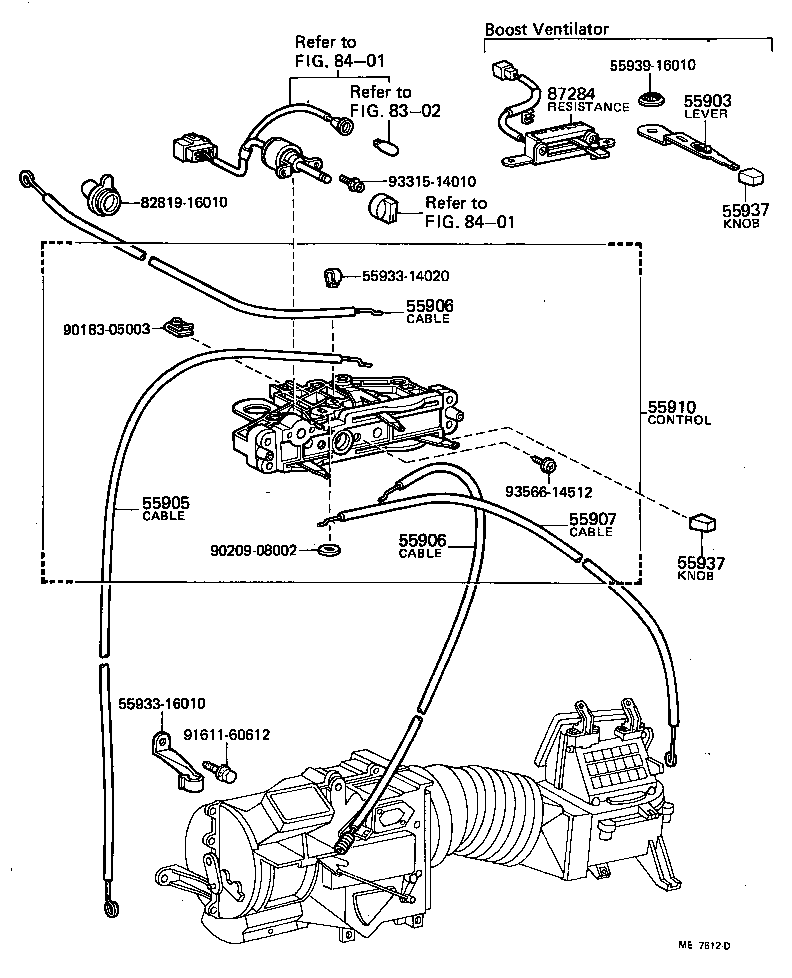

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55905 - CABLE SUB-ASSY, DEFROST CONTROL | ||||
| 55906-16020 |
AL11..LHD L=320 |
1 | ||
| 55906 - CABLE SUB-ASSY, HEATER CONTROL | ||||
| 55907-16030 |
AL11..LHD L=1100 |
1 | ||
| 55907-16020 |
AL11..LHD L=565 |
1 | ||
| 55906 - CABLE SUB-ASSY, HEATER CONTROL | ||||
| 55907-16030 |
AL11..LHD L=1100 |
1 | ||
| 55907-16020 |
AL11..LHD L=565 |
1 | ||
| 55907 - CABLE SUB-ASSY, HEATER AIR INLET BUTTERFLY | ||||
| 55908-16020 |
AL11..LHD L=750 |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-16901 |
AL11..LHD EXCL/CABLE |
1 | ||
| 55910-16904 |
AL11..LHD EXCL/CABLE,W/BOOST VENTILATOR |
1 | ||
| 55910-16905 |
AL11..LHD EXCL/CABLE |
1 | ||
| 55910-16903 |
AL11..LHD EXCL/CABLE,W/BOOST VENTILATOR |
1 | ||
| 55937 - KNOB, HEATER CONTROL LEVER | ||||
| 55905-12060 |
AL11 |
3 | ||
| 55925-10020 |
AL11..2DS,4DS WEST GERMANY SPEC |
3 | ||
| 55937 - KNOB, HEATER CONTROL LEVER | ||||
| 55905-12060 |
AL11 |
3 | ||
| 55925-10020 |
AL11..2DS,4DS WEST GERMANY SPEC |
3 | ||
| Common parts | ||||
| 55933-14020 | ||||
| 55933-16010 | ||||
| 55939-16010 | ||||
| 82819-16010 | ||||
| 90183-05003 | ||||
| 90209-08002 | ||||
| 91611-60612 | ||||
| 93315-14010 | ||||
| 93566-14512 | ||||
| Linked diagrams | ||||
| 8302 | ||||
| 8401 | ||||
(7901- )LHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87211 - DUCT, AIR, NO.1 | ||||
| 87211-16020 |
AL11..LHD |
1 | ||
| 87211A - DUCT, AIR, NO.2 | ||||
| 87201-16020 |
AL11..LHD |
1 | ||
| 87211B - DUCT, AIR, NO.3 | ||||
| 55087-16020 |
AL11..LHD |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87202-16010 |
AL11..EUR |
1 | ||
| 87213 - DUCT, AIR, REAR NO.2 | ||||
| 87203-16010 |
AL11..EUR |
1 | ||
| 87214 - DUCT, AIR, SIDE NO.1 RH | ||||
| 55086-16020 |
AL11..LHD |
1 | ||
| 87214A - DUCT, AIR, SIDE NO.2 RH | ||||
| 55847-16020 |
AL11..EUR WEST GERMANY SPEC |
1 | ||
| 55847-16020 |
AL11..(2DS,4DS)..EUR WEST GERMANY SPEC |
1 | ||
| 55847-16010 |
AL11..LHD |
1 | ||
| 87215 - DUCT, AIR, SIDE NO.1 LH | ||||
| 55085-16040 |
AL11..LHD |
1 | ||
| 55085-16030 |
AL11..LHD |
1 | ||
| 87215A - DUCT, AIR, SIDE NO.2 LH | ||||
| 55843-16030 |
AL11..(2DS,4DS)..EUR WEST GERMANY SPEC |
1 | ||
| 55843-16030 |
AL11..EUR WEST GERMANY SPEC |
1 | ||
| 55843-16020 |
AL11..LHD |
1 | ||
| 87226 - ADAPTER, AIR DUCT | ||||
| 87226-16010 |
AL11..LHD |
1 | ||
| Common parts | ||||
| 90167-50002 | ||||
| 90183-05094 | ||||
| 91651-40614 | ||||
| 93540-54012 | ||||
| 93540-54014 | ||||
| 93560-55016 | ||||
| 93590-16016 | ||||
