Toyota Tercel AL11 HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

Manufacturers Home
Toyota
EU
TERCEL
AL11L-ZDMRSW (1979)
8712 - HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

AL11L-ZDMRSW (1979)

Toyota Tercel

Production Jan 1979 - Apr 1982

Engine 2A

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(7901- )LHD

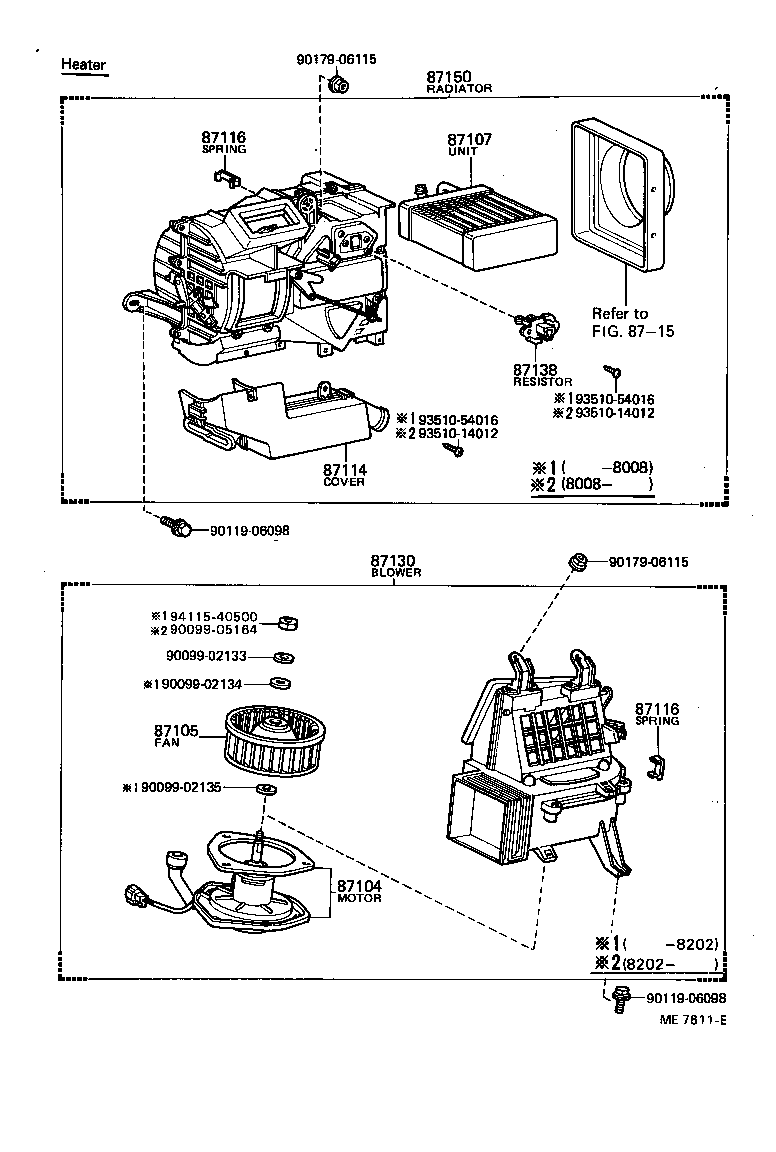

Click highlighted areas on diagram

Part #	Description	Period	Qty
87104 - MOTOR SUB-ASSY, HEATER BLOWER
87104-16030	AL11..LHD	01/1979 - 04/1982	1
87104-16040	AL11..EUR W/HEAVY DUTY HEATER	01/1979 - 04/1982	1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-16020	AL11..LHD	01/1979 - 04/1982	1
87105-16020	AL11..EUR W/HEAVY DUTY HEATER	01/1979 - 04/1982	1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-16030	AL11..EUR W/HEAVY DUTY HEATER	06/1979 - 04/1982	1
87107-16021	AL11..LHD	01/1980 - 04/1982	1
87107-16020	AL11..LHD	01/1979 - 01/1980	1
87114 - COVER, HEATER
87114-16040	AL11..EUR W/RR DUCT	01/1979 - 04/1982	1
87114-16030	AL11..LHD	01/1979 - 04/1982	1
87116 - SPRING, HEATER CASE FASTENING
87116-14010	AL11	01/1979 - 04/1982	6
87116 - SPRING, HEATER CASE FASTENING
87116-14010	AL11	01/1979 - 04/1982	6
87130 - BLOWER ASSY, HEATER, FRONT
87130-16010	AL11..LHD	01/1979 - 04/1982	1
87130-16020	AL11..EUR W/HEAVY DUTY HEATER	01/1979 - 04/1982	1
87138 - RESISTOR, HEATER BLOWER
87138-16070	AL11..EUR W/HEAVY DUTY HEATER	04/1980 - 08/1980	1
87138-16041	AL11..EUR W/HEAVY DUTY HEATER	08/1980 - 04/1982	1
87138-16060	AL11..LHD	04/1980 - 08/1980	1
87138-16030	AL11..LHD	01/1979 - 04/1980	1
87138-16040	AL11..EUR W/HEAVY DUTY HEATER	01/1979 - 04/1980	1
87138-16041	AL11..LHD W/COOLER	08/1980 - 04/1982	1
87138-16031	AL11..LHD	08/1980 - 04/1982	1
87150 - RADIATOR ASSY, HEATER
87150-16020	AL11..EUR W/HEAVY DUTY HEATER,W/RR DUCT	01/1979 - 08/1980	1
87150-16010	AL11..LHD	01/1979 - 01/1980	1
87150-16021	AL11..EUR W/HEAVY DUTY HEATER	08/1980 - 04/1982	1
87150-16030	AL11..EUR W/HEAVYDUTY HEATER,W/O RR DUCT	06/1979 - 08/1980	1
87150-16011	AL11..LHD	01/1980 - 08/1980	1
87150-16012	AL11..LHD	08/1980 - 04/1982	1
Common parts
90099-02133
90099-02134
90099-02135
90099-05164
90119-06098
90179-06115
93510-14012
93510-54016
94115-40500
Linked diagrams
8715

(7901- )LHD

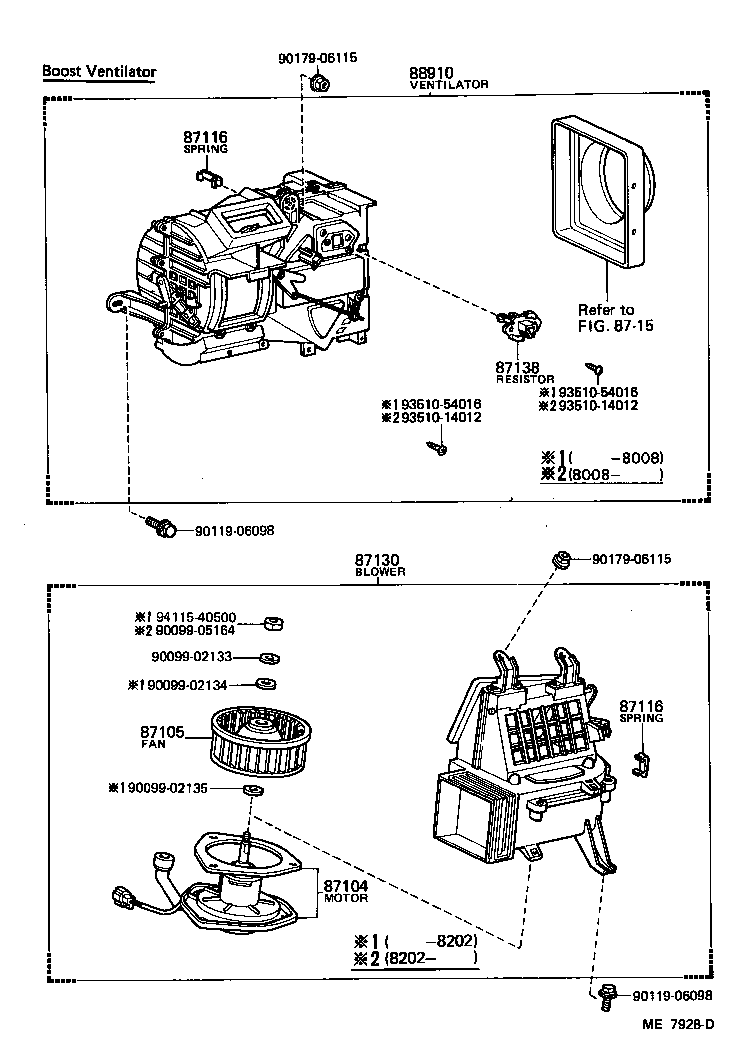

Click highlighted areas on diagram

Part #	Description	Period	Qty
87104 - MOTOR SUB-ASSY, HEATER BLOWER
87104-16030	AL11..LHD	01/1979 - 04/1982	1
87104-16040	AL11..EUR W/HEAVY DUTY HEATER	01/1979 - 04/1982	1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-16020	AL11..LHD	01/1979 - 04/1982	1
87105-16020	AL11..EUR W/HEAVY DUTY HEATER	01/1979 - 04/1982	1
87116 - SPRING, HEATER CASE FASTENING
87116-14010	AL11	01/1979 - 04/1982	6
87116 - SPRING, HEATER CASE FASTENING
87116-14010	AL11	01/1979 - 04/1982	6
87130 - BLOWER ASSY, HEATER, FRONT
87130-16010	AL11..LHD	01/1979 - 04/1982	1
87130-16020	AL11..EUR W/HEAVY DUTY HEATER	01/1979 - 04/1982	1
87138 - RESISTOR, HEATER BLOWER
87138-16070	AL11..EUR W/HEAVY DUTY HEATER	04/1980 - 08/1980	1
87138-16041	AL11..EUR W/HEAVY DUTY HEATER	08/1980 - 04/1982	1
87138-16060	AL11..LHD	04/1980 - 08/1980	1
87138-16030	AL11..LHD	01/1979 - 04/1980	1
87138-16040	AL11..EUR W/HEAVY DUTY HEATER	01/1979 - 04/1980	1
87138-16041	AL11..LHD W/COOLER	08/1980 - 04/1982	1
87138-16031	AL11..LHD	08/1980 - 04/1982	1
88910 - VENTILATOR ASSY, BOOST
88910-16010	AL11..LHD	01/1979 - 08/1980	1
88910-16011	AL11..LHD	08/1980 - 04/1982	1
Common parts
90099-02133
90099-02134
90099-02135
90099-05164
90119-06098
90179-06115
93510-14012
93510-54016
94115-40500
Linked diagrams
8715
