AL11L-ZDMRSW (1979)

Toyota Tercel

Production Jan 1979 - Apr 1982
Engine 2A
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7901- )

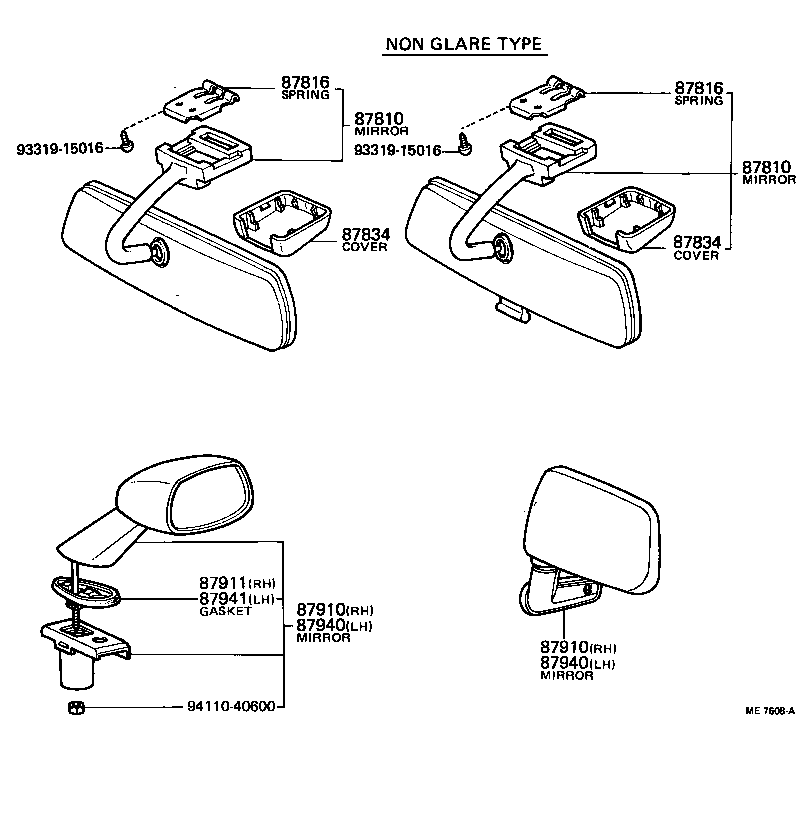

Click highlighted areas on diagram

diagram 87810 87810 87816 87816 87834 87834 87910 87910 87911 87940 87940 87941 9331915016 9331915016 9411040600
Part # Description Qty Price
87810 - MIRROR ASSY, INNER REAR VIEW
87810-2014201

AL11..STD..EUR

BLACK,BLACK,TRIM2#,8#

 1
87810 - MIRROR ASSY, INNER REAR VIEW
87810-2014201

AL11..STD..EUR

BLACK,BLACK,TRIM2#,8#

 1
87816 - SPRING, INNER REAR VIEW MIRROR
74372-30030

AL11

 1
87816 - SPRING, INNER REAR VIEW MIRROR
74372-30030

AL11

 1
87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER
87834-2204104

AL11

BLUE,IKI,BLUE,TRIM8#

 1
87834-2007115

AL11

BEIGE,MURAKAMI,BEIGE,TRIM4#

 1
87834-2007104

AL11

BLUE,MURAKAMI,BLUE,TRIM8#

 1
87834-2204105

AL11

BEIGE,IKI,BEIGE,TRIM4#

 1
87834-2008004

AL11

BLUE,BLUE,TRIM8#

 1
87834-2204103

AL11

GRAY,IKI,GRAY,TRIM2#

 1
87834-2008013

AL11

GRAY,GRAY,TRIM2#

 1
87834-2008015

AL11

BEIGE,BEIGE,TRIM4#

 1
87834-2008008

AL11

IVORY,IVORY,TRIM2#,4#,8#

 1
87834-2007113

AL11

GRAY,MURAKAMI,GRAY,TRIM2#

 1
87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER
87834-2204104

AL11

BLUE,IKI,BLUE,TRIM8#

 1
87834-2007115

AL11

BEIGE,MURAKAMI,BEIGE,TRIM4#

 1
87834-2007104

AL11

BLUE,MURAKAMI,BLUE,TRIM8#

 1
87834-2204105

AL11

BEIGE,IKI,BEIGE,TRIM4#

 1
87834-2008004

AL11

BLUE,BLUE,TRIM8#

 1
87834-2204103

AL11

GRAY,IKI,GRAY,TRIM2#

 1
87834-2008013

AL11

GRAY,GRAY,TRIM2#

 1
87834-2008015

AL11

BEIGE,BEIGE,TRIM4#

 1
87834-2008008

AL11

IVORY,IVORY,TRIM2#,4#,8#

 1
87834-2007113

AL11

GRAY,MURAKAMI,GRAY,TRIM2#

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-16071

AL11

DOOR MIRROR

 1
87910-16070

AL11

DOOR MIRROR

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-16071

AL11

DOOR MIRROR

 1
87910-16070

AL11

DOOR MIRROR

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-16071

AL11

DOOR MIRROR

 1
87940-16070

AL11

DOOR MIRROR

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-16071

AL11

DOOR MIRROR

 1
87940-16070

AL11

DOOR MIRROR

 1
Common parts
93319-15016
94110-40600
