AL11L-ZDMRSW (1979)

Toyota Tercel

Production Jan 1979 - Apr 1982
Engine 2A
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7901- )

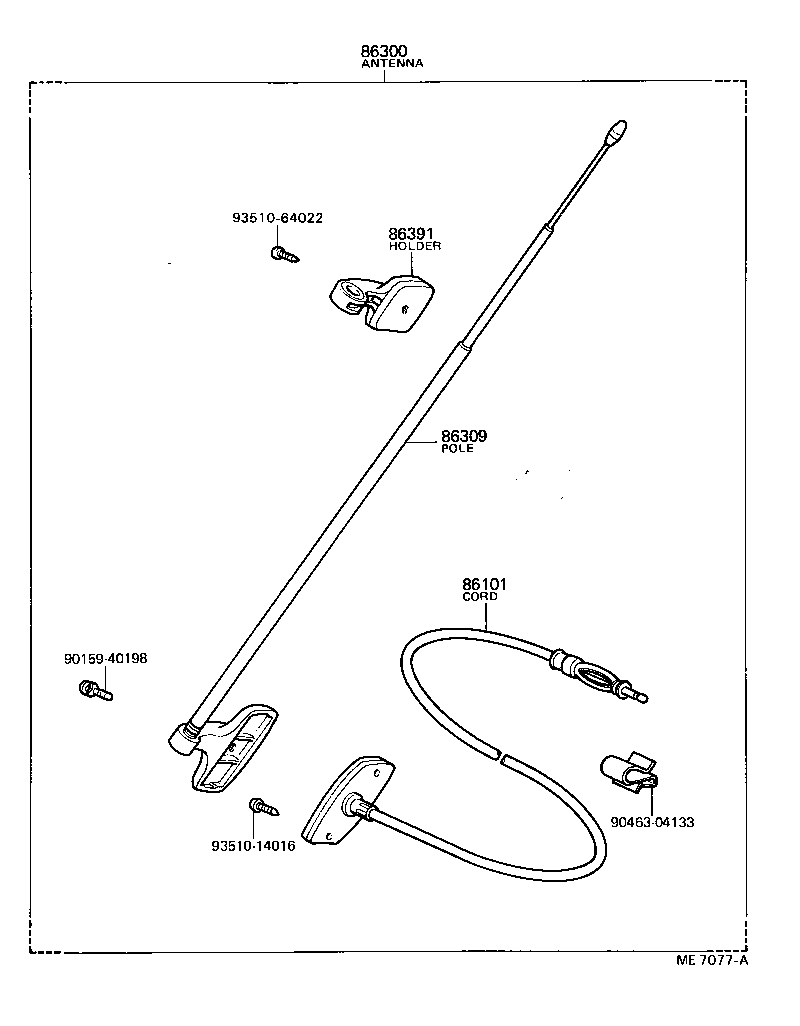

Click highlighted areas on diagram

diagram 86101 86300 86309 86391 9015940198 9046304133 9351014016 9351064022
Part # Description Qty Price
86101 - CORD SUB-ASSY, ANTENNA
86101-16020

AL11

 1
86300 - ANTENNA ASSY, W/HOLDER
86300-16030

AL11..LHD

 1
86309 - POLE SUB-ASSY, PILLAR ANTENNA
86309-16030

AL11..LHD

 1
86391 - HOLDER, ANTENNA
86391-16020

AL11

 1
Common parts
90159-40198
90463-04133
93510-14016
93510-64022
