Toyota Tercel AL11 RADIO RECEIVER & AMPLIFIER & CONDENSER

Part #	Description	Period	Qty
86011 - RADIO & SETTING PARTS SET
86011-19345	AL11..EUR LW/MW/UKW,MATSUSHITA	01/1979 - 08/1980	1
86011-19335	AL11..LHD AM,TEN	01/1979 - 08/1980	1
86011A - CONDENSER, RADIO SETTING
90980-04010	AL11 VOLTAGE REGULATOR	01/1979 - 08/1980	1
90980-04030	AL11 IGNITION COIL	01/1979 - 08/1980	1
90980-04036	AL11 IGNITION COIL	08/1980 - 04/1982	1
90980-04023	AL11 VOLTAGE REGULATOR	08/1980 - 04/1982	1
86011A - CONDENSER, RADIO SETTING
90980-04010	AL11 VOLTAGE REGULATOR	01/1979 - 08/1980	1
90980-04030	AL11 IGNITION COIL	01/1979 - 08/1980	1
90980-04036	AL11 IGNITION COIL	08/1980 - 04/1982	1
90980-04023	AL11 VOLTAGE REGULATOR	08/1980 - 04/1982	1
86011C - FILTER, NOISE
90980-05049	AL11..EUR LW/MW/UKW,TEN	01/1979 - 04/1982	1
90980-05050	AL11..EUR LW/MW/UKW,MATSUSHITA	01/1979 - 04/1982	1
86120 - RECEIVER ASSY, RADIO
86120-16090	AL11..EUR LW/MW/UKW,MATSUSHITA	01/1979 - 04/1982	1
86120-16070	AL11..LHD AM,TEN	01/1979 - 07/1980	1
86120-16130	AL11 AM,MATSUSHITA	08/1980 - 04/1982	1
86120-16071	AL11 AM,TEN	07/1980 - 04/1982	1
86124 - KNOB, RADIO RECEIVER CONTROL
86124-16030	AL11 AM,SW/MW,LW/MW/UKW,TEN	01/1979 - 08/1980	2
86124-14060	AL11..EUR LW/MW/UKW,TEN	08/1980 - 04/1982	2
86124-16010	AL11 MATSUSHITA	01/1979 - 08/1980	2
86124-14060	AL11 AM & SW/MW MATUSHITA,AM TEN	08/1980 - 04/1982	2
86124 - KNOB, RADIO RECEIVER CONTROL
86124-16030	AL11 AM,SW/MW,LW/MW/UKW,TEN	01/1979 - 08/1980	2
86124-14060	AL11..EUR LW/MW/UKW,TEN	08/1980 - 04/1982	2
86124-16010	AL11 MATSUSHITA	01/1979 - 08/1980	2
86124-14060	AL11 AM & SW/MW MATUSHITA,AM TEN	08/1980 - 04/1982	2
86125 - KNOB, RADIO RECEIVER SWITCH
86125-16010	AL11 MATSUSHITA	01/1979 - 08/1980	2
86125-14020	AL11 AM & SW/MW MATUSHITA,AM TEN	08/1980 - 04/1982	2
86125-16030	AL11 AM,SW/MW,LW/MW/UKW,TEN	01/1979 - 08/1980	2
86125-14020	AL11..EUR LW/MW/UKW,TEN	08/1980 - 04/1982	2
86125 - KNOB, RADIO RECEIVER SWITCH
86125-16010	AL11 MATSUSHITA	01/1979 - 08/1980	2
86125-14020	AL11 AM & SW/MW MATUSHITA,AM TEN	08/1980 - 04/1982	2
86125-16030	AL11 AM,SW/MW,LW/MW/UKW,TEN	01/1979 - 08/1980	2
86125-14020	AL11..EUR LW/MW/UKW,TEN	08/1980 - 04/1982	2
86211 - BRACKET, RADIO, NO.1
86211-16110	AL11..LHD	08/1980 - 04/1982	1
86211-16050	AL11..LHD	01/1979 - 08/1980	1
86212 - BRACKET, RADIO, NO.2
86212-16050	AL11..LHD	01/1979 - 08/1980	1
86212-16110	AL11..LHD	08/1980 - 04/1982	1
Common parts
90167-40014
90170-09167
90201-09351
93312-15008
93319-15008
93567-55016

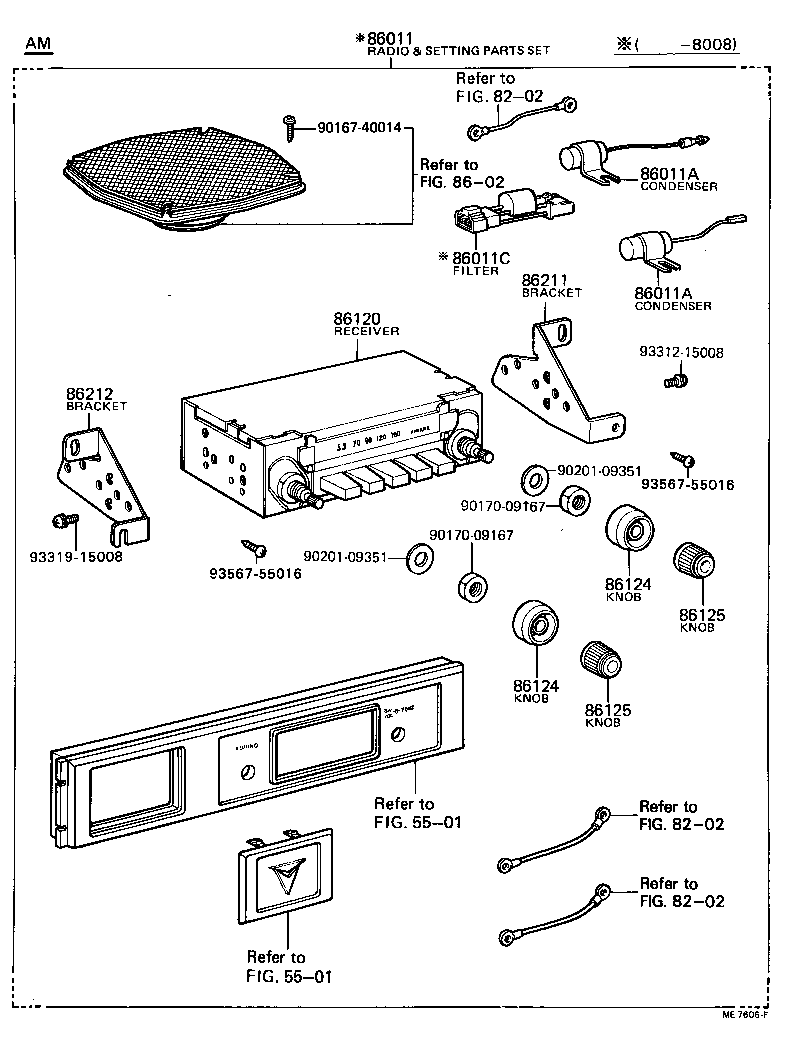

Linked diagrams
5501
8202
8602

AL11L-ZDMRSW (1979)

(7901- )
