AL11L-ZDMRSW (1979)

Toyota Tercel

Production Jan 1979 - Apr 1982
Engine 2A
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7901- )EUR

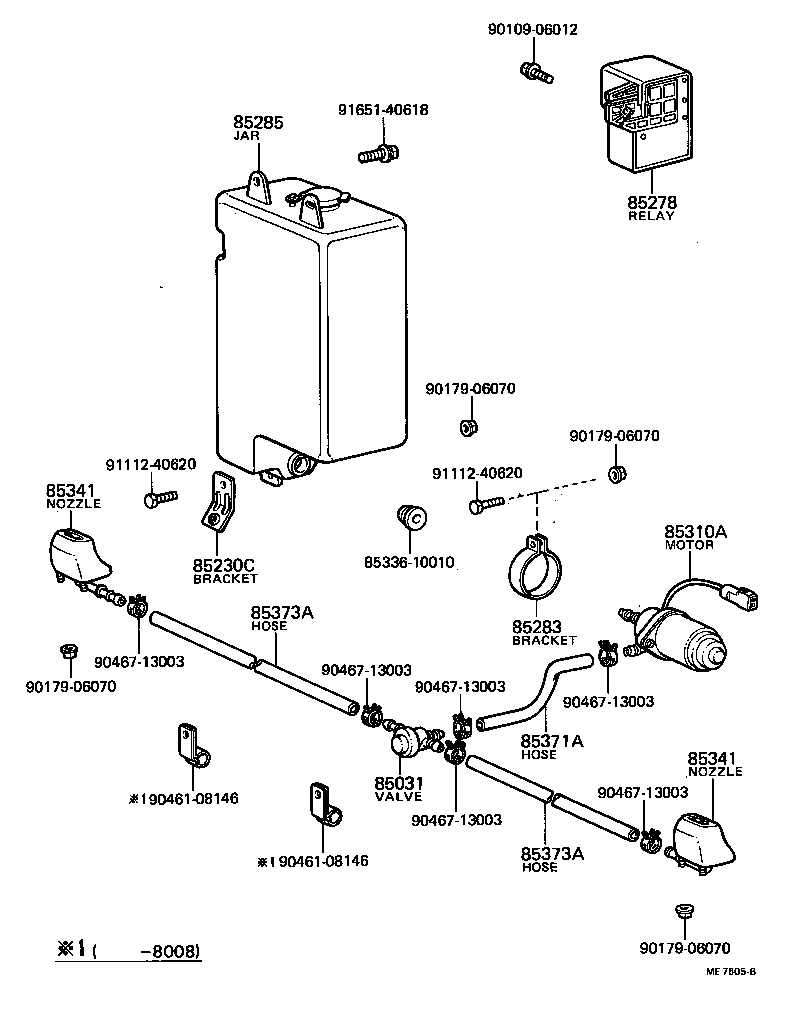

Click highlighted areas on diagram

diagram 85031 85230C 85278 85283 85285 85310A 8533610010 85341 85341 85371A 85373A 85373A 9010906012 9017906070 9017906070 9017906070 9017906070 9046108146 9046108146 9046713003 9046713003 9046713003 9046713003 9046713003 9046713003 9111240620 9111240620 9165140618
Part # Description Qty Price
85031 - VALVE, HEADLAMP CLEANER WASHER HOSE
85031-12010

AL11..EUR

 1
85230C - BRACKET ASSY, HEADLAMP CLEANER
85361-16031

AL11..EUR

 1
85361-16030

AL11..EUR

 1
85278 - RELAY ASSY, HEADLAMP CLEANER CONTROL
85276-14010

AL11..EUR

 1
85283 - BRACKET, HEADLAMP CLEANER WASHER
85361-10070

AL11..EUR

 1
85285 - JAR, HEADLAMP CLEANER WASHER
85330-16050

AL11..EUR

 1
85310A - MOTOR AND PUMP ASSY, HEADLAMP CLEANER WASHER
85310-10090

AL11..EUR

 1
85310-16010

AL11..EUR

 1
85341 - NOZZLE, HEADLAMP CLEANER WASHER
85035-16020

AL11..EUR

 2
85341 - NOZZLE, HEADLAMP CLEANER WASHER
85035-16020

AL11..EUR

 2
85371A - HOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT)
85343-12030

AL11..EUR

L=430

 1
85373A - HOSE, HEADLAMP CLEANER WASHER (FROM JOINT TO NOZZLE)
90445-14048

AL11..EUR

L=150

 1
90445-14049

AL11..EUR

*H,L=920

 1
85373A - HOSE, HEADLAMP CLEANER WASHER (FROM JOINT TO NOZZLE)
90445-14048

AL11..EUR

L=150

 1
90445-14049

AL11..EUR

*H,L=920

 1
Common parts
85336-10010
90109-06012
90179-06070
90461-08146
90467-13003
91112-40620
91651-40618
