AL11L-ZDMRSW (1979)

Toyota Tercel

Production Jan 1979 - Apr 1982
Engine 2A
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7901-8008)

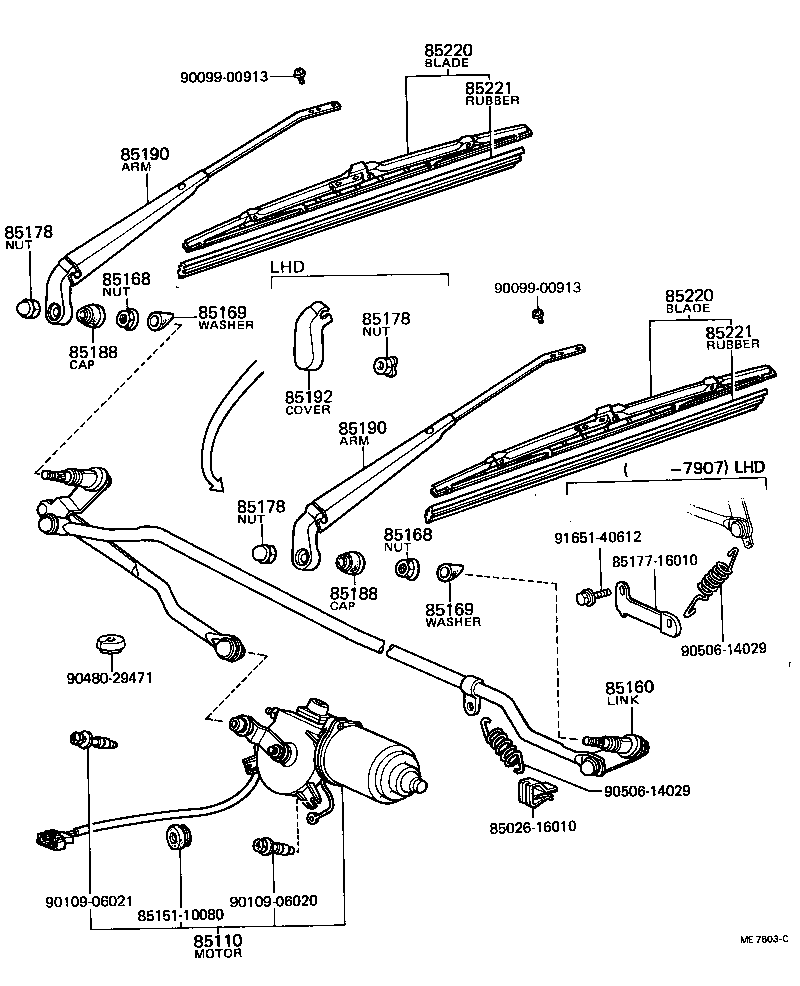

Click highlighted areas on diagram

diagram 8502616010 85110 8515110080 85160 85168 85168 85169 85169 8517716010 85178 85178 85178 85188 85188 85190 85190 85192 85220 85220 85221 85221 9009900913 9009900913 9010906020 9010906021 9048029471 9050614029 9050614029 9165140612
Part # Description Qty Price
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-16040

AL11..LHD

 1
85110-16050

AL11..EUR

COLD SPEC

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85160-16050

AL11..LHD

LH

 1
85160-16020

AL11..LHD

 1
85160-16030

AL11..EUR

COLD SPEC

 1
85160-16090

AL11..LHD

RH

 1
85168 - NUT, WINDSHIELD WIPER LINK PIVOT
85186-10081

AL11

 2
85168 - NUT, WINDSHIELD WIPER LINK PIVOT
85186-10081

AL11

 2
85169 - WASHER, WINDSHIELD WIPER LINK PIVOT, NO.1
85176-16010

AL11

 2
85169 - WASHER, WINDSHIELD WIPER LINK PIVOT, NO.1
85176-16010

AL11

 2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90179-08123

AL11..LHD

 2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90179-08123

AL11..LHD

 2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90179-08123

AL11..LHD

 2
85188 - CAP, WINDSHIELD WIPER PIVOT, NO.1
85178-16010

AL11

 2
85188 - CAP, WINDSHIELD WIPER PIVOT, NO.1
85178-16010

AL11

 2
85190 - ARM ASSY, WINDSHIELD WIPER
85190-16030

AL11..LHD

 2
85190-16060

AL11..EUR

 2
85190 - ARM ASSY, WINDSHIELD WIPER
85190-16030

AL11..LHD

 2
85190-16060

AL11..EUR

 2
85192 - COVER, WINDSHIELD WIPER ARM
85192-14010

AL11..LHD

 2
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-16020

AL11..LHD

 2
85220-16040

AL11..EUR

 2
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-16020

AL11..LHD

 2
85220-16040

AL11..EUR

 2
85221 - BLADE, WINDSHIELD WIPER
85221-16020

AL11..LHD

 2
85221-16040

AL11..EUR

 2
85221 - BLADE, WINDSHIELD WIPER
85221-16020

AL11..LHD

 2
85221-16040

AL11..EUR

 2
Common parts
85026-16010
85151-10080
85177-16010
90099-00913
90109-06020
90109-06021
90480-29471
90506-14029
91651-40612

(8008- )

Click highlighted areas on diagram

diagram 85120 85160 85160 85178 85178 85178 85190 85190 85190 85192 85220 85220 85221 85221 9009900913 9009900913 9009900913 9010906032 9010906032 9010906033 9015960211 9015960211 9017906158
Part # Description Qty Price
85120 - MOTOR AND BRACKET ASSY, WINDSHIELD WIPER
85120-16040

AL11..EUR

COLD SPEC

 1
85120-16030

AL11..LHD

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85160-16050

AL11..LHD

LH

 1
85160-16020

AL11..LHD

 1
85160-16030

AL11..EUR

COLD SPEC

 1
85160-16090

AL11..LHD

RH

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85160-16050

AL11..LHD

LH

 1
85160-16020

AL11..LHD

 1
85160-16030

AL11..EUR

COLD SPEC

 1
85160-16090

AL11..LHD

RH

 1
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90179-08123

AL11..LHD

 2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90179-08123

AL11..LHD

 2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90179-08123

AL11..LHD

 2
85190 - ARM ASSY, WINDSHIELD WIPER
85190-16030

AL11..LHD

 2
85190-16060

AL11..EUR

 2
85190 - ARM ASSY, WINDSHIELD WIPER
85190-16030

AL11..LHD

 2
85190-16060

AL11..EUR

 2
85190 - ARM ASSY, WINDSHIELD WIPER
85190-16030

AL11..LHD

 2
85190-16060

AL11..EUR

 2
85192 - COVER, WINDSHIELD WIPER ARM
85192-14010

AL11..LHD

 2
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-16020

AL11..LHD

 2
85220-16040

AL11..EUR

 2
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-16020

AL11..LHD

 2
85220-16040

AL11..EUR

 2
85221 - BLADE, WINDSHIELD WIPER
85221-16020

AL11..LHD

 2
85221-16040

AL11..EUR

 2
85221 - BLADE, WINDSHIELD WIPER
85221-16020

AL11..LHD

 2
85221-16040

AL11..EUR

 2
Common parts
90099-00913
90109-06032
90109-06033
90159-60211
90179-06158
