AL11L-ZDMRSW (1979)
Toyota Tercel

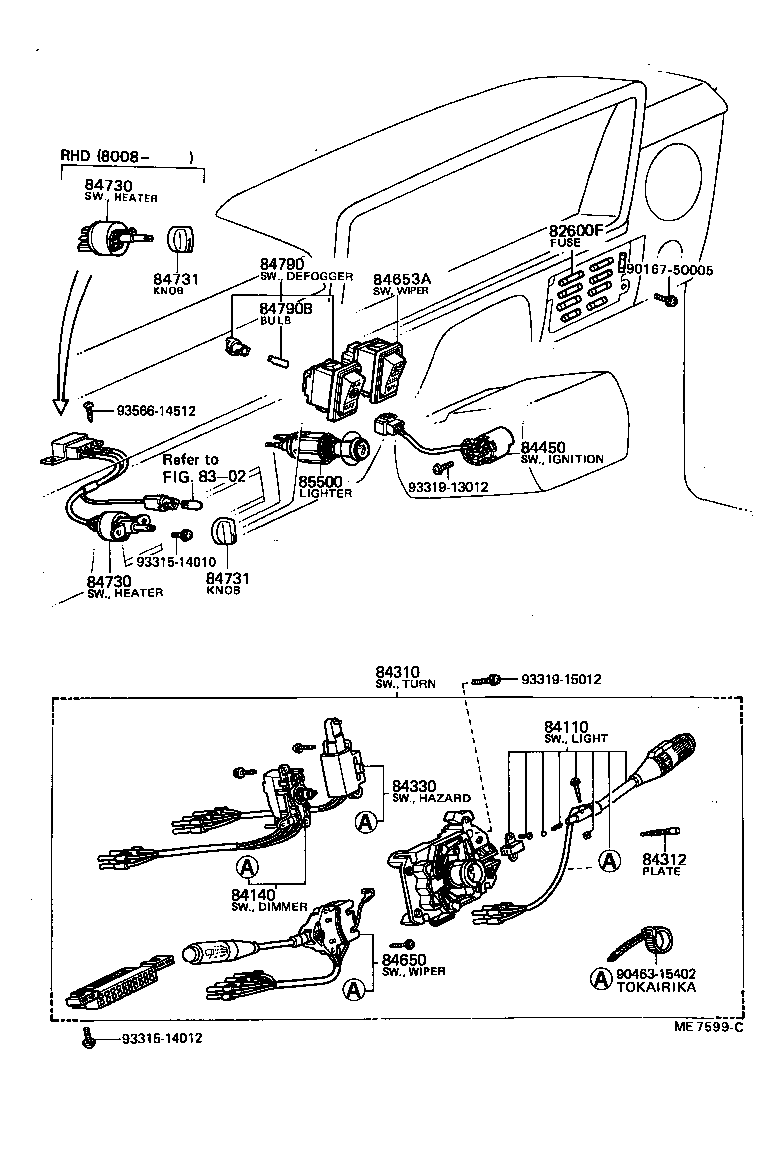

(7901- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 99118-62005 |
AL11 5A |
4 | ||
| 99118-62915 |
AL11 15A,15A |
2 | ||
| 90982-07010 |
AL11..LHD 7.5A |
1 | ||
| 99118-62910 |
AL11 10A |
9 | ||
| 99118-62920 |
AL11 20A,20A |
6 | ||
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-19086 |
AL11..LHD TOKAIRIKA |
1 | ||
| 84112-19106 |
AL11..LHD MATSUSHITA |
1 | ||
| 84112-19087 |
AL11..LHD TOKAIRIKA |
1 | ||
| 84112-19105 |
AL11..LHD MATSUSHITA |
1 | ||
| 84112-19085 |
AL11..LHD TOKAIRIKA |
1 | ||
| 84112-19107 |
AL11..LHD MATSUSHITA |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-10041 |
AL11..LHD MATSUSHITA |
1 | ||
| 84140-19025 |
AL11..LHD TOKAIRIKA |
1 | ||
| 84140-19026 |
AL11..LHD TOKAIRIKA |
1 | ||
| 84140-10040 |
AL11..LHD MATSUSHITA |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-10300 |
AL11..EUR W/MIST WIPER |
1 | ||
| 84310-10302 |
AL11..LHD W/MIST WIPER |
1 | ||
| 84310-10230 |
AL11..LHD |
1 | ||
| 84310-10301 |
AL11..LHD W/MIST WIPER |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-20011 |
AL11 TOKAIRIKA |
1 | ||
| 84312-20020 |
AL11 MATSUSHITA |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-10090 |
AL11..LHD MATSUSHITA |
1 | ||
| 84332-19025 |
AL11..LHD TOKAIRIKA |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-10080 |
AL11..LHD |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-10110 |
AL11..LHD MATSUSHITA |
1 | ||
| 84652-10150 |
AL11..EUR MATSUSHITA MIST WIPER |
1 | ||
| 84652-19295 |
AL11..EUR TOKAIRIKA MIST WIPER |
1 | ||
| 84652-19155 |
AL11..LHD TOKAIRIKA |
1 | ||
| 84652-10151 |
AL11..LHD MATSUSHITA MIST WIPER |
1 | ||
| 84652-19296 |
AL11..LHD TOKAIRIKA MIST WIPER |
1 | ||
| 84652-19297 |
AL11..LHD TOKAIRIKA MIST WIPER |
1 | ||
| 84652-10152 |
AL11..LHD MATSUSHITA MIST WIPER |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-16020 |
AL11..LHD |
1 | ||
| 84732-16021 |
AL11..LHD |
1 | ||
| 84732-16022 |
AL11..LHD |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-16020 |
AL11..LHD |
1 | ||
| 84732-16021 |
AL11..LHD |
1 | ||
| 84732-16022 |
AL11..LHD |
1 | ||
| 84731 - KNOB, HEATER BLOWER SWITCH | ||||
| 84731-12010 |
AL11 |
1 | ||
| 84731-16010 |
AL11 |
1 | ||
| 84731 - KNOB, HEATER BLOWER SWITCH | ||||
| 84731-12010 |
AL11 |
1 | ||
| 84731-16010 |
AL11 |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-16010 |
AL11 |
1 | ||
| 84790-16011 |
AL11 |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 90981-11018 |
AL11 12V 1.2W W/O SOCKET,12V 1.4W |
1 | ||
| 90981-11024 |
AL11 12V 1.4W,12V 1.4W |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-12060 |
AL11..EUR |
1 | ||
| 85500-12061 |
AL11..EUR |
1 | ||
| 85500-16030 |
AL11..EUR |
1 | ||
| Common parts | ||||
| 90167-50005 | ||||
| 90463-15402 | ||||
| 93315-14010 | ||||
| 93315-14012 | ||||
| 93319-13012 | ||||
| 93319-15012 | ||||
| 93566-14512 | ||||
| Linked diagrams | ||||
| 8302 | ||||

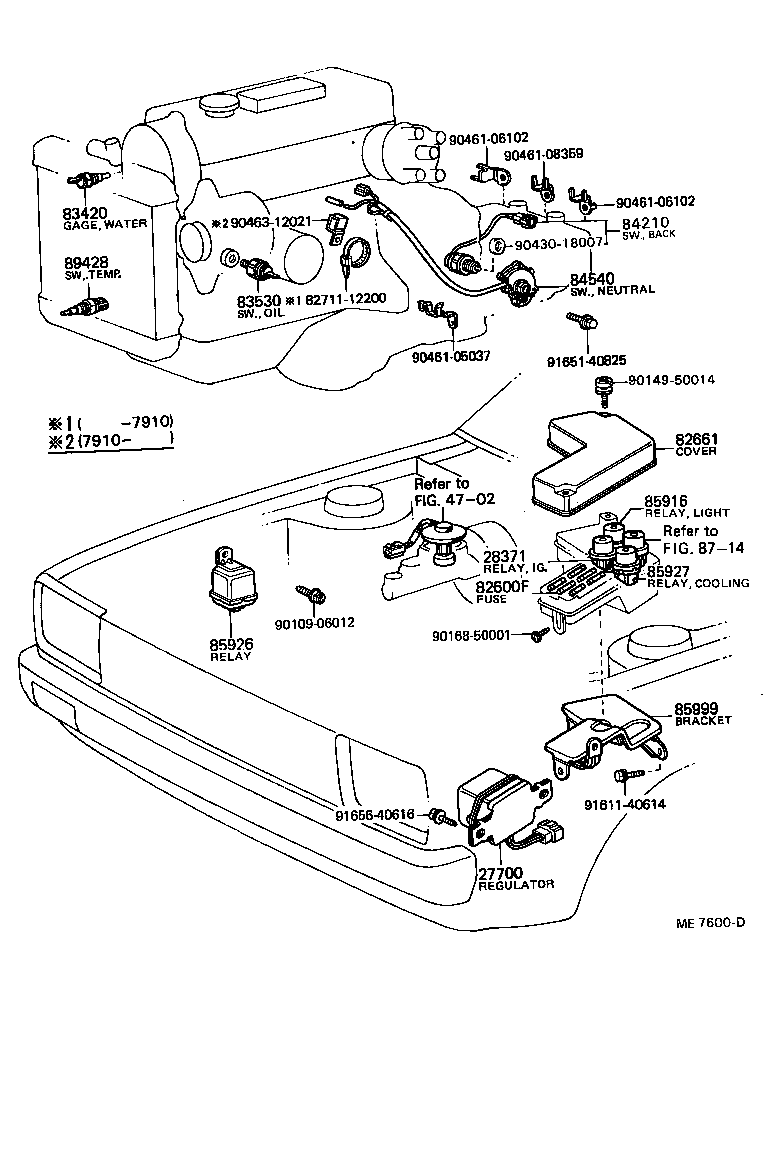

(7901- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27700 - REGULATOR ASSY, GENERATOR | ||||
| 27700-15010 |
2A..AL11 |
1 | ||
| 27700-15011 |
2A..AL11 |
1 | ||
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-02001 |
2A..AL11 |
1 | ||
| 90987-02004 |
2A..AL11 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 99118-62005 |
AL11 5A |
4 | ||
| 99118-62915 |
AL11 15A,15A |
2 | ||
| 90982-07010 |
AL11..LHD 7.5A |
1 | ||
| 99118-62910 |
AL11 10A |
9 | ||
| 99118-62920 |
AL11 20A,20A |
6 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-16020 |
AL11..EUR |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16010 |
AL11 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-10020 |
AL11 DENSO |
1 | ||
| 83530-36011 |
AL11 YAZAKI |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-16010 |
AL11..MTM |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01001 |
AL11..EUR |
1 | ||
| 90987-01003 |
AL11..EUR |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 85926-14010 |
AL11..EUR |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-03001 |
AL11 |
1 | ||
| 85999 - BRACKET, COMBINATION RELAY | ||||
| 85999-16010 |
AL11 |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-15010 |
AL11 |
1 | ||
| 89428-15011 |
AL11 |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 90109-06012 | ||||
| 90149-50014 | ||||
| 90168-50001 | ||||
| 90430-18007 | ||||
| 90461-05037 | ||||
| 90461-06102 | ||||
| 90461-08359 | ||||
| 90463-12021 | ||||
| 91611-40614 | ||||
| 91651-40825 | ||||
| 91656-40616 | ||||
| Linked diagrams | ||||
| 4702 | ||||
| 8714 | ||||

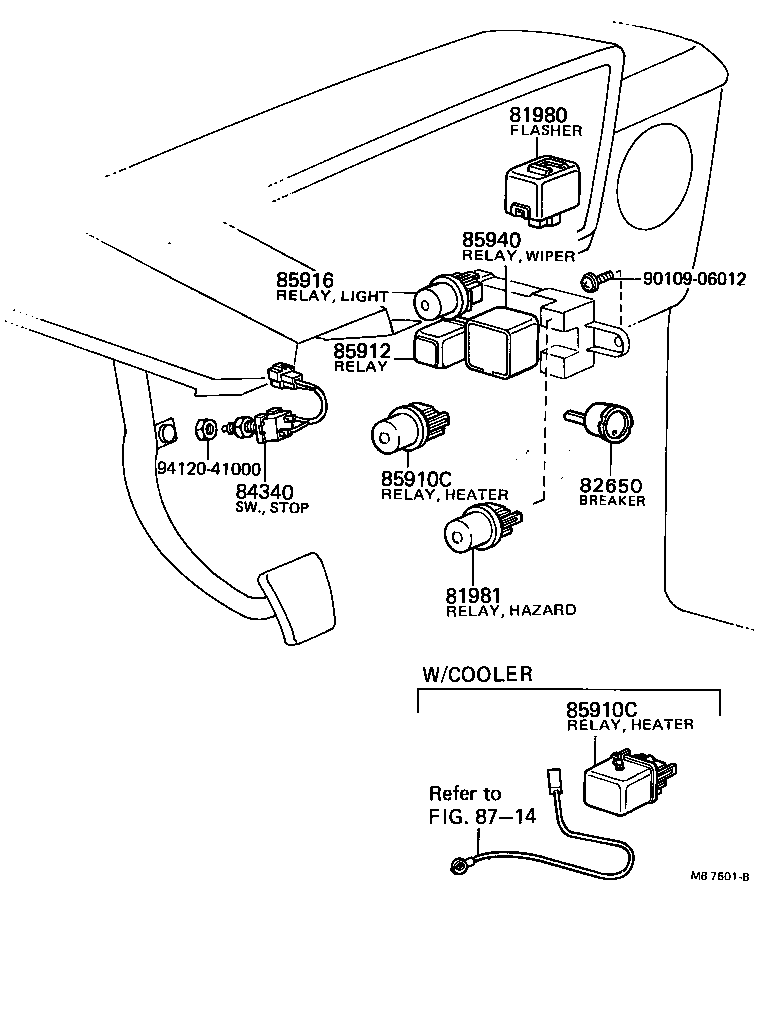

(7901- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-22060 |
AL11 |
1 | ||
| 81980-22070 |
AL11 |
1 | ||
| 81981 - FLASHER ASSY, HAZARD WARNING SIGNAL | ||||
| 90987-03001 |
AL11..EUR QUICK FLASHER |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20010 |
AL11..EUR COWL HARNESS |
1 | ||
| 82650-20011 |
AL11..EUR 30A,COWL HARNESS |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-22071 |
AL11 TOKAIRIKA |
1 | ||
| 84340-22060 |
AL11 MATSUSHITA |
1 | ||
| 84340-36030 |
AL11 MATSUSHITA |
1 | ||
| 84340-22072 |
AL11 TOKAIRIKA |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-02004 |
AL11 |
1 | ||
| 90987-02001 |
AL11 |
1 | ||
| 90987-02002 |
AL11 |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-02004 |
AL11 |
1 | ||
| 90987-02001 |
AL11 |
1 | ||
| 90987-02002 |
AL11 |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02002 |
AL11 |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01001 |
AL11..EUR |
1 | ||
| 90987-01003 |
AL11..EUR |
1 | ||
| Common parts | ||||
| 90109-06012 | ||||
| 94120-41000 | ||||
| Linked diagrams | ||||
| 8714 | ||||

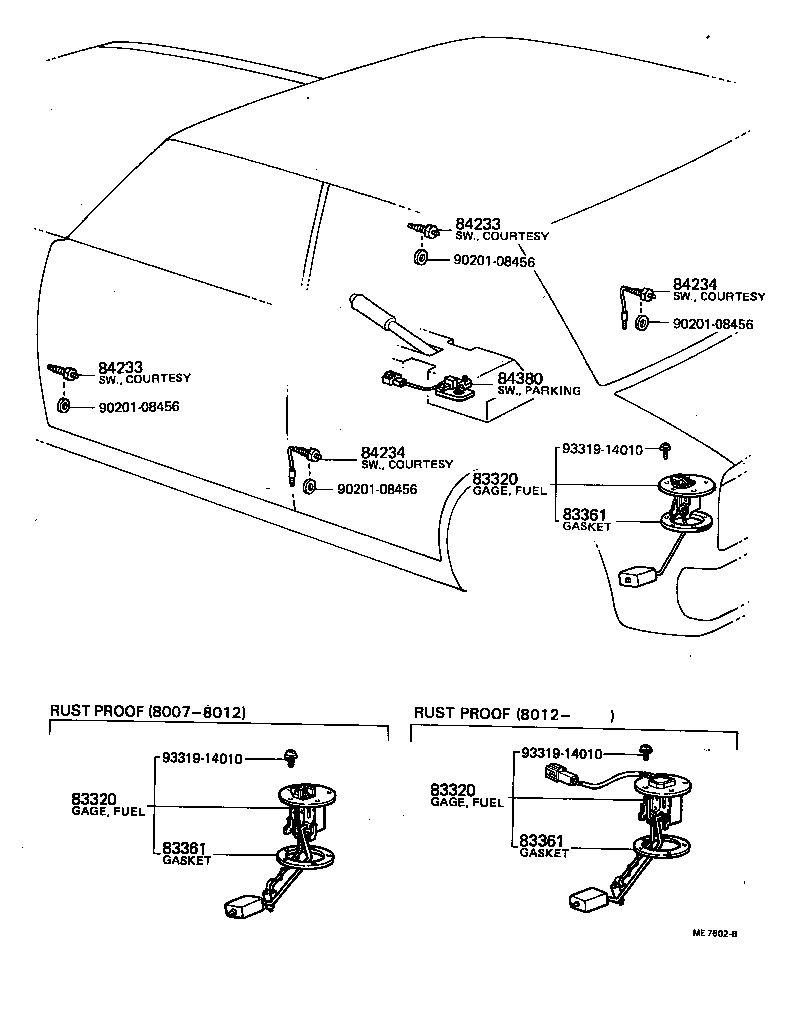

(7901- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-19445 |
AL11..STD..EUR RUST-PROOF(PAINTED) |
1 | ||
| 83320-19355 |
AL11..STD |
1 | ||
| 83320-19505 |
AL11..STD..EUR RUST-PROOF(PAINTED) |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-19445 |
AL11..STD..EUR RUST-PROOF(PAINTED) |
1 | ||
| 83320-19355 |
AL11..STD |
1 | ||
| 83320-19505 |
AL11..STD..EUR RUST-PROOF(PAINTED) |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-19445 |
AL11..STD..EUR RUST-PROOF(PAINTED) |
1 | ||
| 83320-19355 |
AL11..STD |
1 | ||
| 83320-19505 |
AL11..STD..EUR RUST-PROOF(PAINTED) |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
AL11 |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
AL11 |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
AL11 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84230-20040 |
AL11 |
2 | ||
| 84230-12050 |
AL11 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84230-20040 |
AL11 |
2 | ||
| 84230-12050 |
AL11 |
2 | ||
| 84380 - SWITCH ASSY, BRAKE WARNING TEST | ||||
| 84380-16011 |
AL11 |
1 | ||
| Common parts | ||||
| 90201-08456 | ||||
| 93319-14010 | ||||
