AL11L-ZDMRSW (1979)

Toyota Tercel

Production Jan 1979 - Apr 1982
Engine 2A
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7901- )

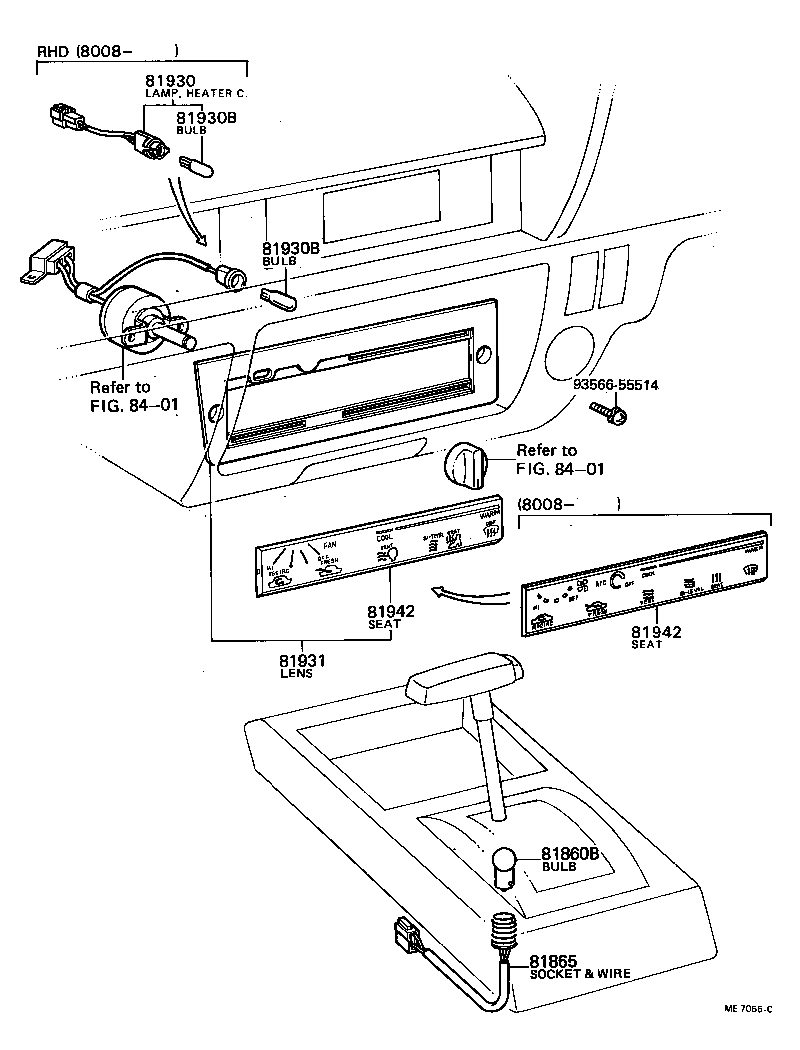

Click highlighted areas on diagram

diagram 81860B 81865 81930 81930B 81930B 81931 81942 81942 8401 8401 9356655514
Part # Description Qty Price
81930B - BULB, HEATER CONTROL INDICATOR LAMP
90981-11014

AL11

14V 1.4W,12V 1.4W

 1
81930B - BULB, HEATER CONTROL INDICATOR LAMP
90981-11014

AL11

14V 1.4W,12V 1.4W

 1
81931 - LENS, HEATER CONTROL INDICATOR
81943-16030

AL11..LHD

 1
81943-16040

AL11..LHD

W/BOOST VENTILATOR

 1
81943-16021

AL11..LHD

 1
81943-16041

AL11..LHD

W/BOOST VENTILATOR

 1
Common parts
93566-55514
Linked diagrams
8401
