AL11L-ZDMRSW (1979)
Toyota Tercel
(7901-8008)LHD

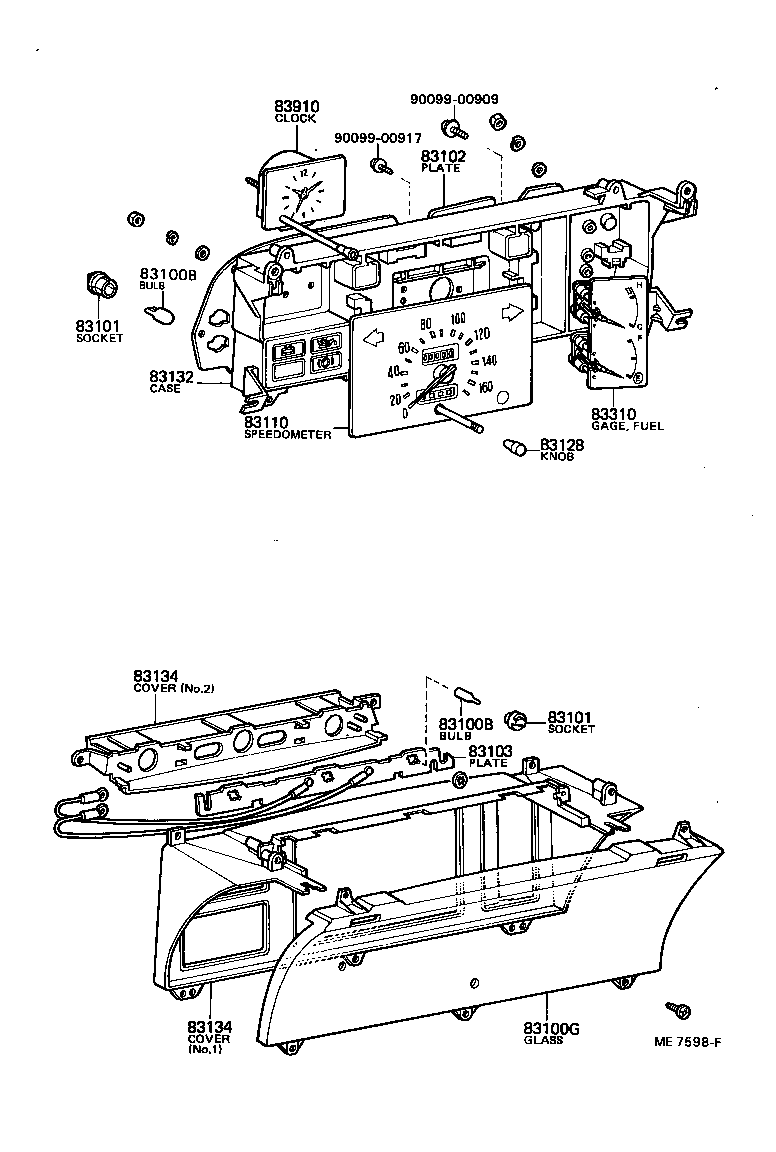

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
AL11 12V 1.2W W/O SOCKET,12V 1.4W |
8 | ||
| 99132-12034 |
AL11 12V 3.4W,12V 3.4W |
10 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
AL11 12V 1.2W W/O SOCKET,12V 1.4W |
8 | ||
| 99132-12034 |
AL11 12V 3.4W,12V 3.4W |
10 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83138-16230 |
AL11..STD..EUR |
1 | ||
| 83138-16290 |
AL11..EUR WEST GERMANY SPEC |
1 | ||
| 83138-16130 |
AL11..LHD..STD |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
AL11 12V 1.4W |
8 | ||
| 83101-14030 |
AL11 12V 3.4W |
10 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
AL11 12V 1.4W |
8 | ||
| 83101-14030 |
AL11 12V 3.4W |
10 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-16370 |
AL11..LHD |
1 | ||
| 83247-16130 |
AL11..LHD..STD |
1 | ||
| 83247-16410 |
AL11..EUR WEST GERMANY SPEC |
1 | ||
| 83247-16530 |
AL11..EUR |
1 | ||
| 83103 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.2 | ||||
| 83247-16150 |
AL11..LHD |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-16100 |
AL11..LHD..STD KM |
1 | ||
| 83110-16120 |
AL11..LHD..STD MILE & KM |
1 | ||
| 83110-16210 |
AL11..EUR WEST GERMANY SPEC |
1 | ||
| 83110-16101 |
AL11..STD..EUR KM |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-16130 |
AL11..LHD..STD |
1 | ||
| 83132-16330 |
AL11..STD..EUR |
1 | ||
| 83132-16390 |
AL11..EUR WEST GERMANY SPEC |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83133-16130 |
AL11..LHD NO.1 |
1 | ||
| 83133-16290 |
AL11..LHD |
1 | ||
| 83133-16140 |
AL11..LHD NO.2 |
1 | ||
| 83133-16350 |
AL11..EUR WEST GERMANY SPEC |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83133-16130 |
AL11..LHD NO.1 |
1 | ||
| 83133-16290 |
AL11..LHD |
1 | ||
| 83133-16140 |
AL11..LHD NO.2 |
1 | ||
| 83133-16350 |
AL11..EUR WEST GERMANY SPEC |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-16130 |
AL11..LHD..STD |
1 | ||
| 83243-16210 |
AL11..EUR |
1 | ||
| 83243-16230 |
AL11..EUR WEST GERMANY SPEC |
1 | ||
| Common parts | ||||
| 90099-00909 | ||||
| 90099-00917 | ||||
(7901- )

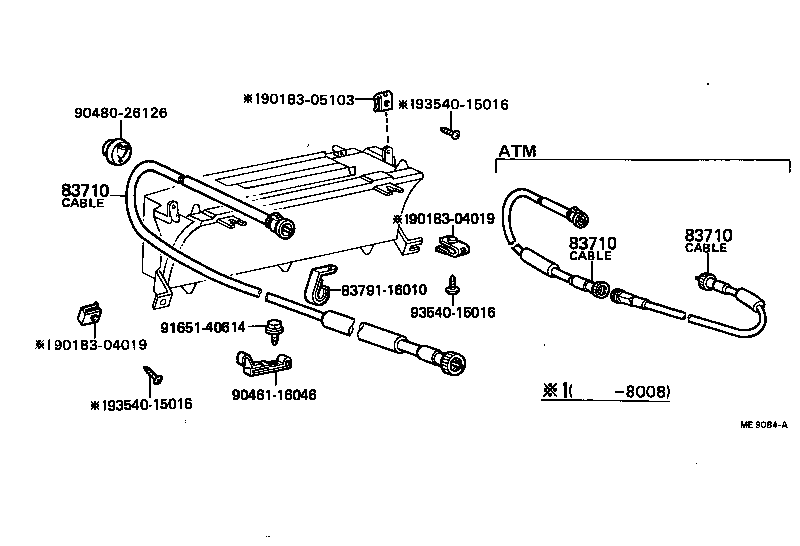

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-16010 |
AL11..LHD L=1350 |
1 | ||
| 83710-16011 |
AL11..LHD..MTM L=1350 |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-16010 |
AL11..LHD L=1350 |
1 | ||
| 83710-16011 |
AL11..LHD..MTM L=1350 |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-16010 |
AL11..LHD L=1350 |
1 | ||
| 83710-16011 |
AL11..LHD..MTM L=1350 |
1 | ||
| Common parts | ||||
| 83791-16010 | ||||
| 90183-04019 | ||||
| 90183-05103 | ||||
| 90461-16046 | ||||
| 90480-26126 | ||||
| 91651-40614 | ||||
| 93540-15016 | ||||
(8008- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
AL11 12V 1.2W W/O SOCKET,12V 1.4W |
8 | ||
| 99132-12034 |
AL11 12V 3.4W,12V 3.4W |
10 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
AL11 12V 1.2W W/O SOCKET,12V 1.4W |
8 | ||
| 99132-12034 |
AL11 12V 3.4W,12V 3.4W |
10 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83138-16230 |
AL11..STD..EUR |
1 | ||
| 83138-16290 |
AL11..EUR WEST GERMANY SPEC |
1 | ||
| 83138-16130 |
AL11..LHD..STD |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
AL11 12V 1.4W |
8 | ||
| 83101-14030 |
AL11 12V 3.4W |
10 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
AL11 12V 1.4W |
8 | ||
| 83101-14030 |
AL11 12V 3.4W |
10 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-16370 |
AL11..LHD |
1 | ||
| 83247-16130 |
AL11..LHD..STD |
1 | ||
| 83247-16410 |
AL11..EUR WEST GERMANY SPEC |
1 | ||
| 83247-16530 |
AL11..EUR |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-16100 |
AL11..LHD..STD KM |
1 | ||
| 83110-16120 |
AL11..LHD..STD MILE & KM |
1 | ||
| 83110-16210 |
AL11..EUR WEST GERMANY SPEC |
1 | ||
| 83110-16101 |
AL11..STD..EUR KM |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-16130 |
AL11..LHD..STD |
1 | ||
| 83132-16330 |
AL11..STD..EUR |
1 | ||
| 83132-16390 |
AL11..EUR WEST GERMANY SPEC |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83133-16130 |
AL11..LHD NO.1 |
1 | ||
| 83133-16290 |
AL11..LHD |
1 | ||
| 83133-16140 |
AL11..LHD NO.2 |
1 | ||
| 83133-16350 |
AL11..EUR WEST GERMANY SPEC |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-16130 |
AL11..LHD..STD |
1 | ||
| 83243-16210 |
AL11..EUR |
1 | ||
| 83243-16230 |
AL11..EUR WEST GERMANY SPEC |
1 | ||
| Common parts | ||||
| 90092-20482 | ||||
| 90093-00416 | ||||
| 90099-00909 | ||||
| 90099-00917 | ||||
| 90167-50005 | ||||
| 90183-04006 | ||||
| 90183-05103 | ||||
| 93567-55016 | ||||
| 94511-00400 | ||||
(8008- )MTM..EUR

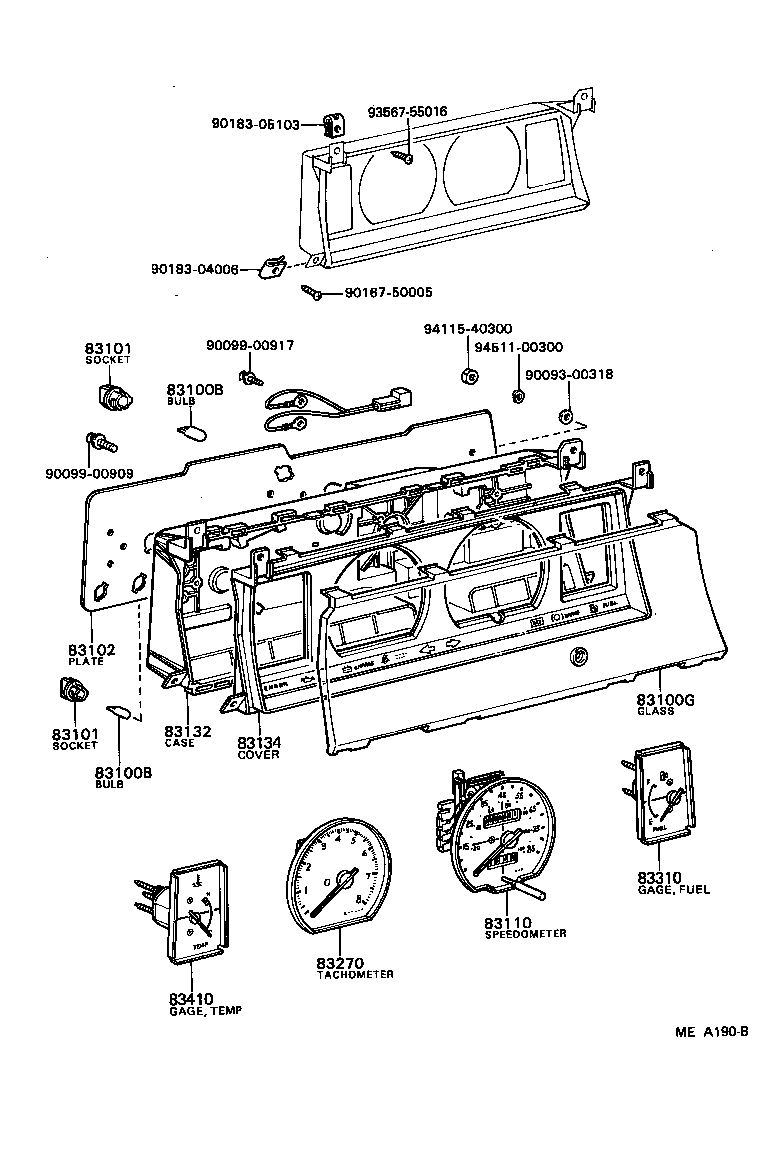

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
AL11 12V 1.2W W/O SOCKET,12V 1.4W |
8 | ||
| 99132-12034 |
AL11 12V 3.4W,12V 3.4W |
10 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
AL11 12V 1.2W W/O SOCKET,12V 1.4W |
8 | ||
| 99132-12034 |
AL11 12V 3.4W,12V 3.4W |
10 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83138-16230 |
AL11..STD..EUR |
1 | ||
| 83138-16290 |
AL11..EUR WEST GERMANY SPEC |
1 | ||
| 83138-16130 |
AL11..LHD..STD |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
AL11 12V 1.4W |
8 | ||
| 83101-14030 |
AL11 12V 3.4W |
10 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
AL11 12V 1.4W |
8 | ||
| 83101-14030 |
AL11 12V 3.4W |
10 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-16370 |
AL11..LHD |
1 | ||
| 83247-16130 |
AL11..LHD..STD |
1 | ||
| 83247-16410 |
AL11..EUR WEST GERMANY SPEC |
1 | ||
| 83247-16530 |
AL11..EUR |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-16100 |
AL11..LHD..STD KM |
1 | ||
| 83110-16120 |
AL11..LHD..STD MILE & KM |
1 | ||
| 83110-16210 |
AL11..EUR WEST GERMANY SPEC |
1 | ||
| 83110-16101 |
AL11..STD..EUR KM |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-16130 |
AL11..LHD..STD |
1 | ||
| 83132-16330 |
AL11..STD..EUR |
1 | ||
| 83132-16390 |
AL11..EUR WEST GERMANY SPEC |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83133-16130 |
AL11..LHD NO.1 |
1 | ||
| 83133-16290 |
AL11..LHD |
1 | ||
| 83133-16140 |
AL11..LHD NO.2 |
1 | ||
| 83133-16350 |
AL11..EUR WEST GERMANY SPEC |
1 | ||
| 83270 - TACHOMETER ASSY, ENGINE | ||||
| 83242-16090 |
AL11..EUR WEST GERMANY SPEC |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-16130 |
AL11..LHD..STD |
1 | ||
| 83243-16210 |
AL11..EUR |
1 | ||
| 83243-16230 |
AL11..EUR WEST GERMANY SPEC |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-16210 |
AL11..EUR WEST GERMANY SPEC |
1 | ||
| Common parts | ||||
| 90093-00318 | ||||
| 90099-00909 | ||||
| 90099-00917 | ||||
| 90167-50005 | ||||
| 90183-04006 | ||||
| 90183-05103 | ||||
| 93567-55016 | ||||
| 94115-40300 | ||||
| 94511-00300 | ||||
