AL11L-ZDMRSW (1979)
Toyota Tercel
(7901- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

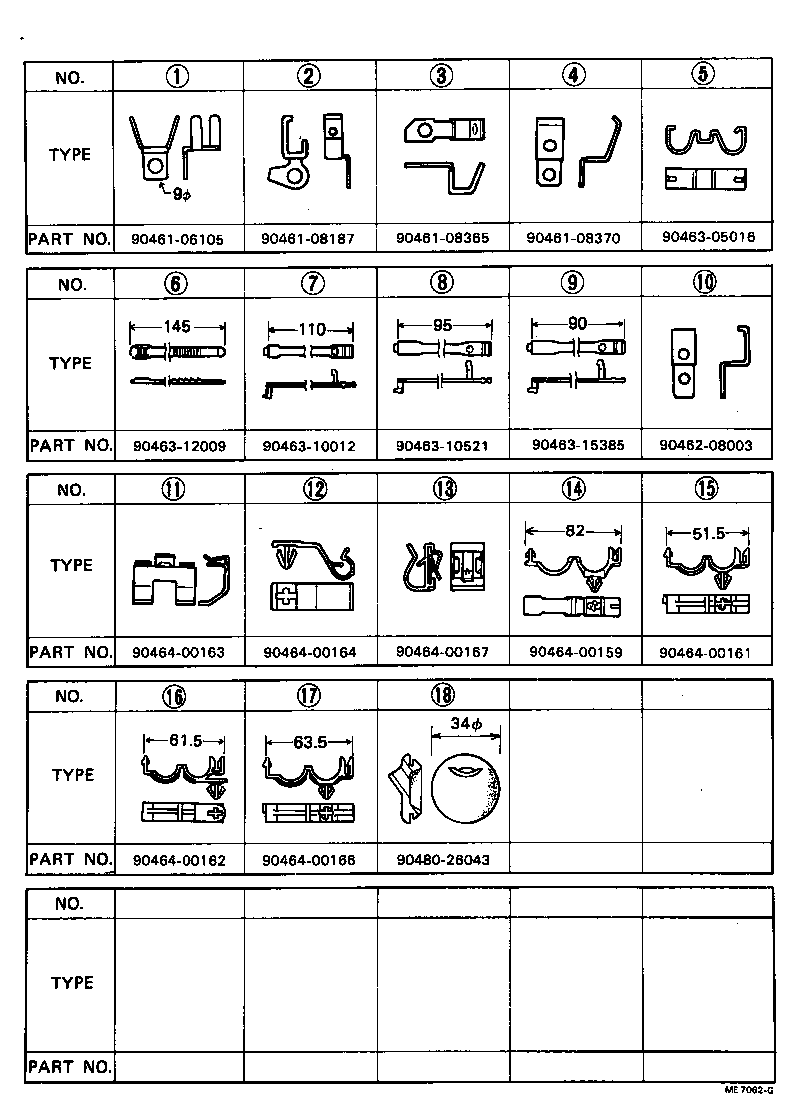

| Common parts | ||||
| 90461-06105 | ||||
| 90461-08187 | ||||
| 90461-08365 | ||||
| 90461-08370 | ||||
| 90462-08003 | ||||
| 90463-05016 | ||||
| 90463-10012 | ||||
| 90463-10521 | ||||
| 90463-12009 | ||||
| 90463-15385 | ||||
| 90464-00159 | ||||
| 90464-00161 | ||||
| 90464-00162 | ||||
| 90464-00163 | ||||
| 90464-00164 | ||||
| 90464-00166 | ||||
| 90464-00167 | ||||
| 90480-26043 | ||||
(7901- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

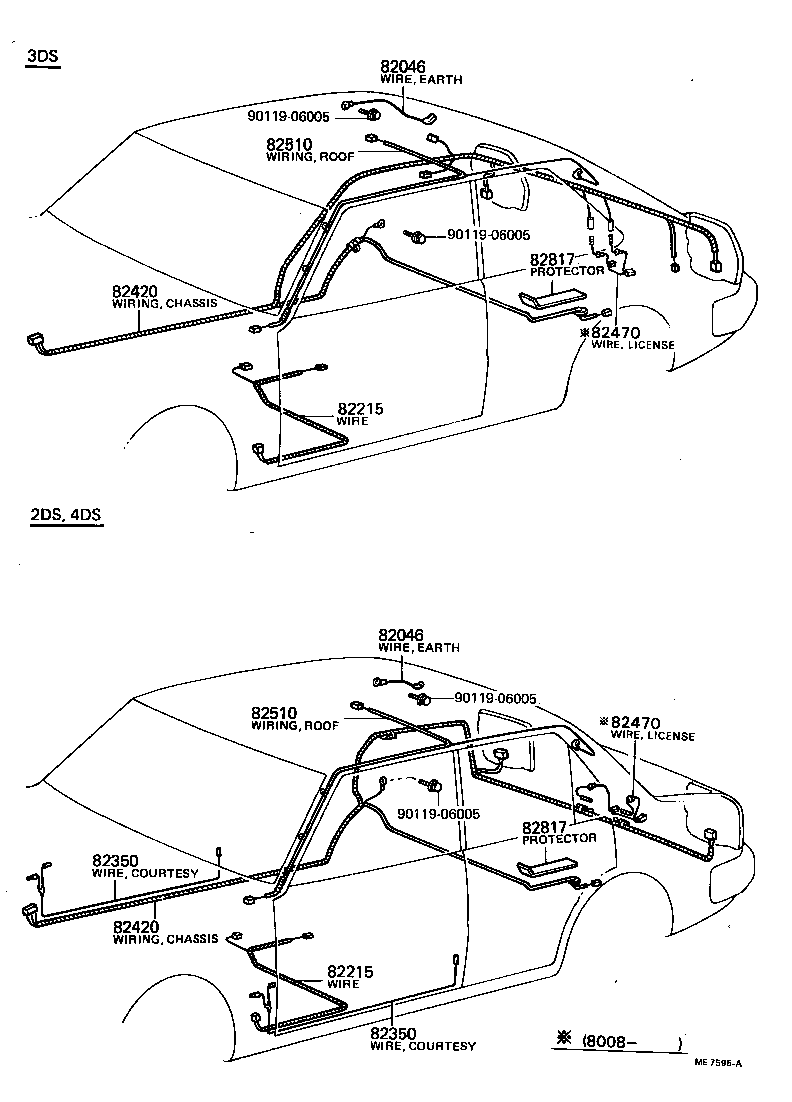

| 82046 - WIRE SUB-ASSY, REAR WINDOW DEFOGGER EARTH | ||||
| 82046-16020 |
AL11..2DS,4DS L=160,W/DEFOGGER |
1 | ||
| 82046 - WIRE SUB-ASSY, REAR WINDOW DEFOGGER EARTH | ||||
| 82046-16020 |
AL11..2DS,4DS L=160,W/DEFOGGER |
1 | ||
| 82215 - WIRE, PARKING BRAKE LAMP SWITCH | ||||
| 82215-16020 |
AL11..MTM |
1 | ||
| 82215 - WIRE, PARKING BRAKE LAMP SWITCH | ||||
| 82215-16020 |
AL11..MTM |
1 | ||
| 82420 - WIRING ASSY, CHASSIS | ||||
| 82420-16061 |
AL11..(2DS,4DS)..EUR |
1 | ||
| 82420-16060 |
AL11..(2DS,4DS)..EUR |
1 | ||
| 82420 - WIRING ASSY, CHASSIS | ||||
| 82420-16061 |
AL11..(2DS,4DS)..EUR |
1 | ||
| 82420-16060 |
AL11..(2DS,4DS)..EUR |
1 | ||
| 82470 - WIRE ASSY, LICENSE LAMP FEED | ||||
| 82470-16030 |
AL11 |
1 | ||
| 82470 - WIRE ASSY, LICENSE LAMP FEED | ||||
| 82470-16030 |
AL11 |
1 | ||
| 82510 - WIRING ASSY, ROOF | ||||
| 82510-16030 |
AL11 W/SUNROOF & DEFOGGER |
1 | ||
| 82510-16020 |
AL11 W/DEFOGGER |
1 | ||
| 82510-16010 |
AL11..STD W/O DEFOGGER |
1 | ||
| 82510 - WIRING ASSY, ROOF | ||||
| 82510-16030 |
AL11 W/SUNROOF & DEFOGGER |
1 | ||
| 82510-16020 |
AL11 W/DEFOGGER |
1 | ||
| 82510-16010 |
AL11..STD W/O DEFOGGER |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-16010 |
AL11 L=300X60 |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-16010 |
AL11 L=300X60 |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
(7901- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07119 |
AL11 L=320 |
1 | ||
| 90980-07173 |
AL11 L=270 |
1 | ||
| 90980-07156 |
AL11 L=280 |
1 | ||
| 90980-07162 |
AL11 L=300 |
1 | ||
| 90980-07178 |
AL11 L=120 |
1 | ||
| 90980-07173 |
AL11 L=270 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07119 |
AL11 L=320 |
1 | ||
| 90980-07173 |
AL11 L=270 |
1 | ||
| 90980-07156 |
AL11 L=280 |
1 | ||
| 90980-07162 |
AL11 L=300 |
1 | ||
| 90980-07178 |
AL11 L=120 |
1 | ||
| 90980-07173 |
AL11 L=270 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07119 |
AL11 L=320 |
1 | ||
| 90980-07173 |
AL11 L=270 |
1 | ||
| 90980-07156 |
AL11 L=280 |
1 | ||
| 90980-07162 |
AL11 L=300 |
1 | ||
| 90980-07178 |
AL11 L=120 |
1 | ||
| 90980-07173 |
AL11 L=270 |
1 | ||

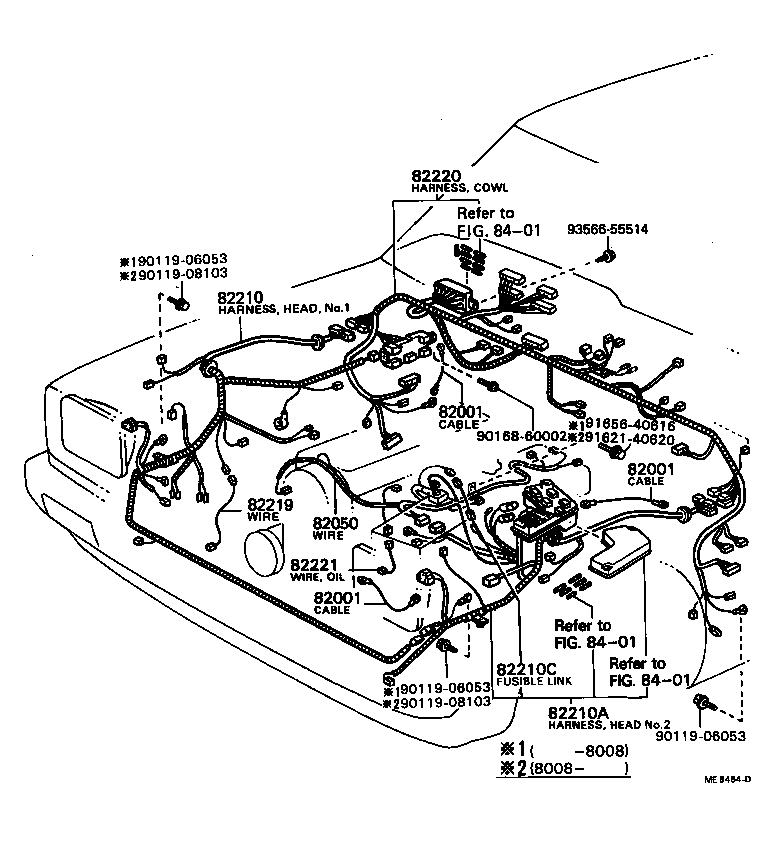

| 82050 - WIRE ASSY, ENGINE | ||||
| 82050-16030 |
AL11..MTM |
1 | ||
| 82050-16110 |
AL11..MTM |
1 | ||
| 82210 - HARNESS ASSY, WIRING COWL TO HEADLAMP, NO.1 | ||||
| 82210-16220 |
AL11..EUR |
1 | ||
| 82230-16050 |
AL11..EUR |
1 | ||
| 82210-16070 |
AL11..EUR |
1 | ||
| 82210A - HARNESS ASSY, WIRING COWL TO HEADLAMP, NO.2 | ||||
| 82210-16100 |
AL11..EUR W/RELAY BLOCK |
1 | ||
| 82210-16270 |
AL11..EUR W/RELAY BLOCK |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08077 |
AL11 L=110 |
1 | ||
| 90982-08120 |
AL11 L=110 |
1 | ||
| 82219 - WIRE, THERMO SENSOR | ||||
| 82219-16010 |
AL11 |
1 | ||
| 82220 - HARNESS ASSY, WIRING COWL | ||||
| 82220-16080 |
AL11..EUR |
1 | ||
| 82220-16190 |
AL11..EUR |
1 | ||
| 82221 - WIRE, OIL PRESSURE SWITCH | ||||
| 82221-16010 |
AL11 |
1 | ||
| Common parts | ||||
| 90119-06053 | ||||
| 90119-08103 | ||||
| 90168-60002 | ||||
| 91621-40620 | ||||
| 91656-40616 | ||||
| 93566-55514 | ||||
| Linked diagrams | ||||
| 8401 | ||||
(8008- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

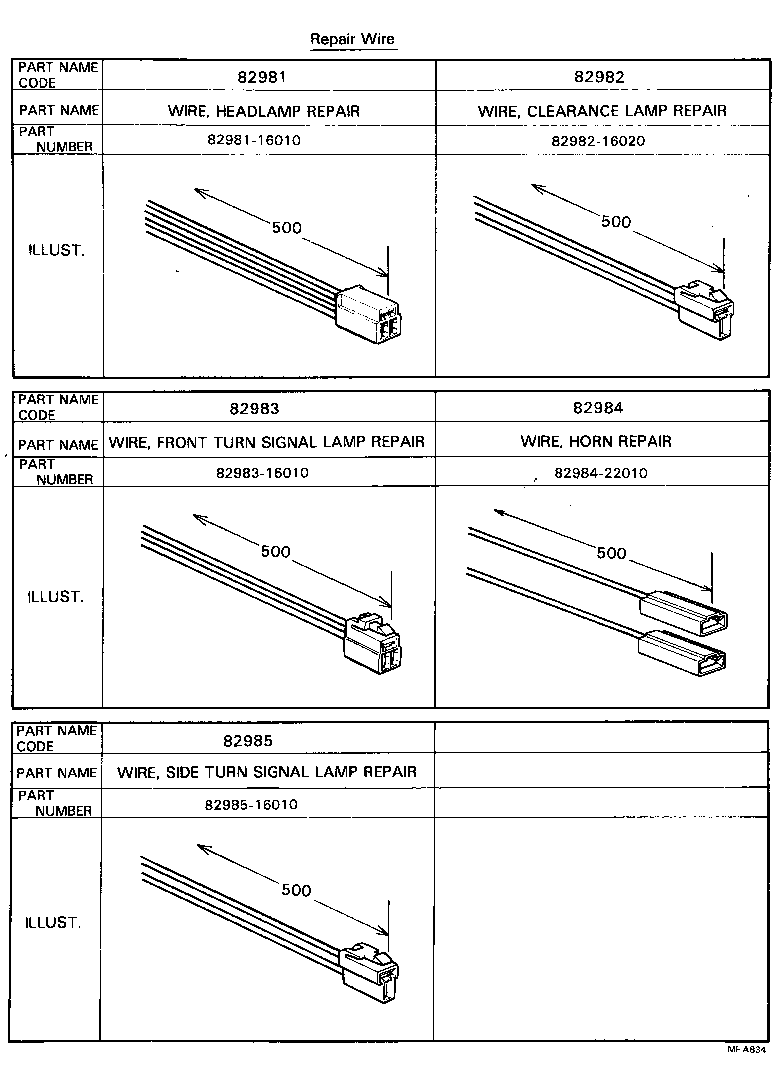

| 82981 - WIRE, HEADLAMP REPAIR | ||||
| 82981-16010 |
AL11 |
1 | ||
| 82982 - WIRE, CLEARANCE LAMP REPAIR | ||||
| 82982-16020 |
AL11 |
1 | ||
| 82983 - WIRE, FRONT TURN SIGNAL LAMP REPAIR | ||||
| 82983-16010 |
AL11 |
1 | ||
| 82984 - WIRE, HORN REPAIR | ||||
| 82984-22010 |
AL11 |
1 | ||
| 82985 - WIRE, SIDE TURN SIGNAL LAMP REPAIR | ||||
| 82985-16010 |
AL11 |
1 | ||
| Common parts | ||||
| 82981-16010 | ||||
| 82982-16020 | ||||
| 82983-16010 | ||||
| 82984-22010 | ||||
| 82985-16010 | ||||
