AL11L-ZDMRSW (1979)
Toyota Tercel
Production
Jan 1979
-
Apr 1982
Engine
2A
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7901- )

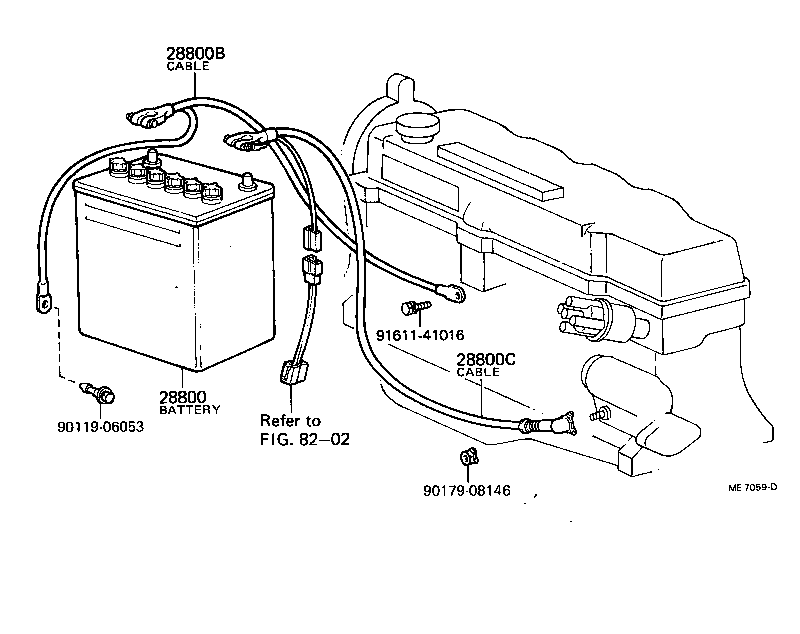

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28800 - BATTERY | ||||
| 28800-33111 |
2A..AL11..EUR 55D26R,N50Z |
1 | ||
| 28800-14010 |
2A..AL11..EUR 55D23R,55D 23R |
1 | ||
| 28800-33071 |
2A..AL11 32C24R,N40 |
1 | ||
| 28800B - CABLE, BATTERY TO GROUND | ||||
| 90982-02182 |
2A..AL11 L=660 |
1 | ||
| 90982-02214 |
2A..AL11 L=660 |
1 | ||
| 28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH) | ||||
| 90982-01268 |
2A..AL11 L=470 |
1 | ||
| 90982-01288 |
2A..AL11 L=550 |
1 | ||
| 90982-01381 |
2A..AL11..EUR L=550 |
1 | ||
| Common parts | ||||
| 90119-06053 | ||||
| 90179-08146 | ||||
| 91611-41016 | ||||
| Linked diagrams | ||||
| 8202 | ||||
