AL11L-ZDMRSW (1979)

Toyota Tercel

Production Jan 1979 - Apr 1982
Engine 2A
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7901- )

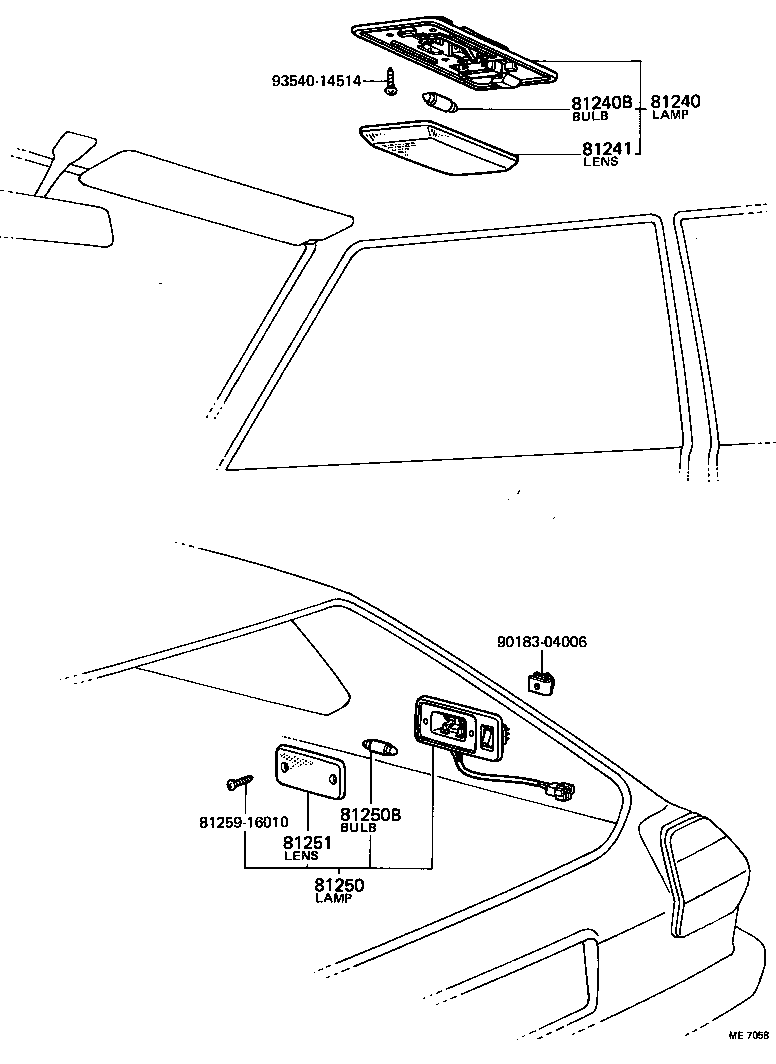

Click highlighted areas on diagram

diagram 81240 81240B 81241 81250 81250B 81251 8125916010 9018304006 9354014514
Part # Description Qty Price
81240 - LAMP ASSY, ROOM, NO.1
81240-1601004

AL11

BLUE,BLUE,TRIM8#

 1
81240-1601003

AL11

GRAY,GRAY,TRIM2#

 1
81240-1601008

AL11

IVORY,IVORY,TRIM2#,4#,8#

 1
81240-1601005

AL11

BEIGE,BEIGE,TRIM4#

 1
81240B - BULB, ROOM LAMP, NO.1
99132-12100

AL11

12V 10W,12V 10W

 1
81241 - LENS, ROOM LAMP, NO.1
81241-16010

AL11

 1
Common parts
81259-16010
90183-04006
93540-14514
